Brother DCP-8152DN User Manual

3-43
Confidential

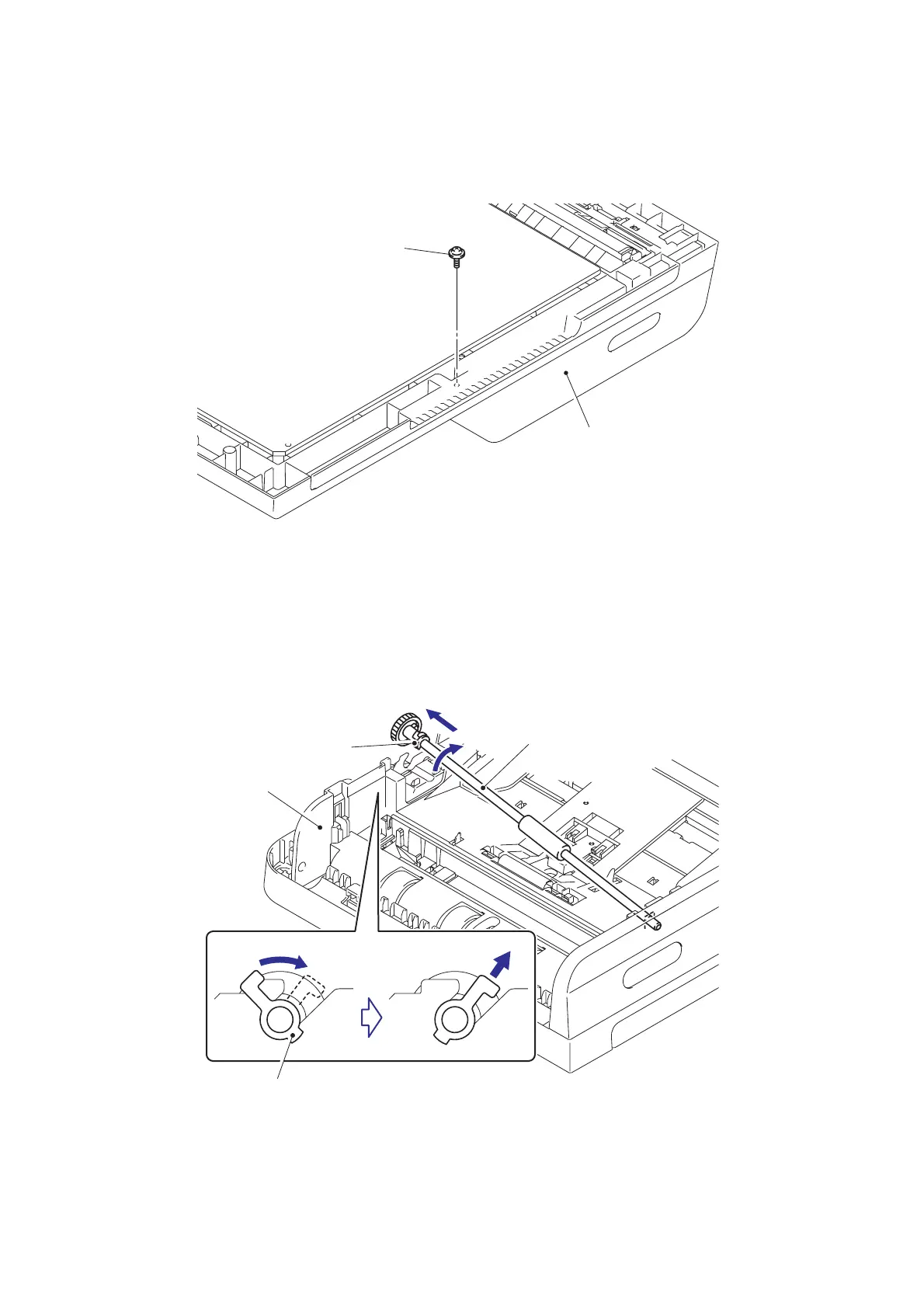

9.9.10 Upper ADF chute
(1) Reverse the ADF unit.
(2) Remove the taptite cup B M3x10 screw from the ADF unit.
Fig. 3-46
(3) Turn the ADF unit back to the normal direction.
(4) Turn the conductive bushing in the direction of the arrow to release the lock. (Duplex
scanning models only)
(5) Remove the other end of the conductive bushing to remove the document feed roller
ASSY 2 from the ADF unit. (Duplex scanning models only)
Fig. 3-47
Upper ADF chute
Taptite cup B M3x10
Document feed roller ASSY 2
ADF unit
Conductive bushing
Conductive bushing

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
