1.3.7 Check LCD operation (function code: 12)
<Function>
This function is used to check that the LCD on the control panel is operating normally.
<Operation Procedure>
(1) Press the [1] and [2] buttons in this order in the initial state of maintenance mode. The LCD
appears as in <Display 1> in the table below.
(2) Each press of the [Start] button cycles through the screens as shown in the table below.
(3) When the [Stop/Exit] button is pressed, the machine returns to the initial state of
maintenance mode, regardless of the display status.

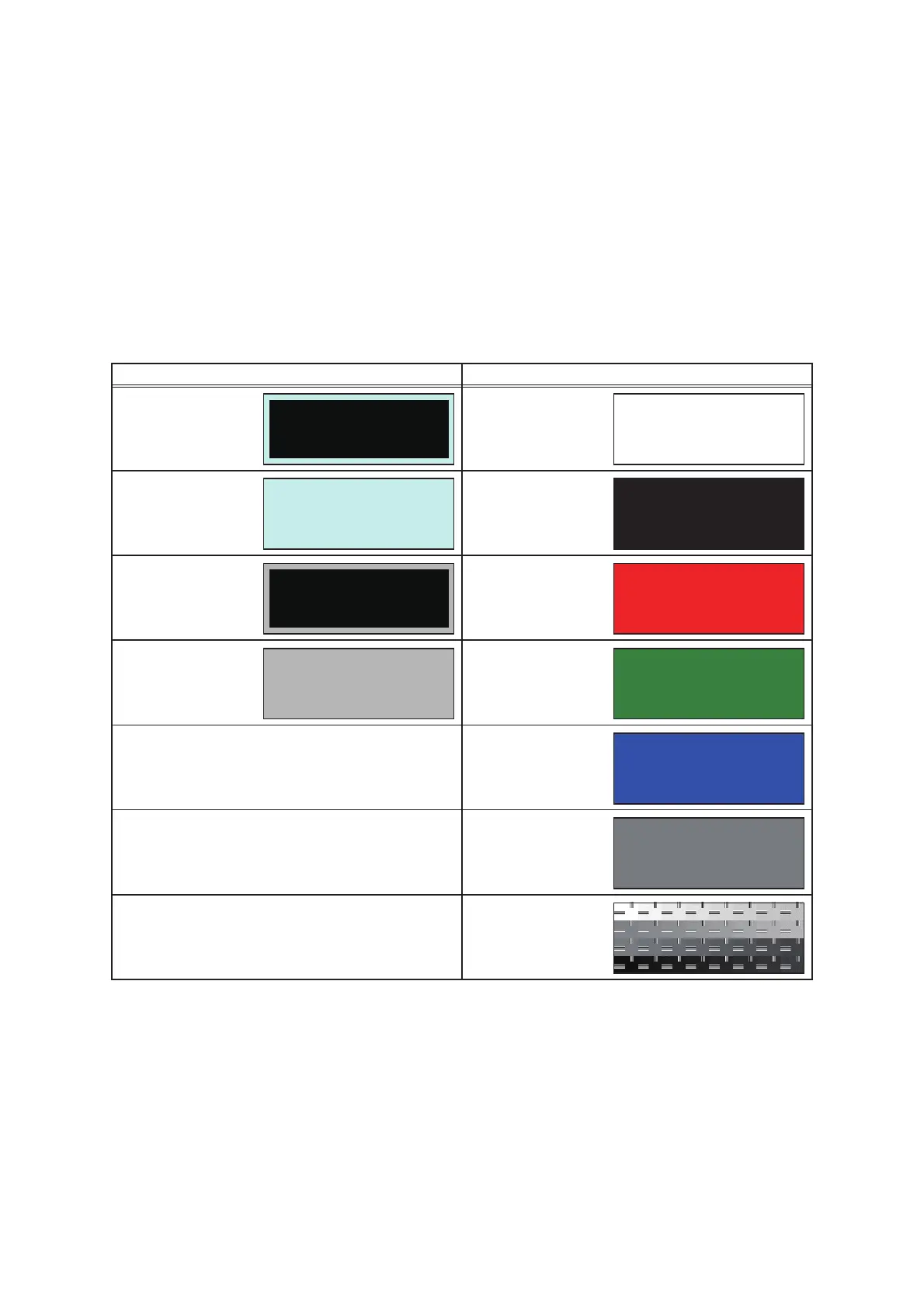

Fig. 5-4
Non touch panel model Touch panel model
<Display 1>
Backlight : ON
LCD: Complete black
<Display 1>
Complete white
<Display 2>
Complete black
<Display 3>
Complete red
<Display 4>
Complete green
<Display 5>
Complete blue
<Display 6>
Complete gray
<Display 7>
Stroke detection
screen
<Display 2>
Backlight : ON
LCD: Complete white
<Display 3>
Backlight : OFF
LCD: Complete black
<Display 4>
Backlight : OFF
LCD: Complete white

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
