Brother DCP-8152DN User Manual

3-60
Confidential

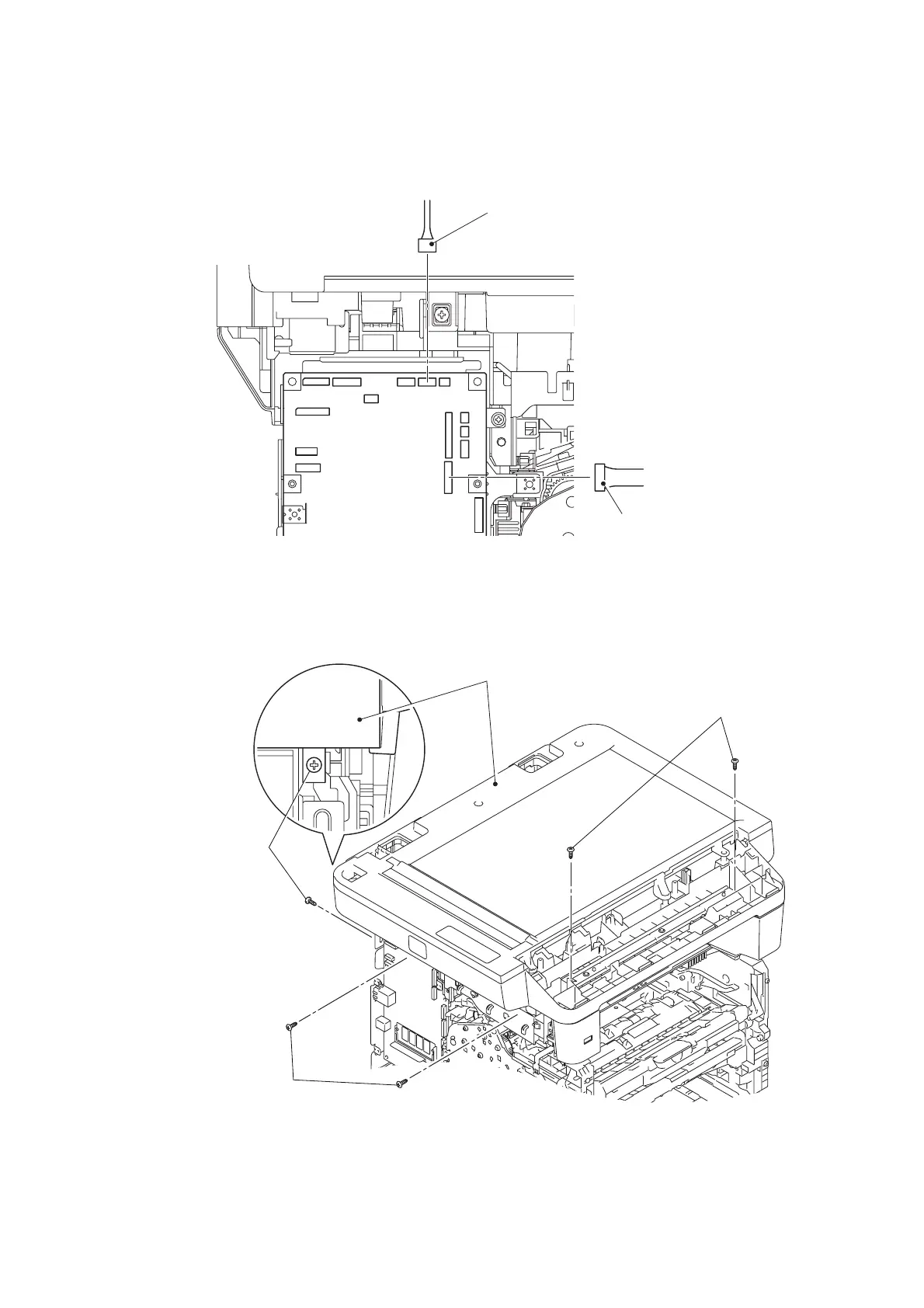

9.11 Document scanner unit
(1) Disconnect the document scanner motor harness and the panel PCB harness, and
release these harnesses from the securing fixtures.
Fig. 3-79
Harness routing: Refer to “1.Main PCB ASSY” and “10.Panel PCB ASSY” .
(2) Remove the five taptite bind B M4x12 screws from the document scanner unit.
Fig. 3-80
Panel PCB harness
Document scanner motor harness
Taptite bind B M4x12
Document scanner unit
Taptite bind B M4x12
Taptite bind B M4x12

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
