3-91
Confidential
9.28 Develop joint gear 37 / Develop joint
(1) Tilt the develop joint to remove it from the drive sub ASSY, and then remove the develop
joint spring from the drive sub ASSY.
(2) Pull out the develop joint gear 37 from the drive sub ASSY.

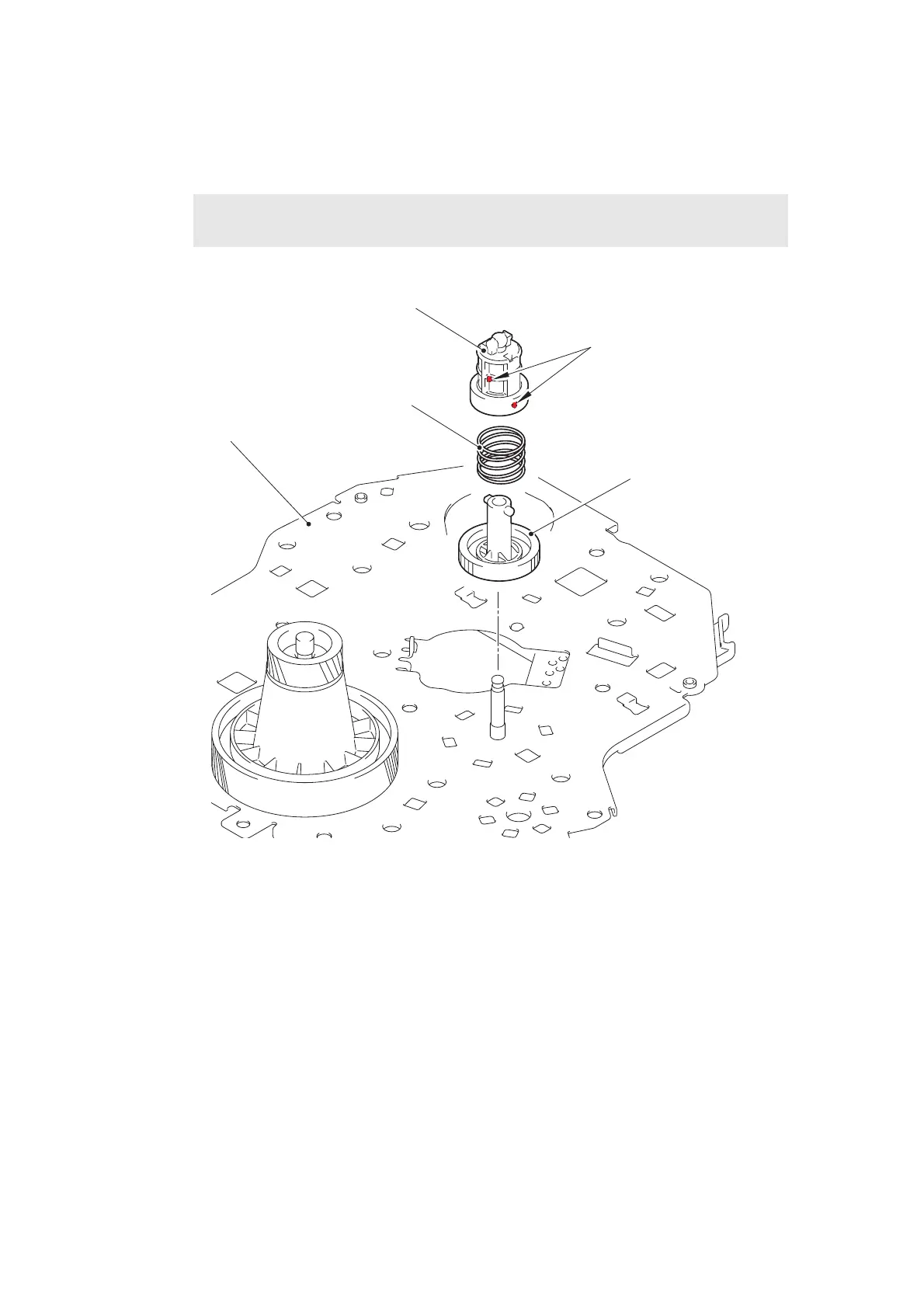

Fig. 3-120
Note:
• When removing the develop joint, be careful not to damage the hooks.
Hooks
Drive sub ASSY
Develop joint gear 37
Develop joint spring
Develop joint
To Next Page
