7-4

Confidential

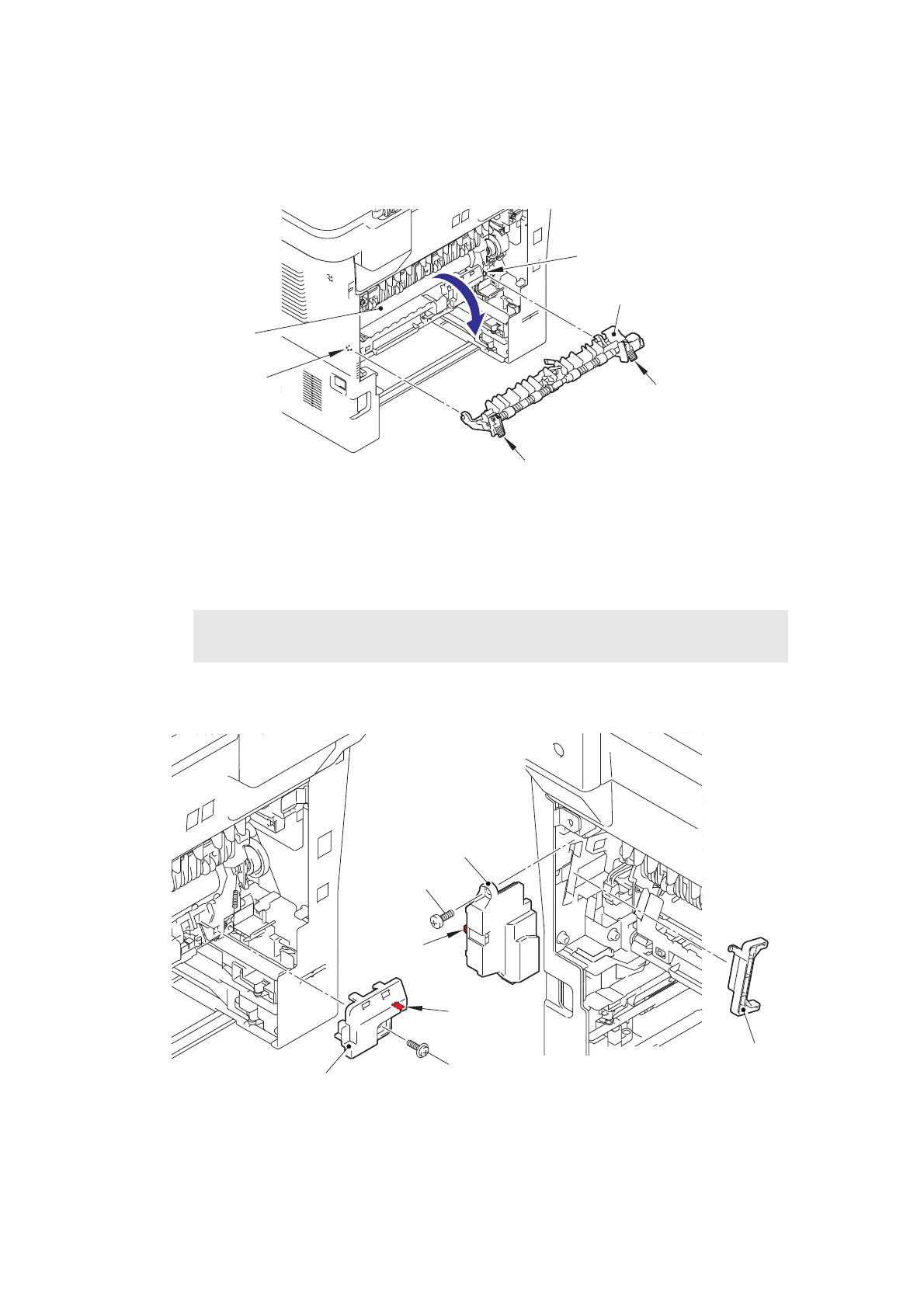

(5) Push the two knobs on the fuser cover, and pull the fuser cover down in the direction of

the arrow.

(6) Remove the fuser cover from the bosses on the fuser unit, and remove the fuser cover

from the machine.

Fig. 7-4

(7) Remove the taptite bind B M4x12 screw, and release the hook to remove the fuser unit

line cover R from the machine.

(8) Remove the rear nip release link from the machine.

(9) Remove the taptite pan B M4x14 screw, and release the hook to remove the fuser unit

line cover L from the machine.

Fig. 7-5

Note:

• Make sure that the front cover is open when removing the rear nip release link.

Fuser cover

Knob

Fuser unit

Boss

Knob

Boss

Taptite pan B M4x14

Taptite bind B M4x12

Fuser unit line cover R

Hook

Fuser unit line cover L

Rear nip release link
