Brother DCP-8152DN User Manual

3-123
Confidential

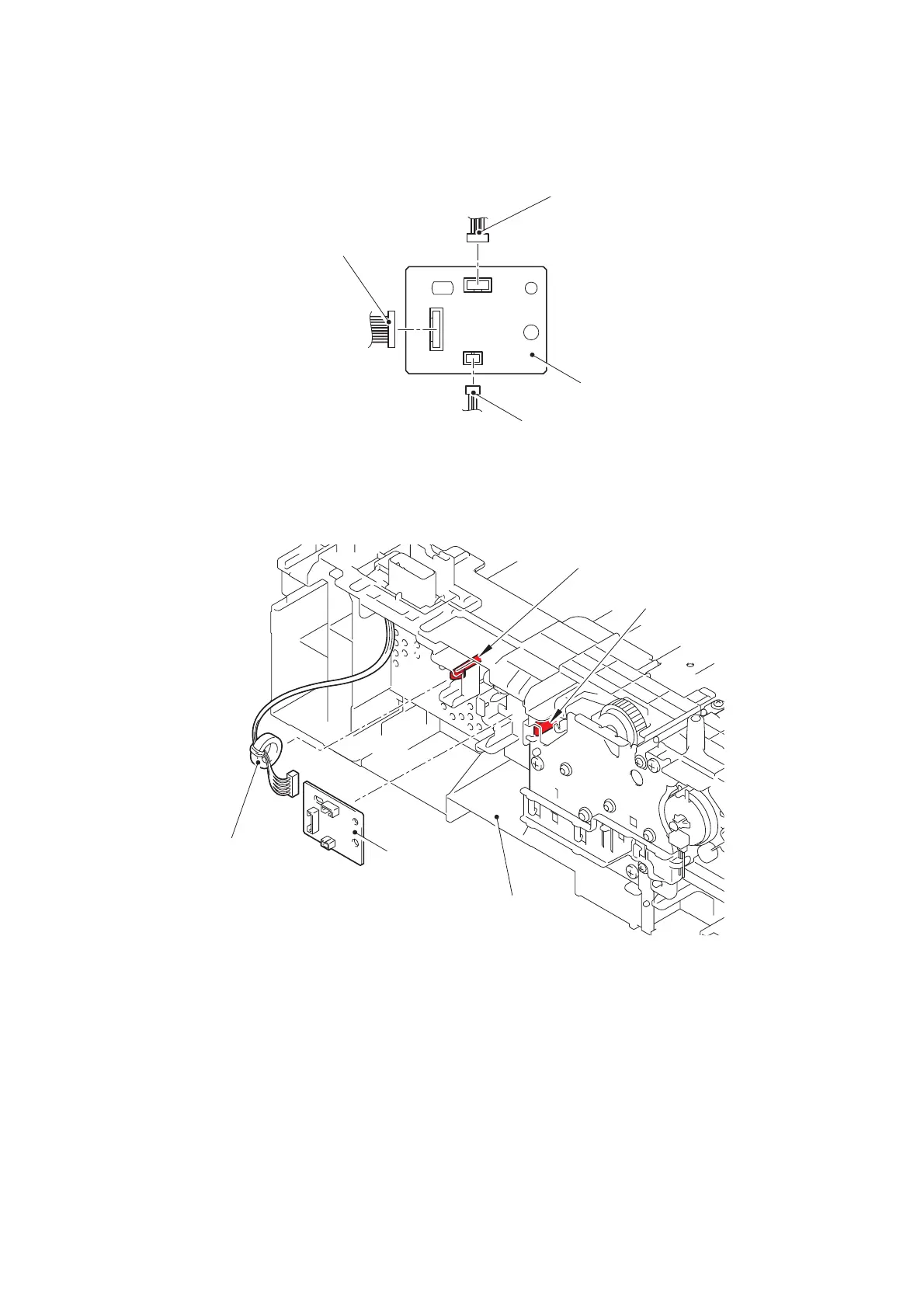

10.6 T2 relay PCB ASSY
(1) Disconnect all harnesses from the T2 relay PCB ASSY.
Fig. 3-154
(2) Release the hook to remove the core of the LT connector ASSY (T2) from the LT unit.
(3) Release the hook to remove the T2 relay PCB ASSY from the LT unit.
Fig. 3-155
T2 paper feed sensor harness
T2 relay PCB ASSY
T2 clutch harness
LT harness
LT unit
Core
T2 relay
PCB ASSY
Hook
Hook

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
