3-23

Confidential

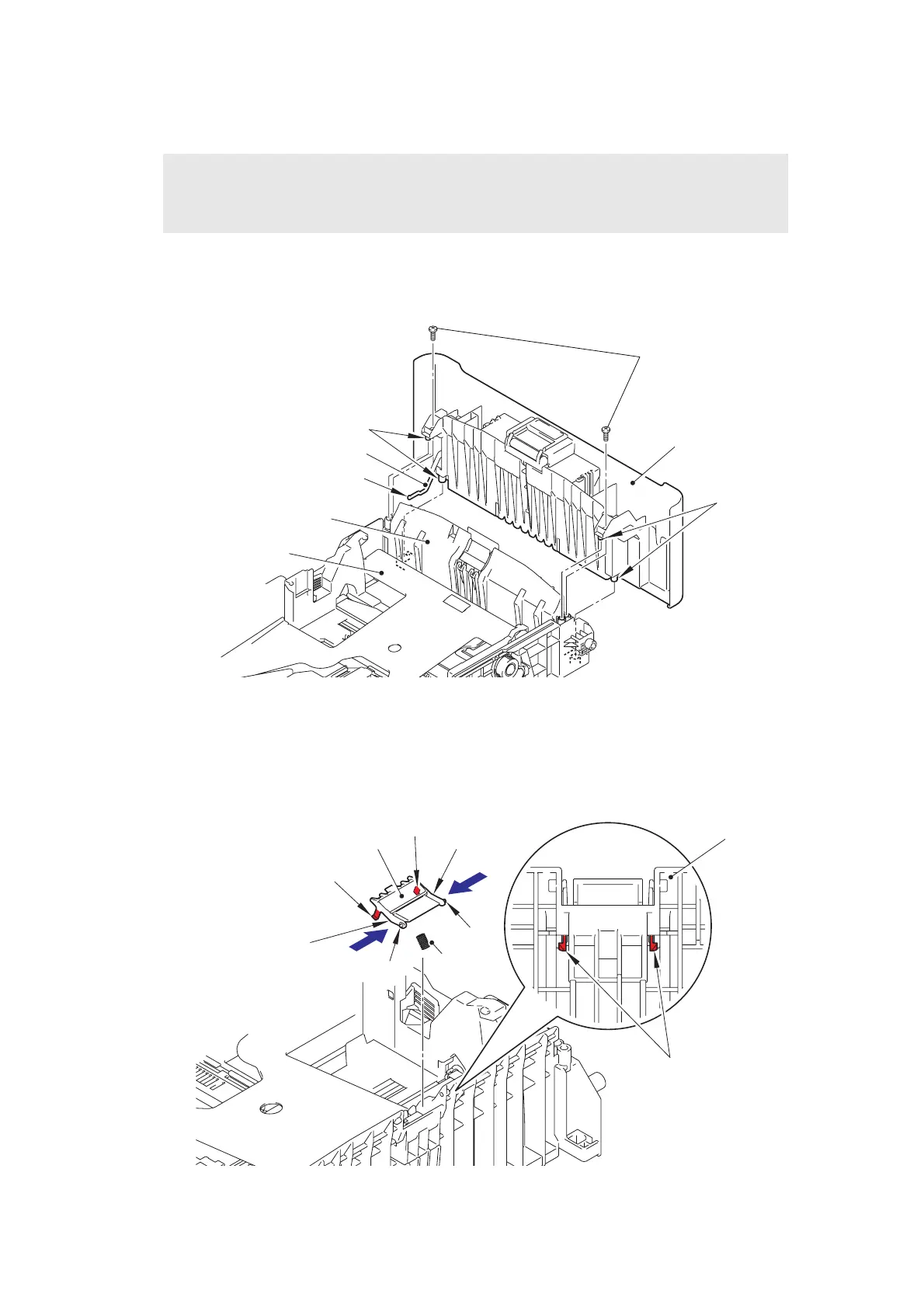

9.2 Paper tray 1

(1) Remove the two taptite bind B M4x12 screws from the paper tray 1.

(2) Lift the plate to remove "A" on the T1 tray indicator from the plate, remove the four

bosses, and then remove the T1 tray cover from the paper tray 1.

Fig. 3-14

(3) Release the two hooks on the T1 separation pad ASSY from the paper tray 1.

(4) Push both arms of the T1 separation pad ASSY in the direction of the arrows to remove

both pins, and then remove the T1 separation pad ASSY from the paper tray 1.

(5) Remove the T1 separation pad spring from the T1 separation pad ASSY.

Fig. 3-15

Note:

• Paper tray 1 (250 sheets, 500 sheets): T1, Paper tray 2 (500 sheets): T2

• The illustration shows paper tray 1 (500 sheets).

Taptite bind B M4x12

T1 tray indicator

Paper tray 1

“A”

Plate

T1 tray cover

Bosses

T1 separation pad ASSY

Hook

Arm

T1 separation

pad spring

Hooks

Paper tray 1

Arm

Hook
