9.7 Side cover L / Access cover
(1) Remove the taptite bind B M4x12 screw from the front side of the side cover L.
(2) Remove the taptite bind B M4x12 screw from the back side of the side cover L.
(3) Keep the two front hooks held down, and rotate the side cover L in the direction of arrow
3b while pushing it in the direction of arrow 3a. Release the remaining six hooks, and
remove the side cover L from the machine.

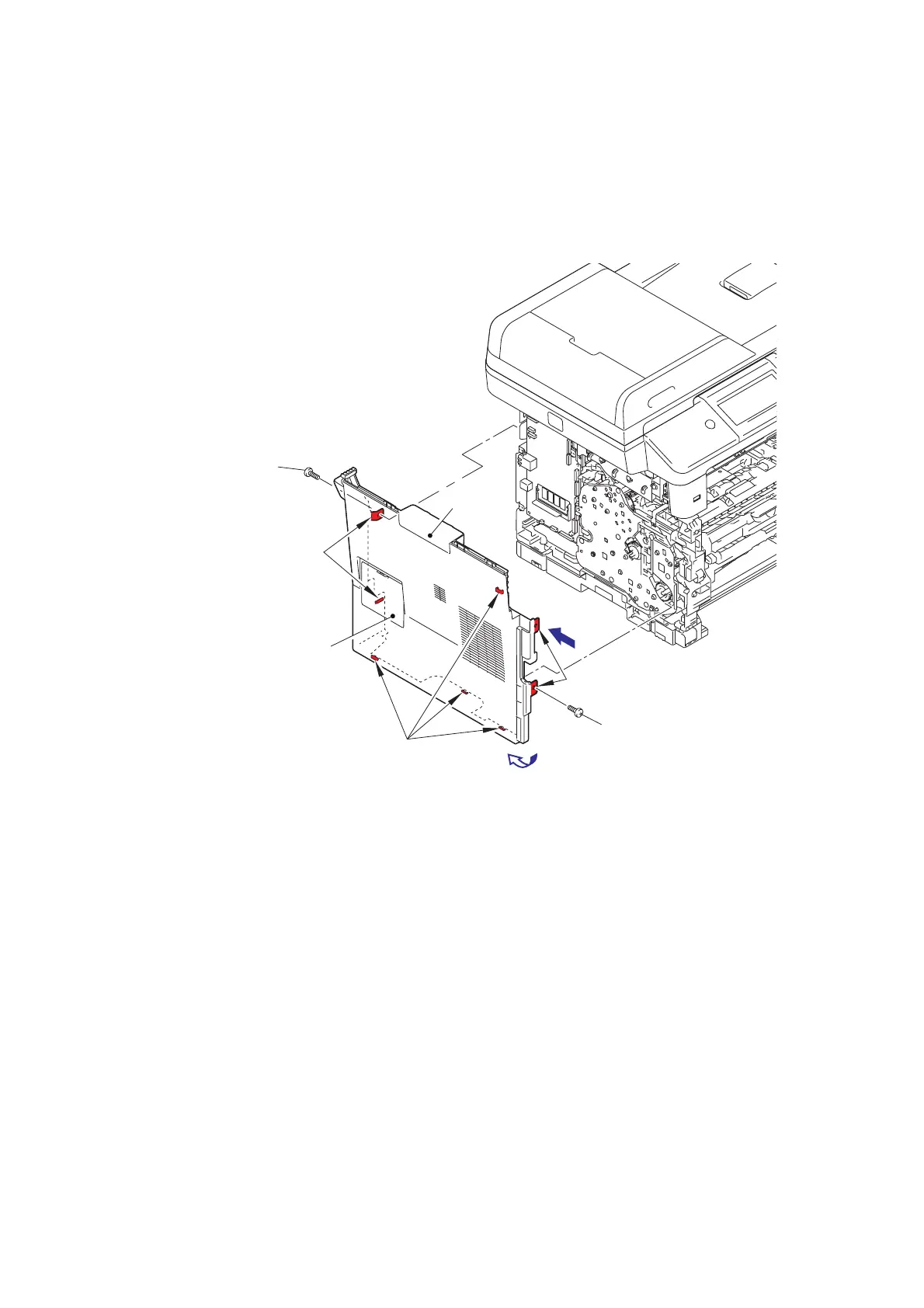

Fig. 3-24
(4) Release the hook, and remove the access cover from the side cover L.
Hooks
Taptite bind B M4x12
Access cover
Hooks
Taptite bind B M4x12
Side
cover L
Hooks
3a
3b
