9.11.1 First side CIS unit
(1) Remove the five taptite bind B M4x12 screws from the document scanner top cover
ASSY.
(2) Lift the back of the document scanner top cover ASSY, and slide it in the direction of
arrow 2 to remove it from the document scanner unit.

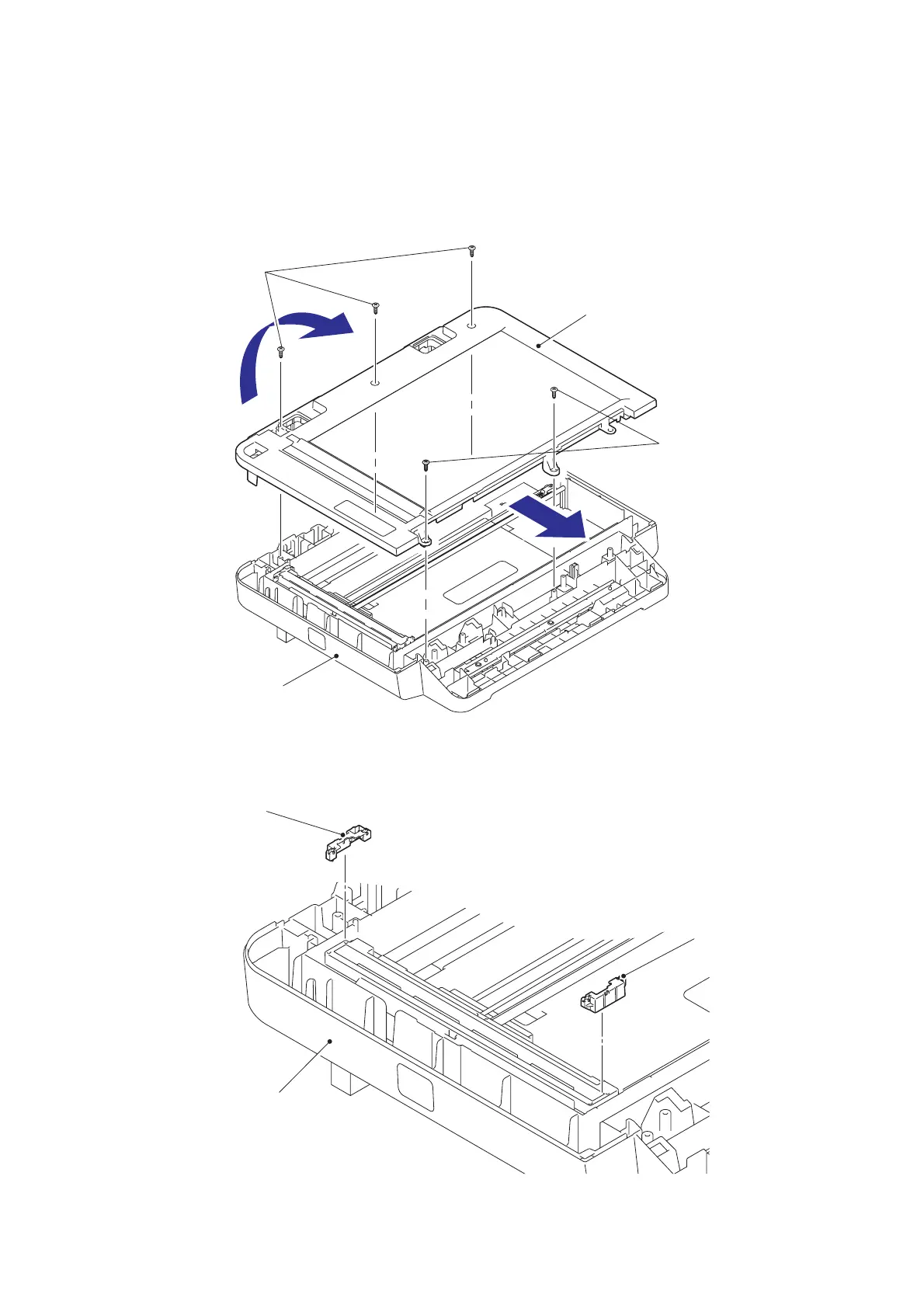

Fig. 3-82
(3) Remove the CIS guides L and R from the document scanner unit.
Fig. 3-83
Document scanner top cover ASSY
Taptite bind B M4x12
Taptite bind B M4x12
Document scanner unit
2
CIS guide L
CIS guide R
Document scanner unit

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
