(7) Turn the T2 paper feed actuator in the direction of arrow 7a, and push the hook on the
T2 paper feed actuator holder ASSY to slide the T2 paper feed actuator in the direction
of arrow 7b to remove it from the T2 paper feed actuator holder ASSY.
(8) Remove the T2 paper feed actuator spring from the T2 paper feed actuator.
(9) Release the T2 paper feed sensor harness from the T2 paper feed actuator holder
ASSY, and then release the hook to remove the T2 paper feed sensor PCB ASSY from
the T2 paper feed actuator holder ASSY.

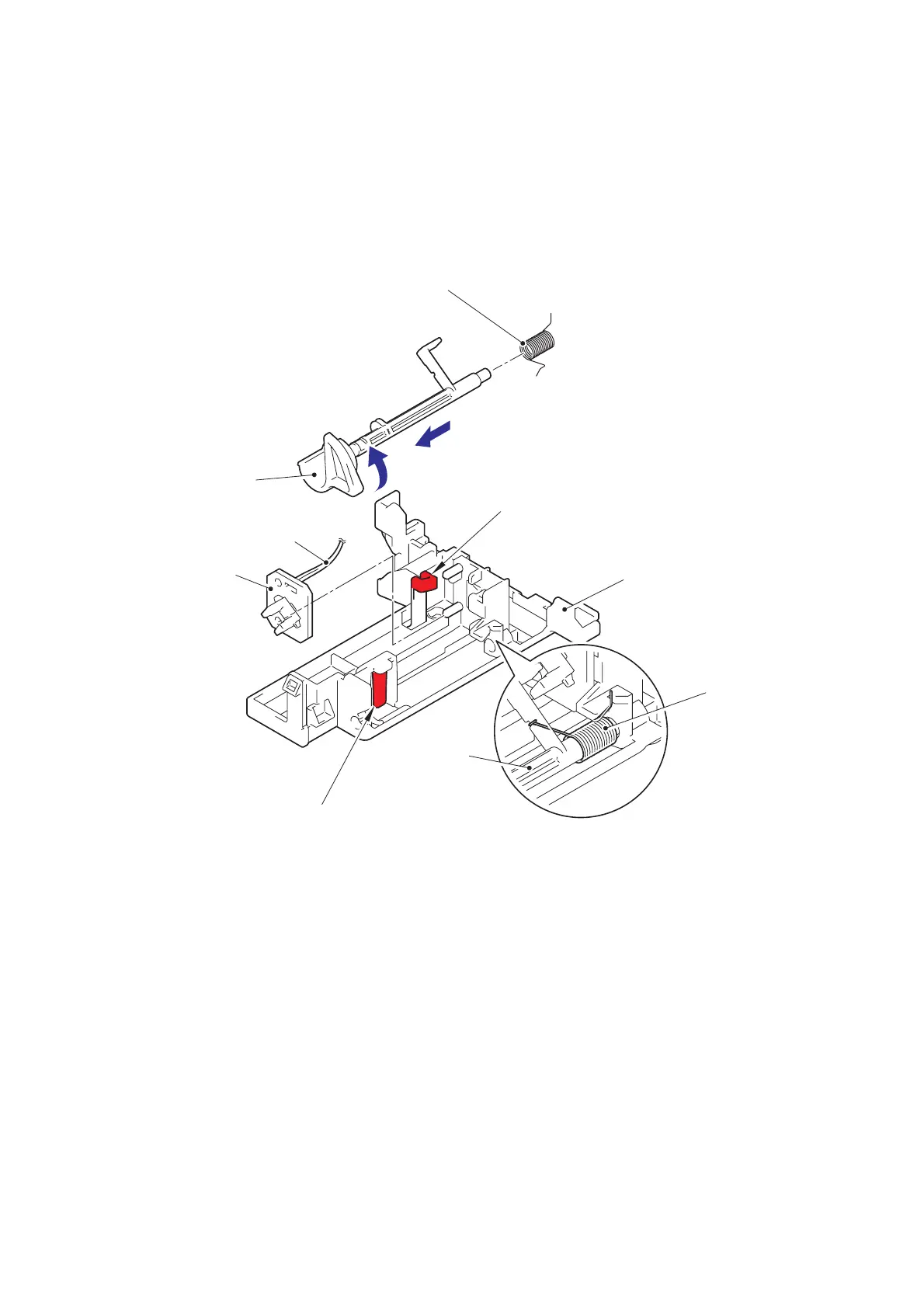

Fig. 3-162
7a
7b
T2 paper feed actuator
T2 paper feed actuator holder ASSY
T2 paper feed actuator spring
T2 paper feed
sensor harness
Hook
T2 paper feed
sensor PCB ASSY
Hook
T2 paper feed
actuator
T2 paper feed
actuator spring

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
