(3) Remove the two CIS spacers from both ends of the second side CIS unit.

(4) Peel the double-sided tape securing the second side CIS flat cable to the back of the

ADF unit.

(5) Lift the second side CIS unit to remove the second side CIS flat cable.

(6) Remove the two CIS springs from the ADF unit.

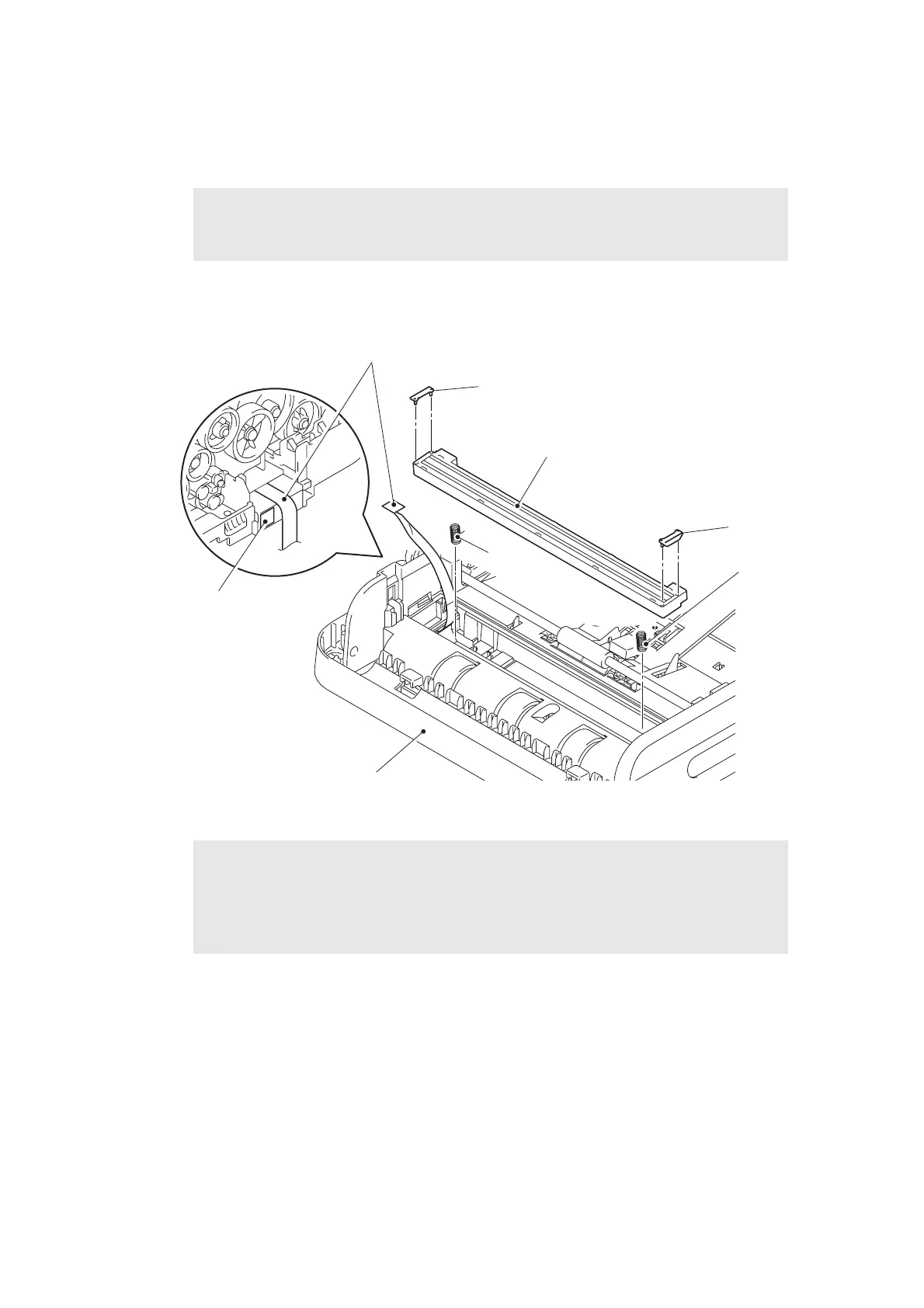

Fig. 3-45

Note:

• Once the double-sided tape is peeled from the second side CIS flat cable, replace

the tape with new tape.

Assembling Note:

• Once the second side CIS flat cable is removed, it cannot be secured with the

securing fixtures unless the lower ADF chute is removed. Refer to the Assembling

Note in "9.9.12 Drive frame ASSY / Document feed roller ASSY 1" to attach the

second side CIS flat cable.

Second side CIS unit

CIS spacer

CIS spring

CIS spacer

Second side CIS flat cable

Double-sided tape

ADF unit
