2.5 Main Components

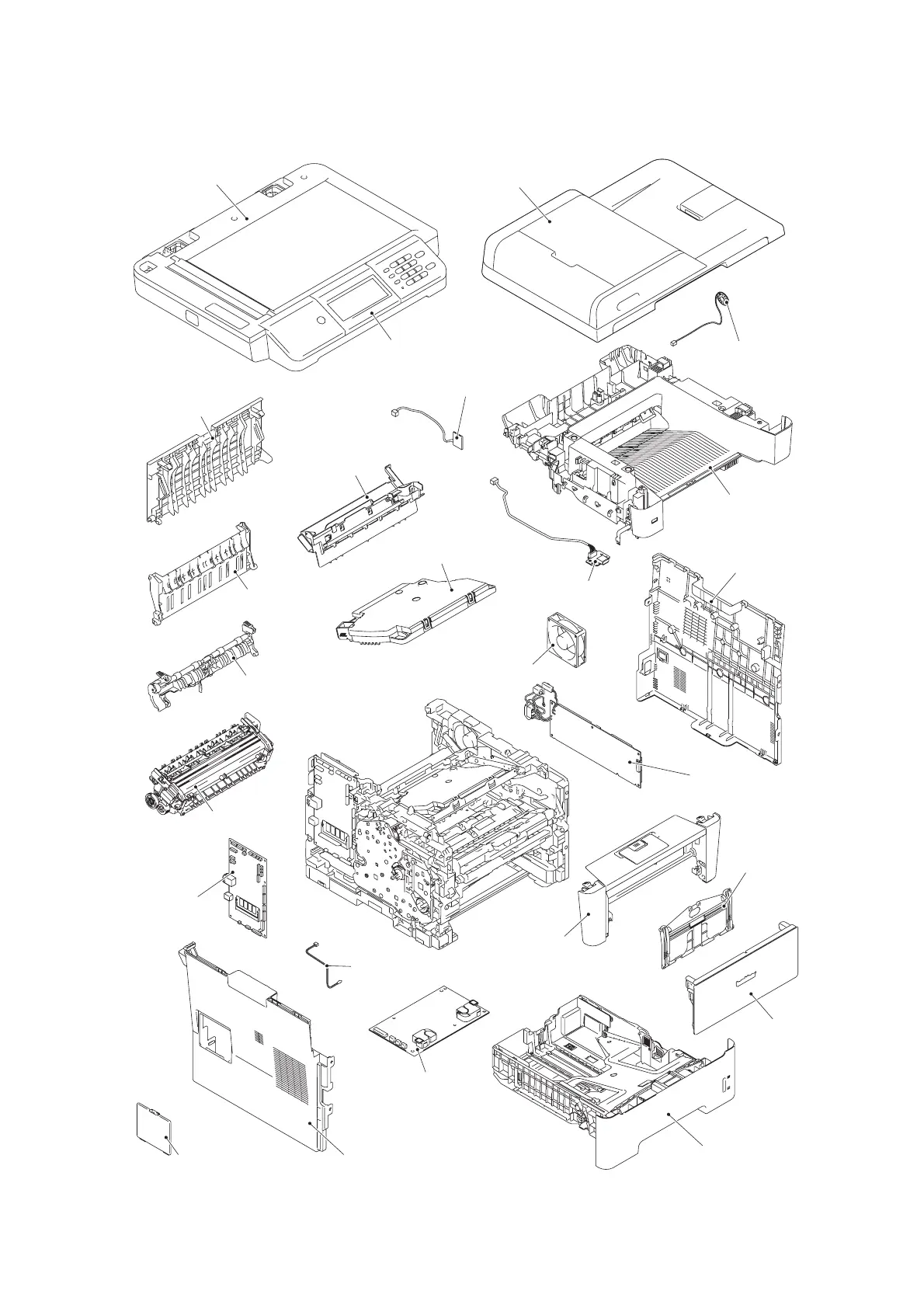

Fig. 2-8
Outer chute
ADF unit
Document scanner unit
Control panel ASSY
Wireless LAN PCB ASSY
Speaker unit
Joint cover
USB host PCB ASSY
Main fan
Side cover R ASSY
Laser unit
Air duct
Back cover
Fuser cover
Fuser unit
Main PCB
ASSY
Access cover
Side cover L
Paper tray 1
MP cover
ASSY
Front cover ASSY
Internal temperature
thermistor
High-voltage
power supply
PCB ASSY
Low-voltage
power supply
PCB ASSY
MP paper
guide ASSY

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
