Brother DCP-8152DN User Manual

3-104
Confidential
9.40 High-voltage power supply PCB ASSY

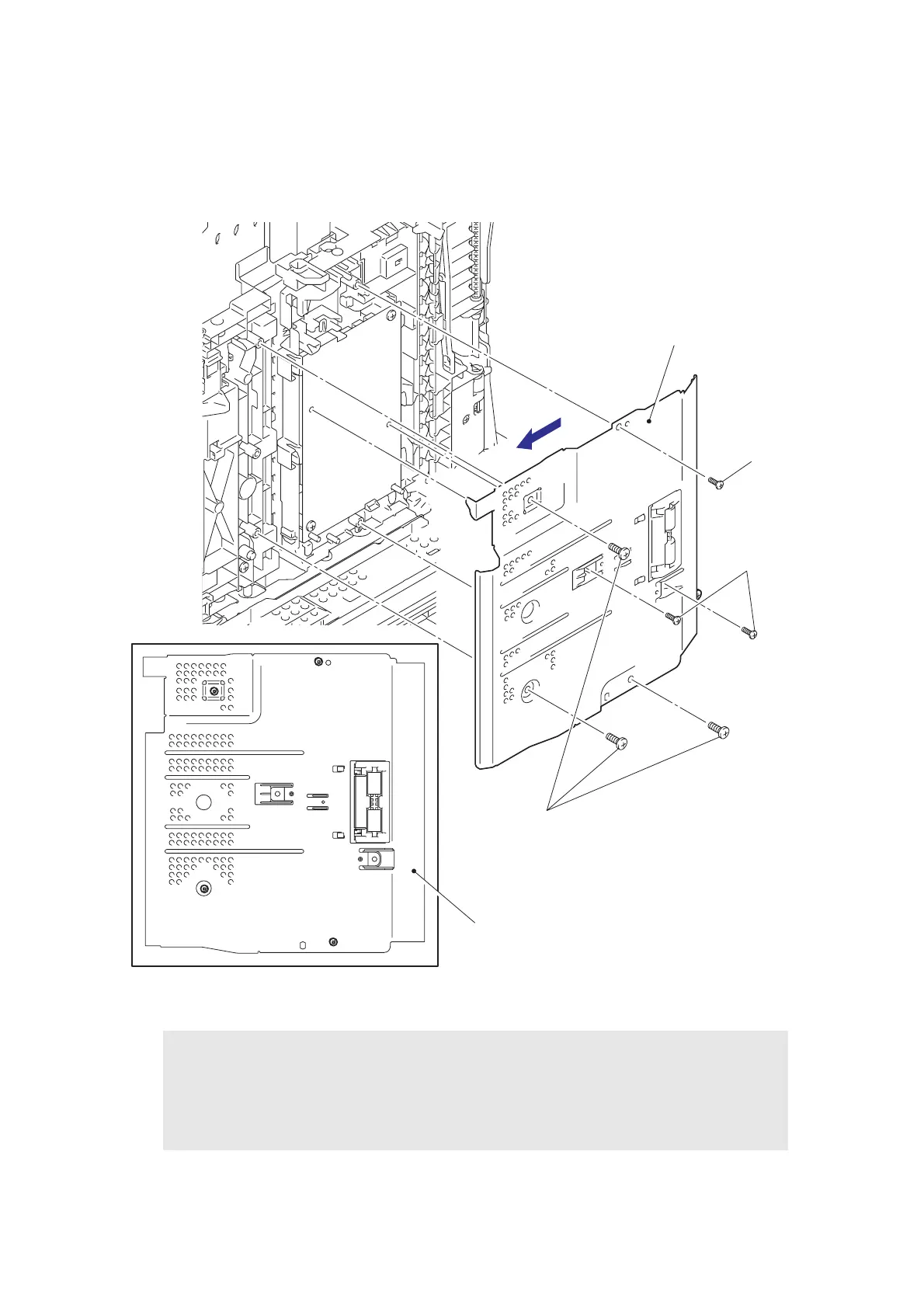

(1) Remove the four taptite bind B M4x12 screws and the two screw pan (S/P washer)
M3x12DB screws. Slightly lift the base plate and slide it in the direction of the arrow to
remove it from the machine.
Fig. 3-133
Assembling Note:
• Carefully attach the base plate, avoiding harnesses and flat cables get caught in the
base plate.
• When securing the base plate with screws, tighten the screws in the sequence of the
numbers engraved on the base plate.
Base plate
Screw pan
(S/P washer)
M3x12DB
Taptite bind B M4x12
1
2
3
4
Base plate
Taptite bind
B M4x12

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
