3-22
Confidential
9. DISASSEMBLY PROCEDURE
9.1 Preparation
Disconnecting Cables and Removing Accessories
Prior to proceeding with the disassembly procedure,
(1) Disconnect the following:
•AC cord
• USB cable (if connected)
• LAN cable (if connected)
• Line cord (if connected)
(2) Remove the following:
• Paper tray 1
• Toner cartridge and drum unit
• Duplex tray
•LAN port cap

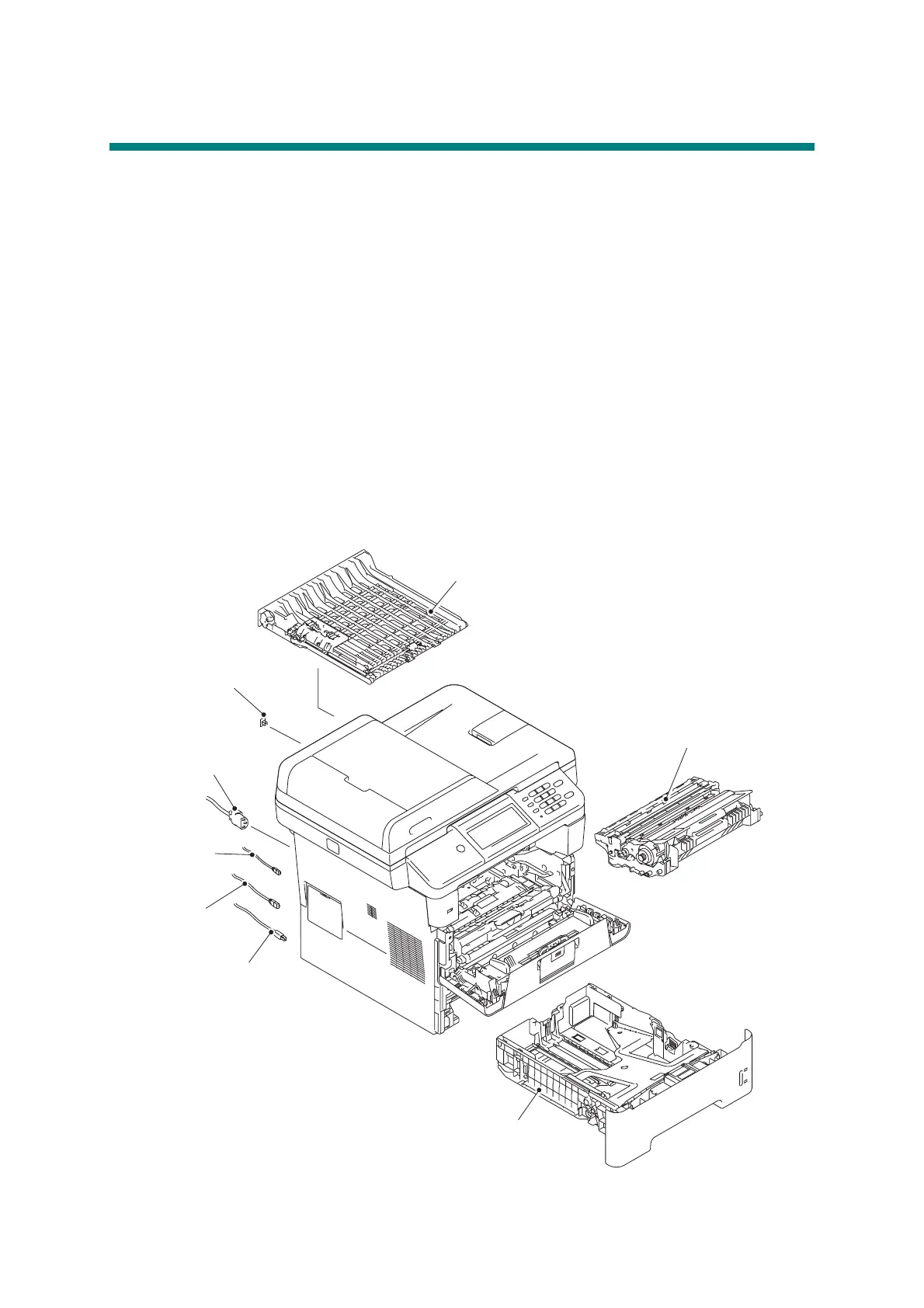

Fig. 3-13
AC cord
USB cable
LAN cable
Paper tray 1
Toner cartridge and drum unit
Duplex tray
LAN port cap
Line cord
To Next Page
