Brother DCP-8152DN User Manual

3-45
Confidential
9.9.11 ADF cover/document detection sensor PCB ASSY / First side document
scanning position sensor PCB ASSY / Second side document scanning
position sensor PCB ASSY (duplex scanning models only)

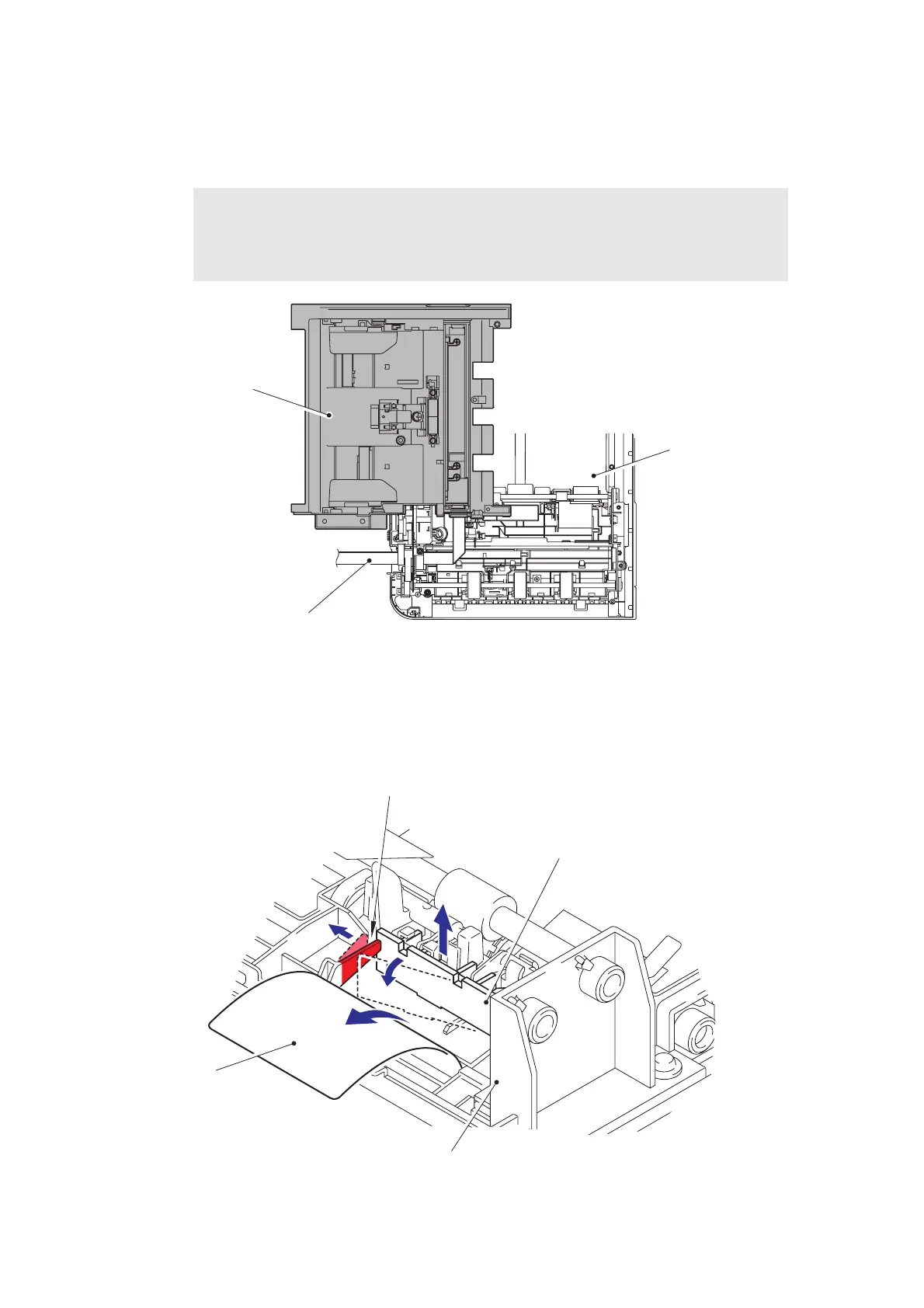

Fig. 3-49
(1) Open the shading film 1, and push the rib to open it. Remove the ADF cover/document
detection sensor PCB ASSY from the lower ADF chute.
(2) Disconnect the ADF cover/document detection sensor harness from the ADF cover/
document detection sensor PCB ASSY.
Fig. 3-50
Memo:
• For duplex scanning models, these parts can be replaced without disassembling
the second side CIS unit. In this case, move the upper ADF chute to the position
shown in the illustration below to make replacement easier.
ADF unit
Upper ADF chute
Second side CIS flat cable
ADF cover/document detection sensor PCB ASSY
Shading film 1
Lower ADF chute
Rib

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
