(3) Push the rib to open it, and remove the first side document scanning position sensor
PCB ASSY from the lower ADF chute.
(4) Remove the first side document scanning position sensor harness from the first side
document scanning position sensor PCB ASSY.
(5) Open the shading film 2, push the rib to open it, and remove the second side document
scanning position sensor PCB ASSY from the lower ADF chute. (Duplex scanning
models only)
(6) Remove the second side document scanning position sensor harness from the second
side document scanning position sensor PCB ASSY.

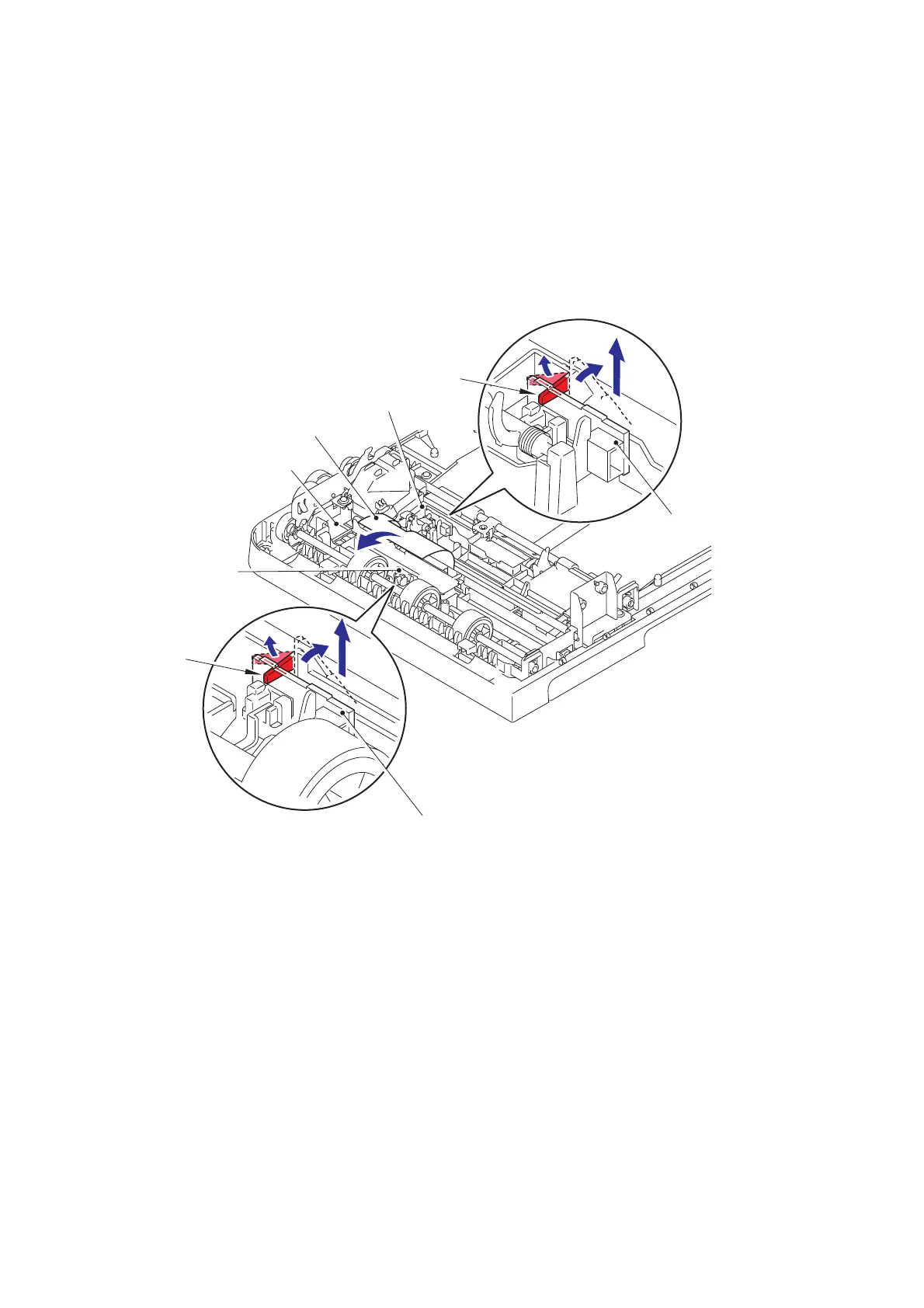

Fig. 3-51
Second side document scanning
position sensor PCB ASSY
Rib
Second side document scanning
position sensor PCB ASSY
Lower ADF chute
First side document
scanning position
sensor PCB ASSY
Rib
First side document scanning position sensor PCB ASSY
Shading film 2

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
