3-70

Confidential

9.16 NCU PCB ASSY

(1) Remove the screw pan (S/P washer) M3.5x6 DA screw and washer 5 to remove the

NCU earth harness. Release the NCU harness and the NCU earth harness from the

securing fixtures.

(2) Remove the two taptite bind B M4x12 screws to remove the NCU unit from the joint

cover.

(3) Remove the screw pan (S/P washer) M3.5x6 DA screw and washer 5 to remove the

NCU shield cover.

(4) Remove the two taptite cup S M3x6 SR screws to remove the NCU PCB ASSY.

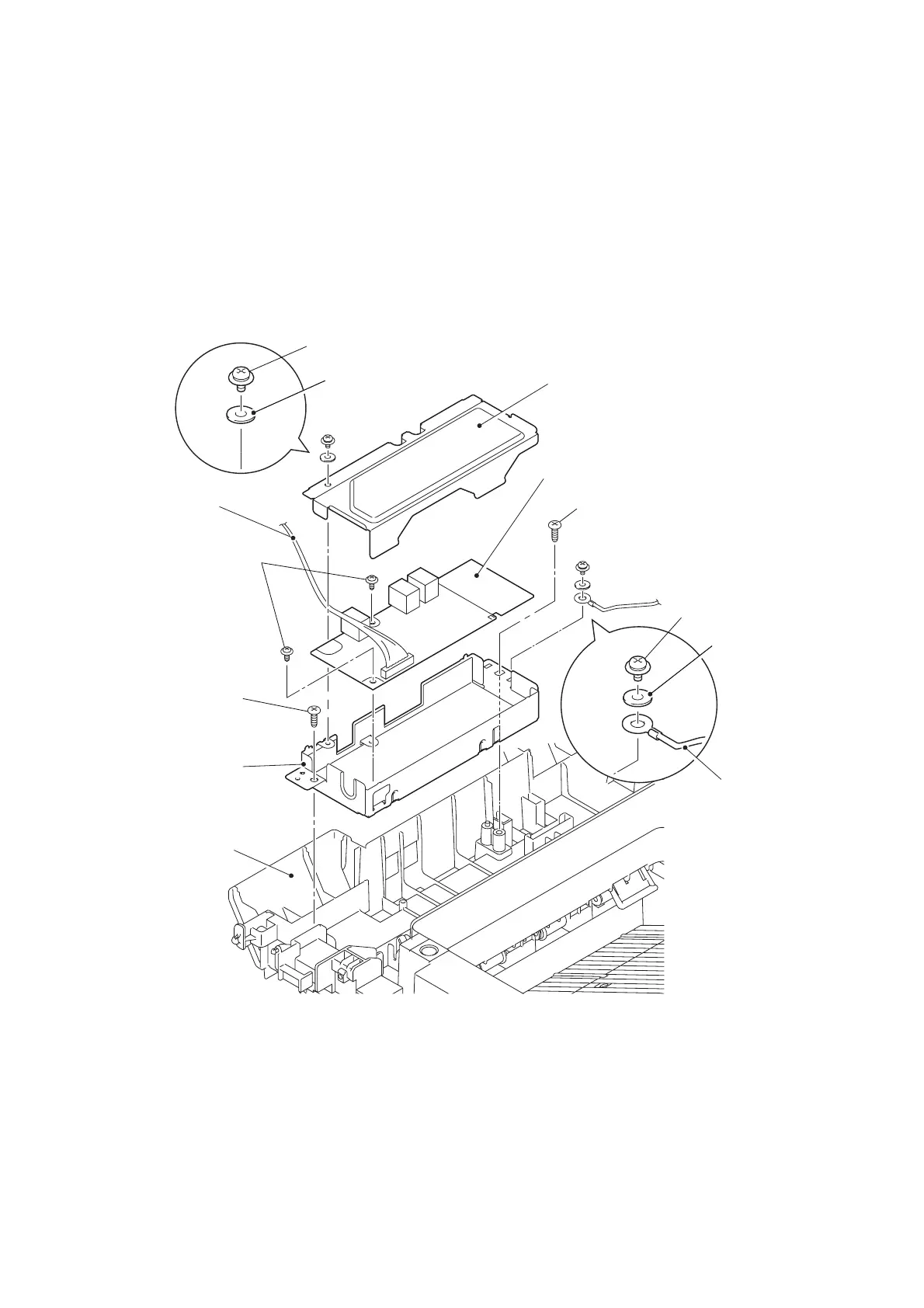

Fig. 3-96

Harness routing: Refer to “8.NCU PCB ASSY / Speaker unit”.

NCU shield cover

Screw pan (S/P washer)

M3.5x6 DA

Taptite cup S M3x6 SR

Taptite bind B M4x12

NCU unit

Joint cover

Screw pan (S/P washer)

M3.5x6 DA

NCU PCB ASSY

NCU earth harness

NCU harness

Taptite bind B M4x12

Washer 5
