2-4
Confidential
2. OVERVIEW

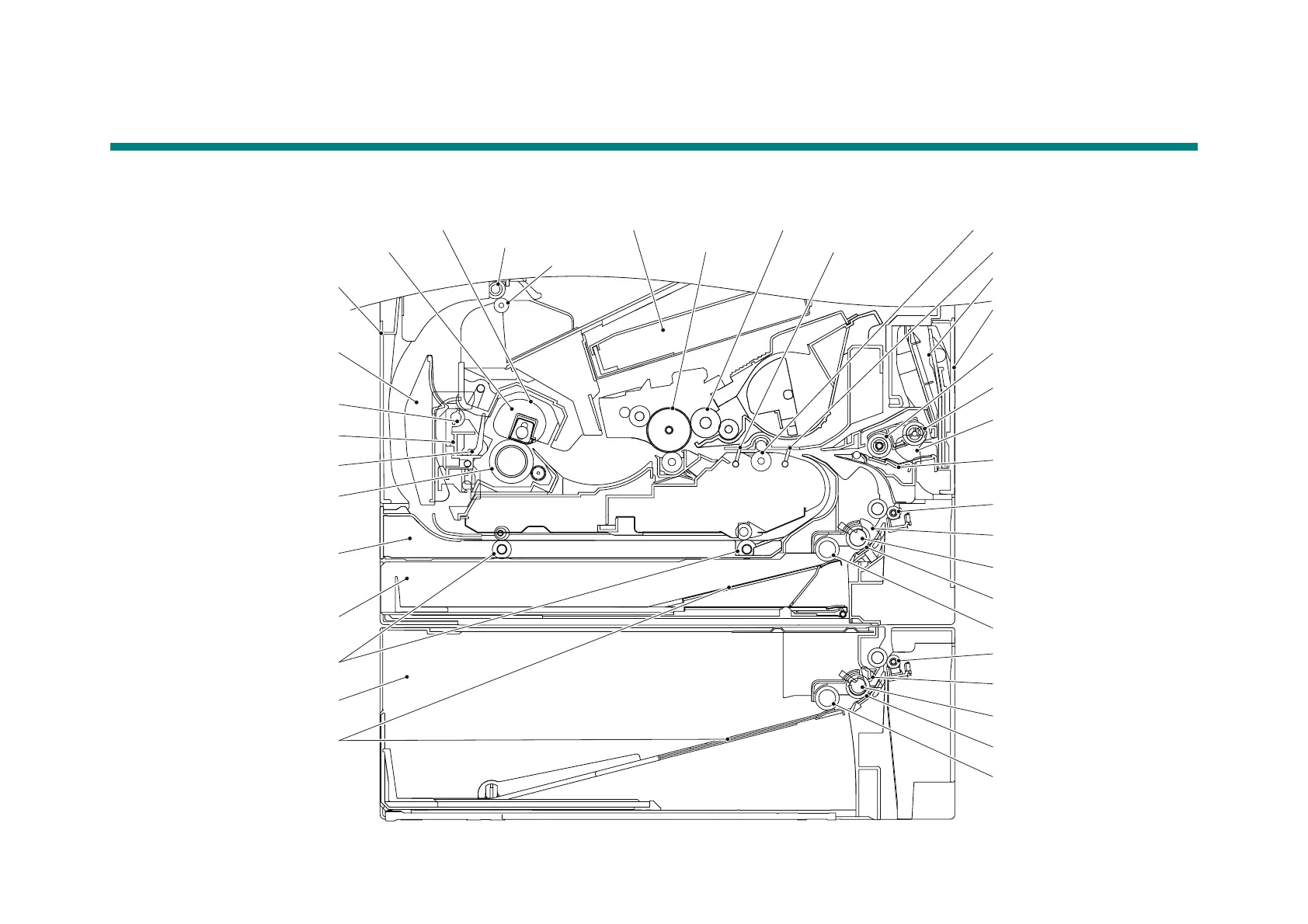

2.1 Cross-section Drawing
2.1.1 Printer part
Fig. 2-1
MP tray
Back cover
Front cover
MP separation roller
MP pick-up roller
MP paper empty actuator 1/2
MP separation pad
T1 paper feed actuator
T1 separation roller
T1 separation pad
T1 pick-up roller
Outer chute
Eject roller 1
Fuser cover
Eject actuator
Pressure roller
Duplex tray
Paper tray 1
Duplex paper feed roller
Registration rear actuator
Developer roller
Exposure drum
Eject roller 2
Fuser unit
Heat unit Laser unit
Registration front actuator
<Back side> <Front side>
Plate
Paper tray 2
T2 paper feed actuator
T2 separation roller
T2 separation pad
T2 pick-up roller
T2 paper dust cleaning roller
T1 paper dust cleaning roller
Eject pinch roller
Registration roller
