9.5 MP cover ASSY

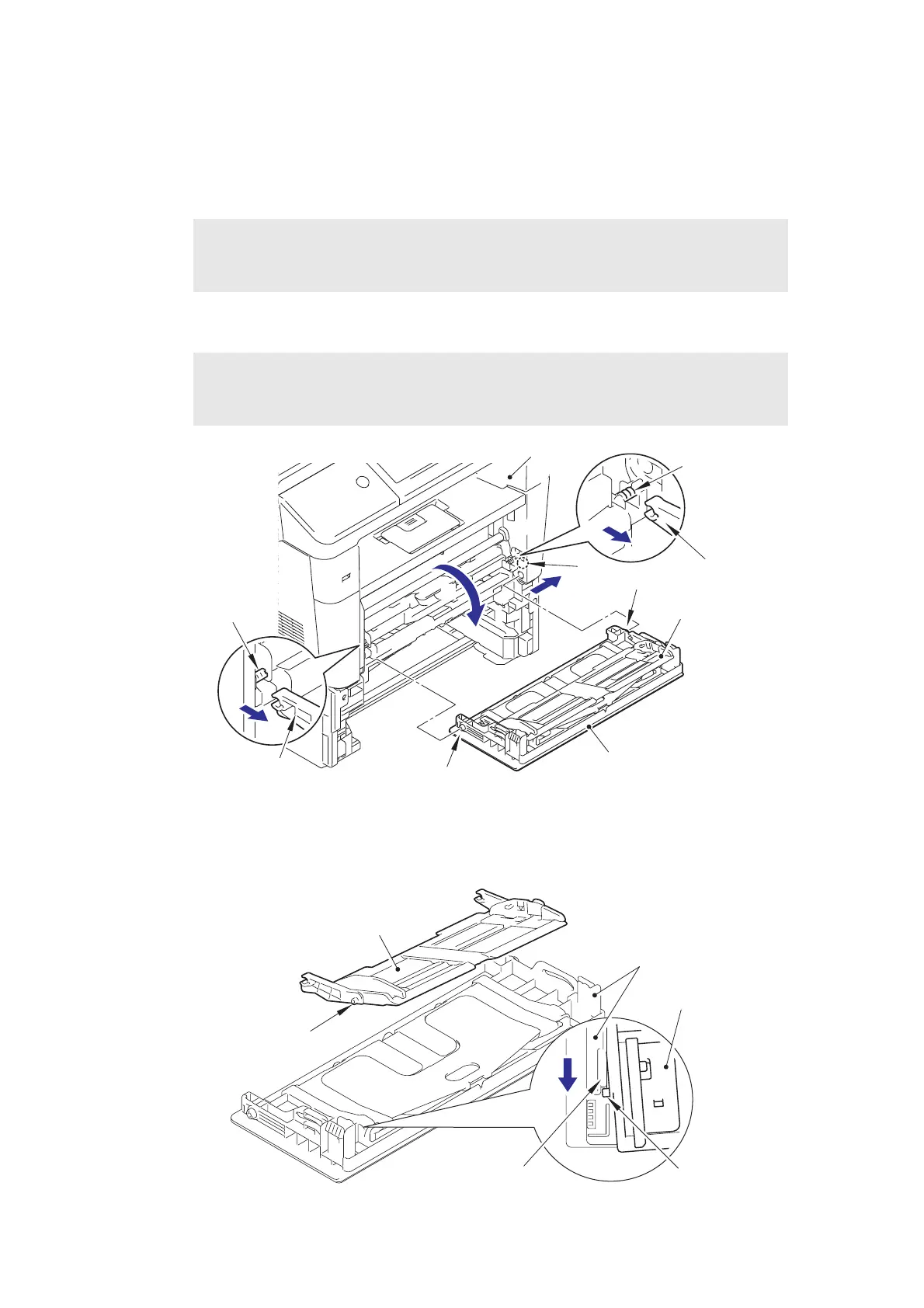

(1) Open the MP cover ASSY.

(2) Remove the two hooks on the MP paper guide ASSY from the two bosses on the front

cover ASSY.

(3) Remove the two bosses on the MP cover ASSY, and remove the MP cover ASSY from

the front cover ASSY.

Fig. 3-20

(4) Slide the left side of the MP paper guide ASSY in the direction of arrow 4, remove boss

B from the guide on the MP cover ASSY, and then remove the MP paper guide ASSY

from the MP cover ASSY.

Fig. 3-21

Note:

• When removing the MP paper guide ASSY from the bosses on the front cover

ASSY, pull it out strongly in the direction of arrow 2.

Note:

• Remove the MP cover ASSY while pushing "A" on the front cover ASSY in the

direction of arrow 3.

Front cover ASSY

Boss

MP paper guide ASSY

MP cover ASSY

Hook

(MP paper guide ASSY)

Boss

“A”

Boss

Hook

(MP paper guide ASSY)

MP cover ASSY

MP paper guide ASSY

Boss B

Guide

Boss B
