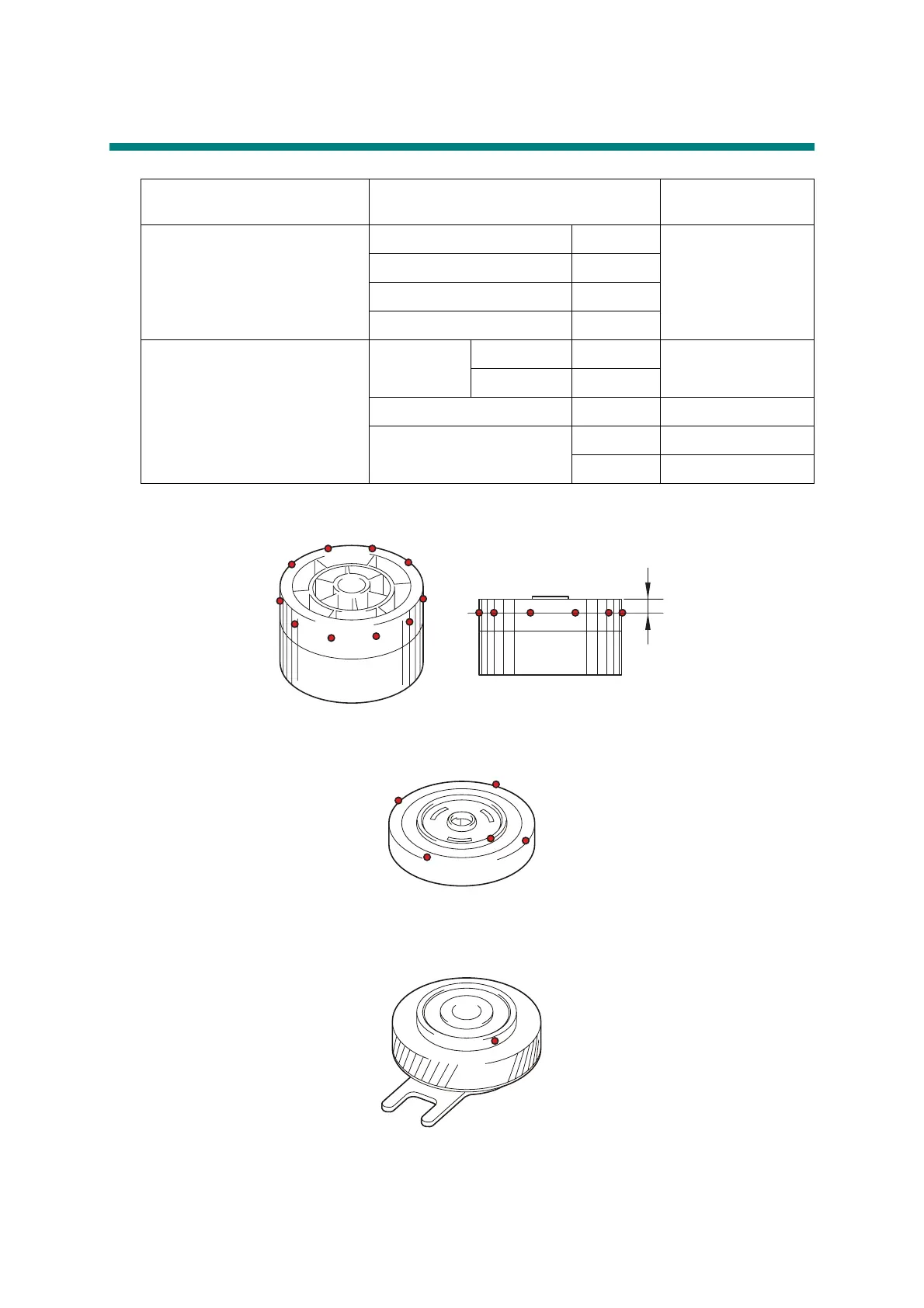

5. LUBRICATION
Fuser drive gear 39
Fig. 3-1
Develop one way clutch 53
Fig. 3-2
Develop clutch 51R
Fig. 3-3
Lubricating oil type
(Maker name)
Lubrication point
Quantity of
lubrication
FLOIL BG-10KS (Kanto Kasei)
Fuser drive gear 39 10 places
1.5 mm dia. ball
Develop one way clutch 53 5 places
Develop clutch 51R 1 places
Develop joint gear 37 4 places
BDX-313A (Kanto Kasei)
Document
scanner unit
Legal model 16 places
1.5 mm dia. ball
A4 model 14 places
Hinge ASSY L 9 places 2.0 mm dia. ball
Hinge R
4 places 2.5 mm dia. ball
2 places 3.5 mm dia. ball
3mm
