Brother DCP-8152DN User Manual

3-98
Confidential
9.35 Fuser drive gear 39

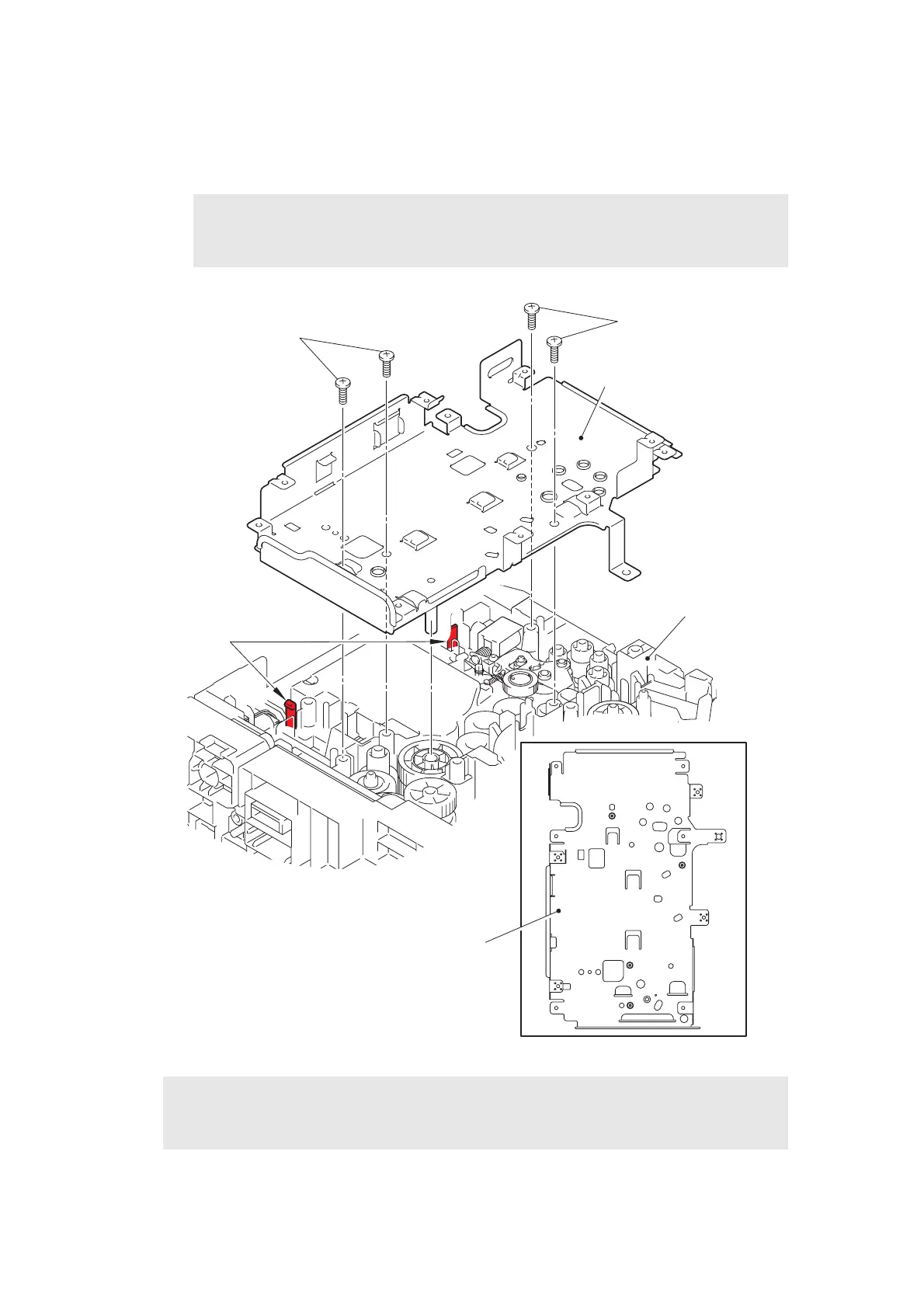

(1) Remove the four taptite bind B M4x12 screws, and release the two hooks to remove the
main PCB shield calking ASSY from the main frame L ASSY.
Fig. 3-127
Note:
• Do not allow the metallic gear shaft of the main PCB shield calking ASSY to face
down. Failure to observe this may cause the steel plate to be bend.
Assembling Note:
• When securing the main PCB shield calking ASSY with screws, tighten the screws in
the sequence of the numbers engraved on the main PCB shield calking ASSY.
Taptite bind B M4x12
Taptite bind B M4x12
Main PCB shield calking ASSY
Main frame L ASSY
Hooks
2
4
1
3
Main PCB shield calking ASSY
