9.18 Fuser unit

(1) Remove the taptite bind B M4x12 screw, and release the hook to remove the fuser unit

line cover R from the machine.

(2) Remove the rear nip release link from the machine.

(3) Remove the taptite pan B M4x14 screw, and release the hook to remove the fuser unit

line cover L from the machine.

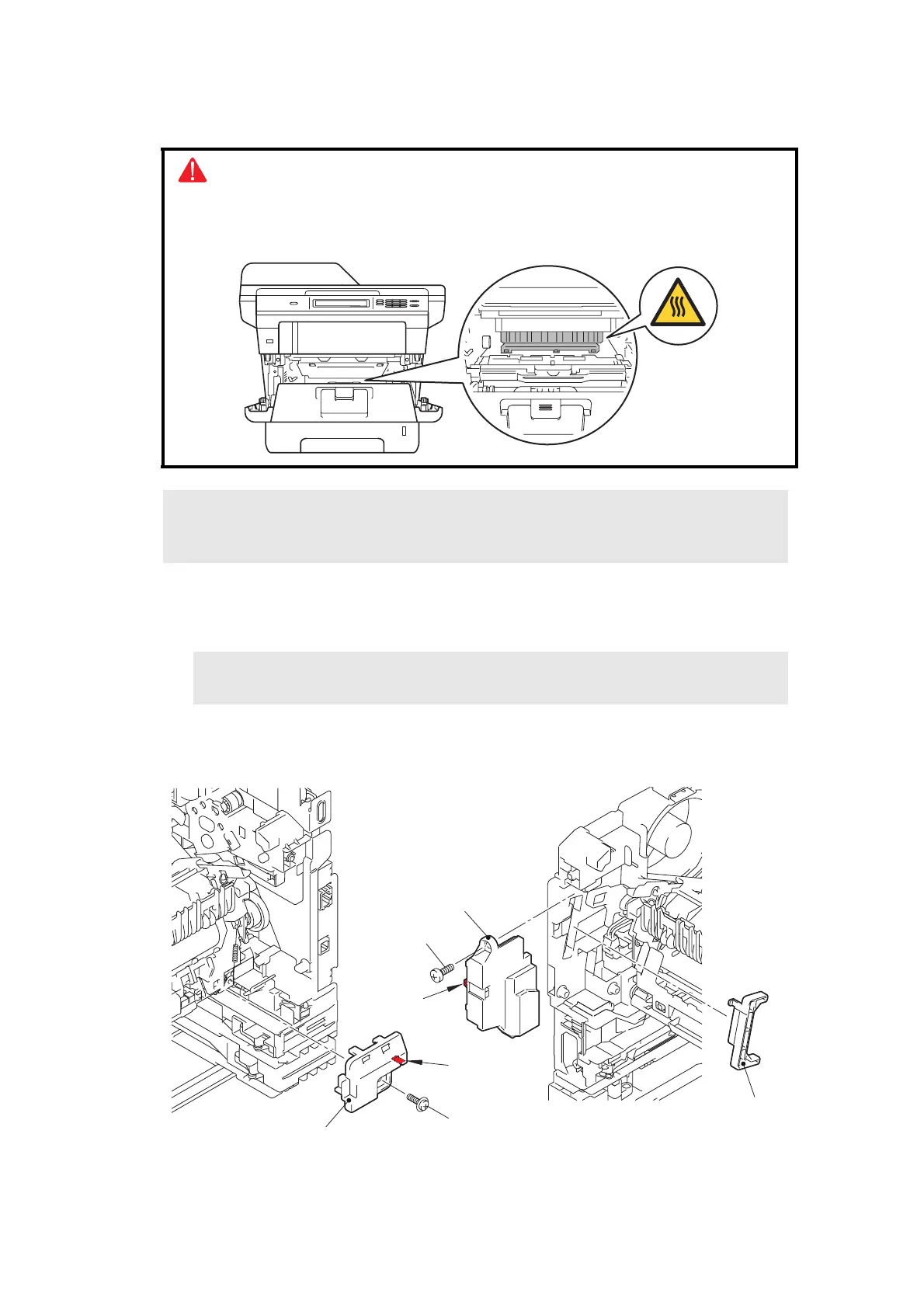

Fig. 3-99

CAUTION

Some parts inside the machine are extremely hot immediately after the machine is used.

When opening the front cover ASSY or back cover to access any parts inside the

machine, never touch the shaded parts shown in the following figures.

Note:

• When removing the fuser unit while the front cover is attached, keep the front cover

closed.

Note:

• Make sure that the front cover is open when removing the rear nip release link.

Taptite pan B M4x14

Taptite bind B M4x12

Fuser unit line cover R

Hook

Fuser unit line cover L

Rear nip release link
