Brother DCP-8152DN User Manual

3-125
Confidential
10.8 T2 paper feed sensor PCB ASSY
(1) Remove the four taptite bind B M4x12 screws securing the two under bars, and remove
the two under bars from the LT unit.

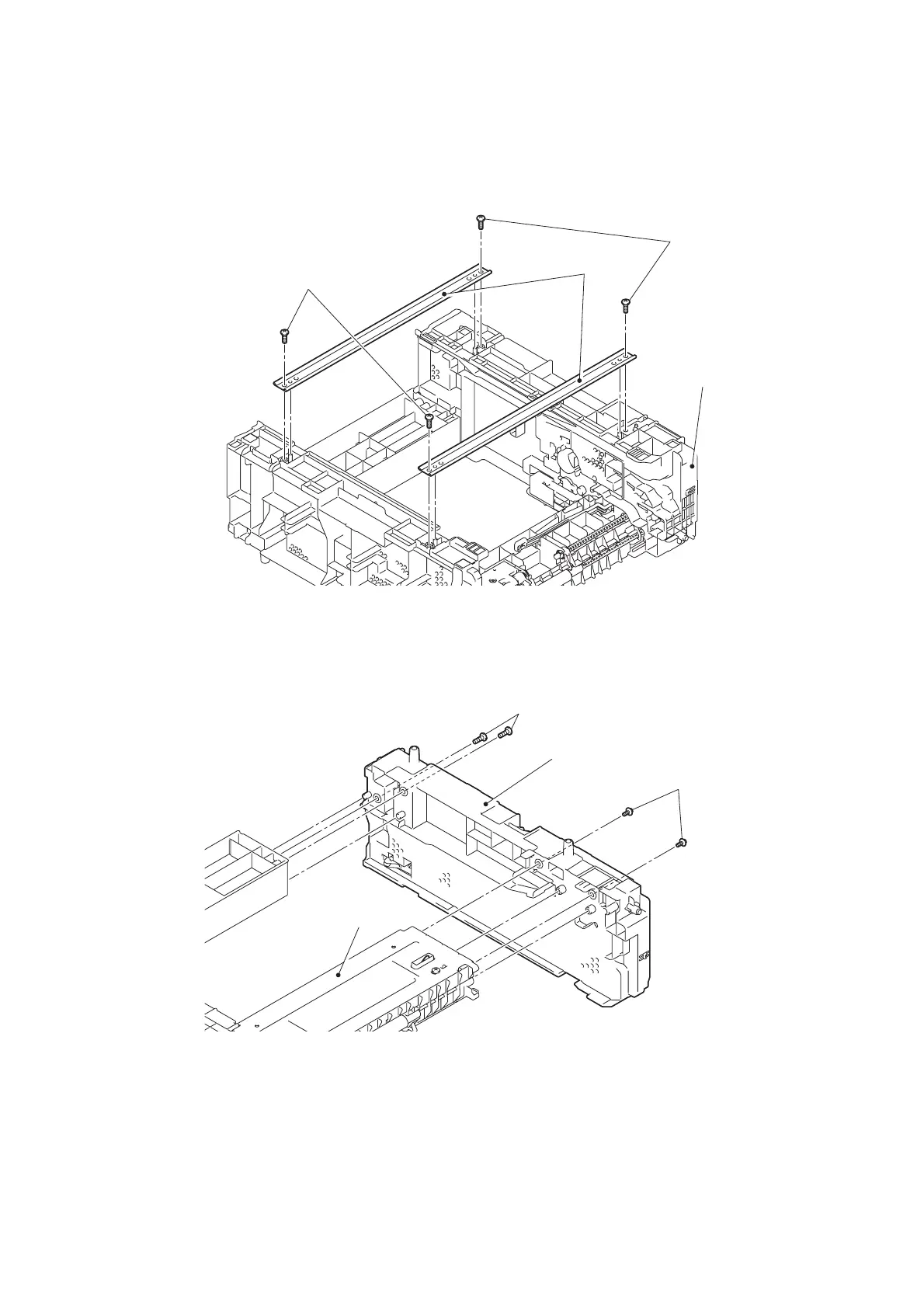

Fig. 3-157
(2) Remove the two taptite cup S M3x8 SR screws and the two taptite bind B M4x12
screws, and remove the T2 frame R unit from the LT unit.
Fig. 3-158
Taptite bind B M4x12
Taptite bind B M4x12
Under bars
LT unit
Taptite bind B M4x12
Taptite cup S M3x8 SR
T2 frame R unit
LT unit
