Brother DCP-8152DN User Manual

3-89
Confidential
9.27 Main motor ASSY
(1) Remove the eight taptite bind B M4x12 screws, and remove the drive sub ASSY from
the main frame L ASSY.

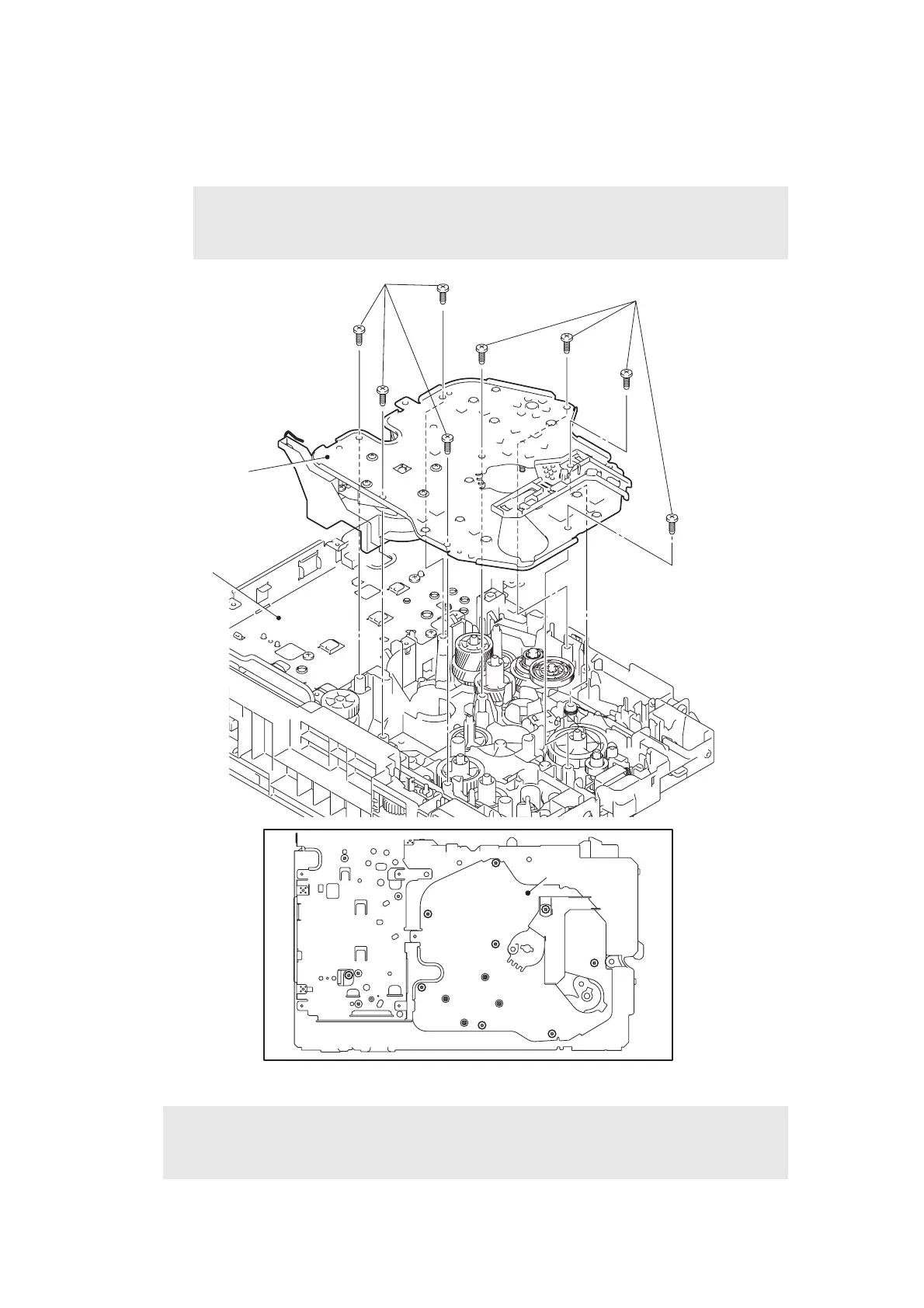

Fig. 3-118
Note:
• When removing the drive sub ASSY, be careful not to damage the shaft of the
drive sub ASSY.
Assembling Note:
• When securing the drive sub ASSY with screws, tighten the screws in the sequence of
the numbers engraved on the drive sub ASSY.
Taptite bind B M4x12
Taptite bind B M4x12
Drive sub ASSY
Main frame L ASSY
5
1
2
8
6
7
3
4
Drive sub ASSY

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
