2.1.2 ADF unit/Document scanner unit

 Legal model

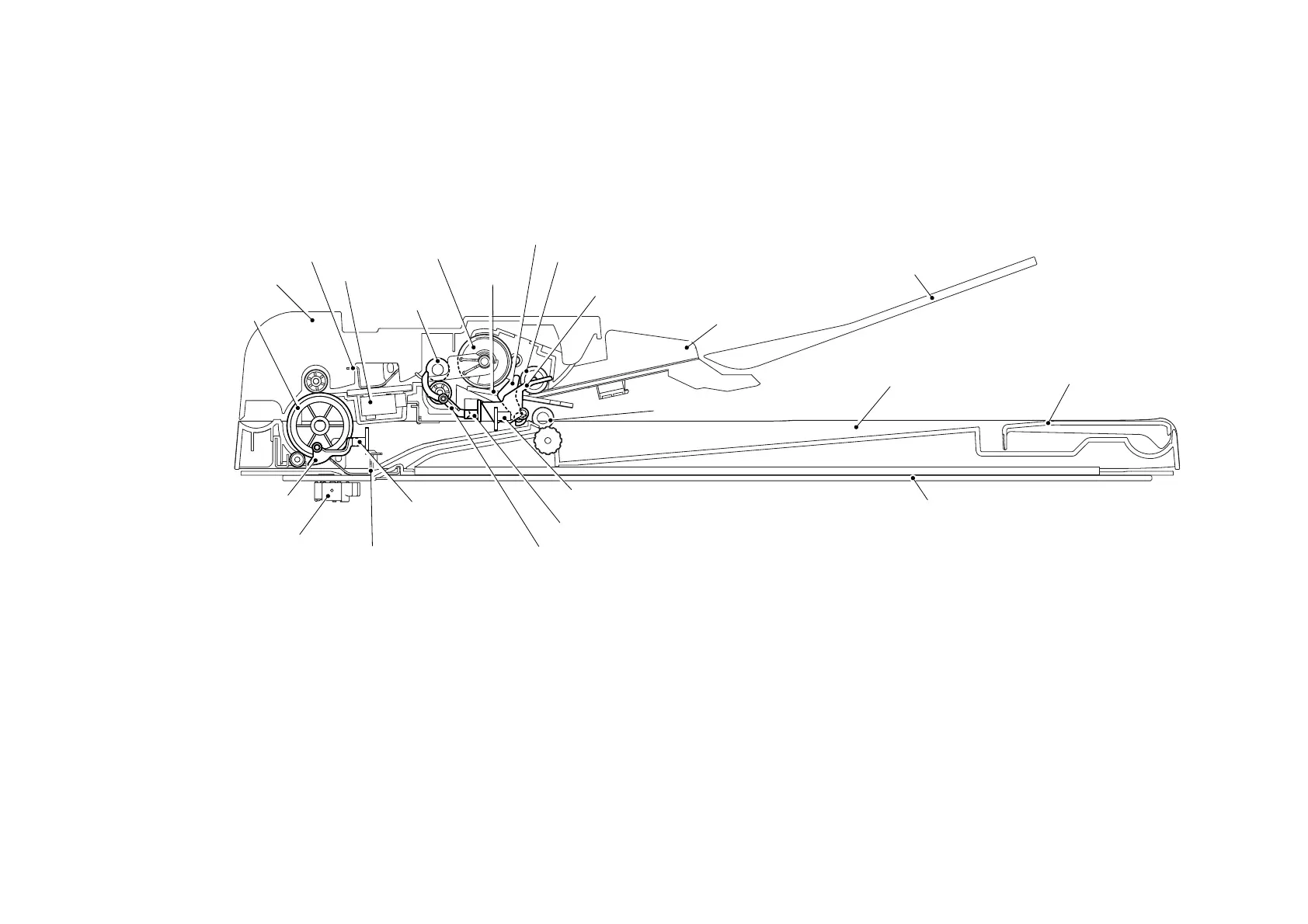

Fig. 2-2

Second side document hold

ADF cover

Document feed

roller ASSY 2

First side CIS unit

First side document hold

First side document

scanning position

sensor PCB

First side document scanning

position actuator

Second side document scanning position actuator

Second side document scanning position sensor PCB

ADF cover/document detection sensor PCB

Document glass

Document cover

ADF document output

support flap

ADF cover actuator

Document pick-up roller

Document detection actuator

ADF

separate pad

Document feed

roller ASSY 1

Document

separate roller

ADF document support

Paper guide

Second side CIS unit

Document ejection roller
