9.9.13 ADF motor ASSY

(1) Release the hook, and remove the gear 43 from the drive frame ASSY.

(2) Remove the screw pan (s/p washer) M3x6 screw to remove the ADF motor ASSY from

the drive frame ASSY.

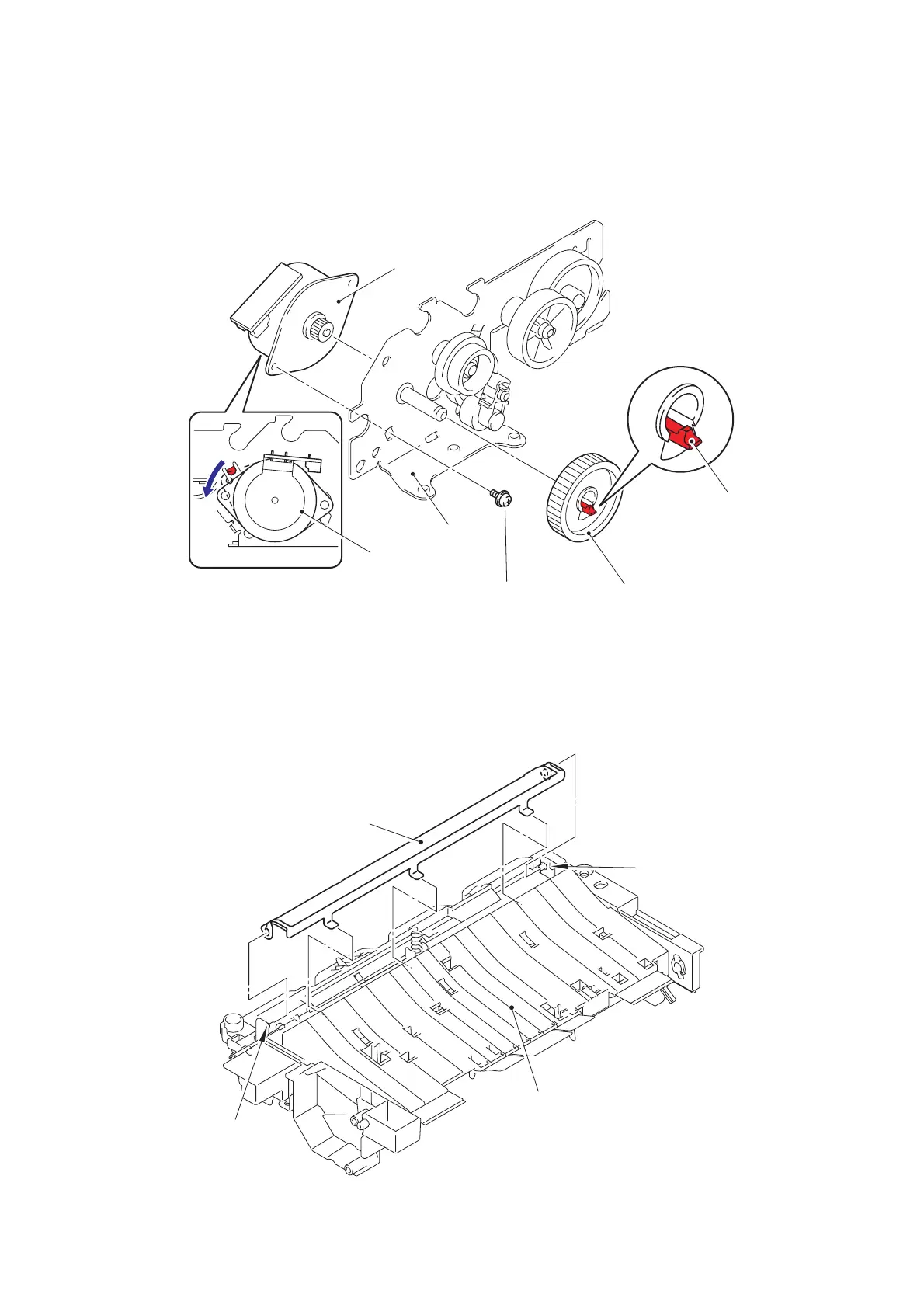

Fig. 3-64

9.9.14 First side document hold

(1) Reverse the lower ADF chute.

(2) Release the two pins, and remove the first side document hold from the lower ADF

chute.

Fig. 3-65

ADF motor ASSY

Screw pan (S/P washer) M3x6

ADF motor ASSY

Gear 43

Hook

Drive frame ASSY

First side document hold

Lower ADF chute
