3-51

Confidential

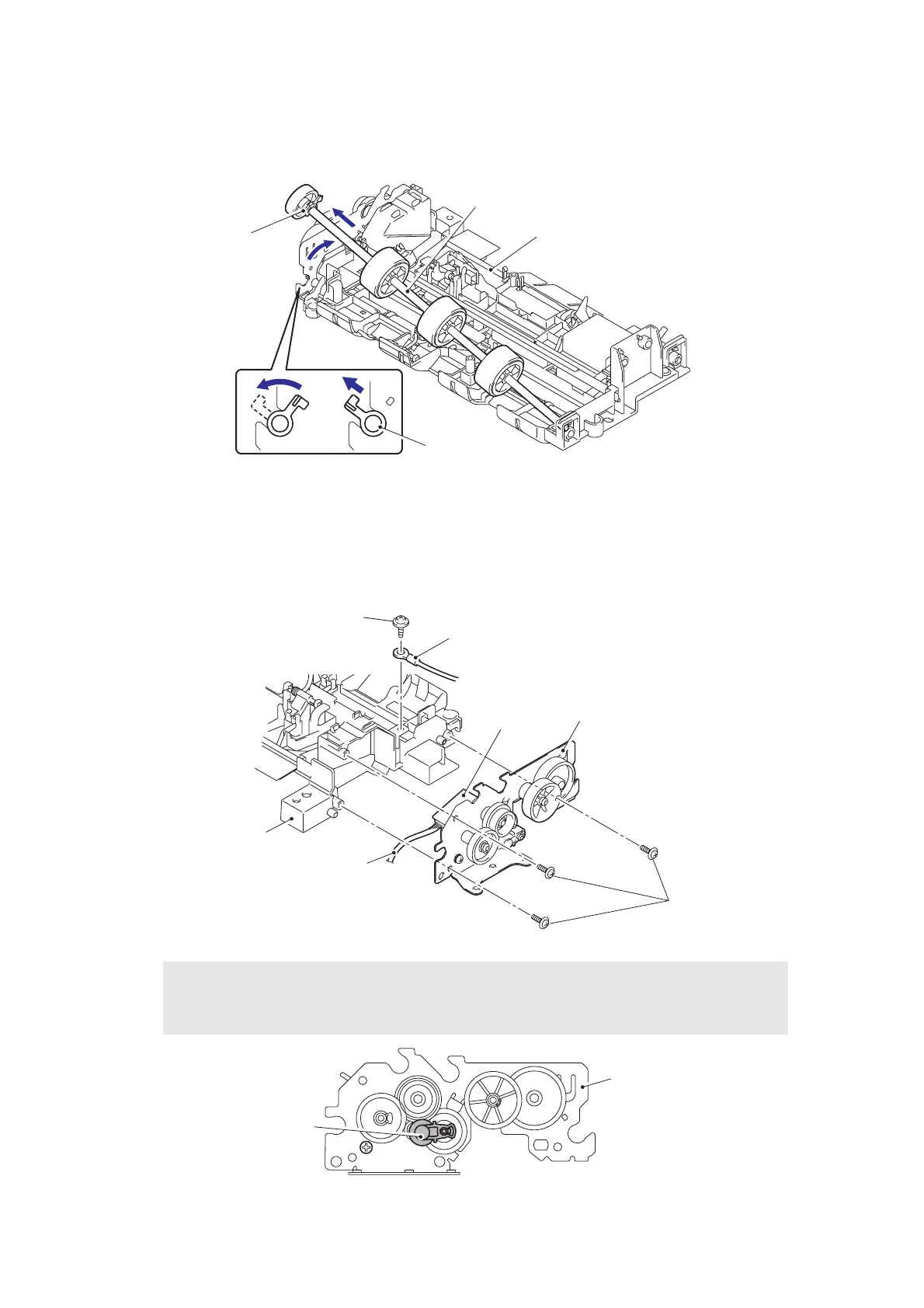

(8) Turn the conductive bushing in the direction of the arrow to release the lock.

(9) Remove the other end of conductive bushing to remove the document feed roller ASSY

1 from the lower ADF chute.

Fig. 3-61

(10) Remove the taptite cup S M3x8 SR screw to remove the ADF earth harness from the

lower ADF chute.

(11) Remove the three taptite cup B M3x10 screws to remove the drive frame ASSY from the

lower ADF chute.

(12) Remove the ADF motor harness from the ADF motor ASSY.

Fig. 3-62

Fig. 3-63

Assembling Note:

When attaching the drive frame ASSY, make sure that the gear of the arm ASSY L2

shaded in gray is engaged with the position shown in the illustration below.

Lower ADF chute

Document feed roller ASSY 1

Conductive

bushing

Conductive bushing

Drive frame ASSY

Taptite cup B M3x10

ADF earth harness

Lower ADF chute

Taptite cup S M3x8 SR

ADF motor harness

ADF motor

ASSY

Drive frame ASSY

Arm ASSY L2
