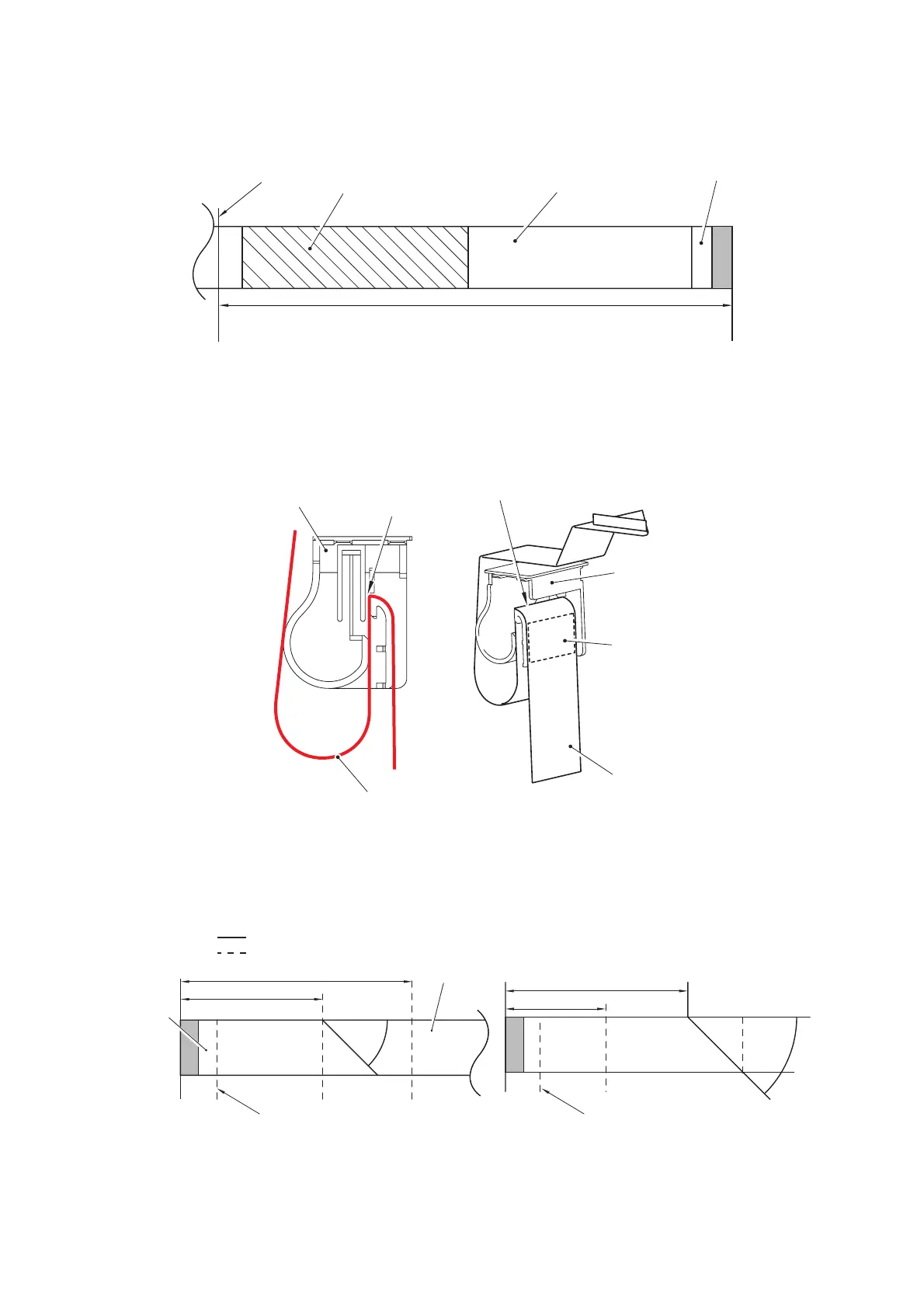

5) Fold one end of the second side CIS flat cable (end to be connected to the second side CIS
unit) at 205 mm for legal models and 201 mm for A4 models.
Fig. 3-58
6) As shown in the illustration below, pass the second side CIS flat cable through the FFC
holder ASSY while fitting the mountain-folded section to the rib on the FFC holder ASSY.
Then secure the second side CIS flat cable to the double-sided tape attached to the FFC
holder ASSY.
Fig. 3-59
7) Fold the other end of the second side CIS flat cable (end to be connected to the main PCB
ASSY).
Fig. 3-60
Mountain fold
Reinforcing tape
Second side CIS flat cable
Reinforcing plate
Legal models: 205mm
A4 models : 201mm
Double-sided tape
FFC holder ASSY
Pass through here.
FFC holder ASSY
Rib (fit mountain-folded section to rib)
Second side CIS flat cable
Second side CIS flat cable
Reinforcing
plate
65mm
95mm
Fold at edge of reinforcing plate
Second
side CIS
flat cable
Mountain fold
Valley fold
Fold at edge of reinforcing plate
Legal models A4 models
80mm
55mm
45°
45°
