3-108

Confidential

9.42

MP roller holder ASSY / MP separation pad ASSY / MP separation pad spring

(1) Open the MP roller cover. Release the hook on the MP holder bushing, and slide the MP

holder bushing in the direction of arrow 1 to remove it from the machine.

(2) Slide the MP roller holder ASSY in the direction of arrow 2a to remove it from the MP

separation roller shaft. Then push the MP lift arm in the direction of arrow 2b to remove

the MP roller holder ASSY from the machine.

(3) Push the MP lift arm in the direction of arrow 2b. Raise the MP separation pad ASSY to

the 50-degree position, and remove it from the machine in the direction of arrow 3.

(4) Bend the MP separation pad spring inward to remove it from the machine.

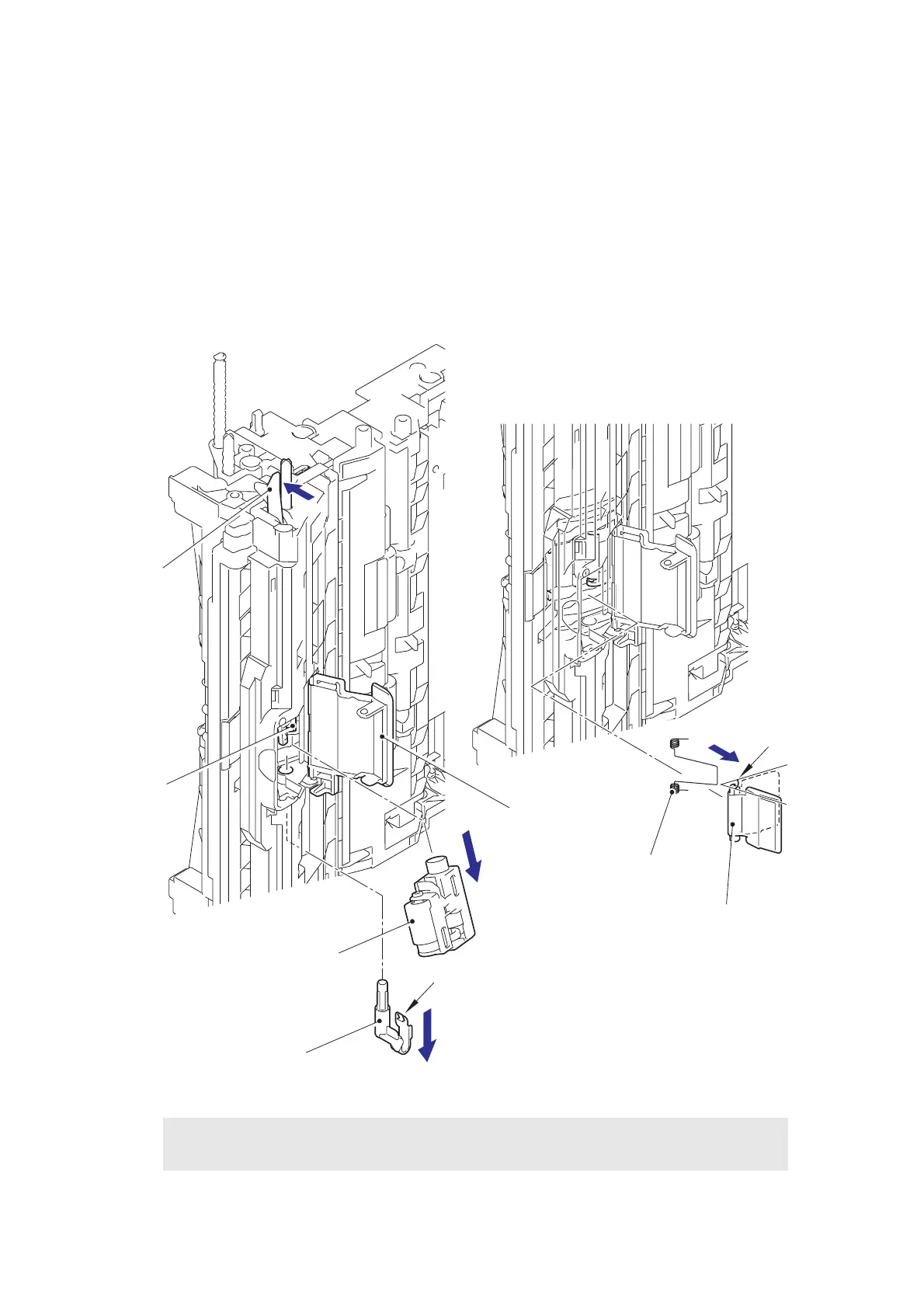

Fig. 3-137

Assembling Note:

• Attach the MP roller holder ASSY while pushing the MP separation pad ASSY.

MP separation pad ASSY

Hook

MP separation pad spring

MP holder bushing

MP roller holder ASSY

MP lift arm

MP roller cover

MP separation

roller shaft

50°
