3-87

Confidential

9.26 Main frame L ASSY

(1) Remove the two taptite bind B M4x12 screws, and remove the rear under bar from the

machine.

(2) Remove the two taptite bind B M4x12 screws, and remove the front under bar and the

under bar earth plate R.

(3) Remove the taptite cup S M3x8 SR screw, and remove the under bar earth plate L from

the machine.

(4) Remove the main PCB insulation sheet (transparent) and the main PCB insulation sheet

(black) from the machine. Then pull out the duplex solenoid harness from the main PCB

insulation sheet (transparent).

(5) Turn the registration roller bushing of the registration roller to the position as shown in

the illustration below, and pull out the registration roller from the machine.

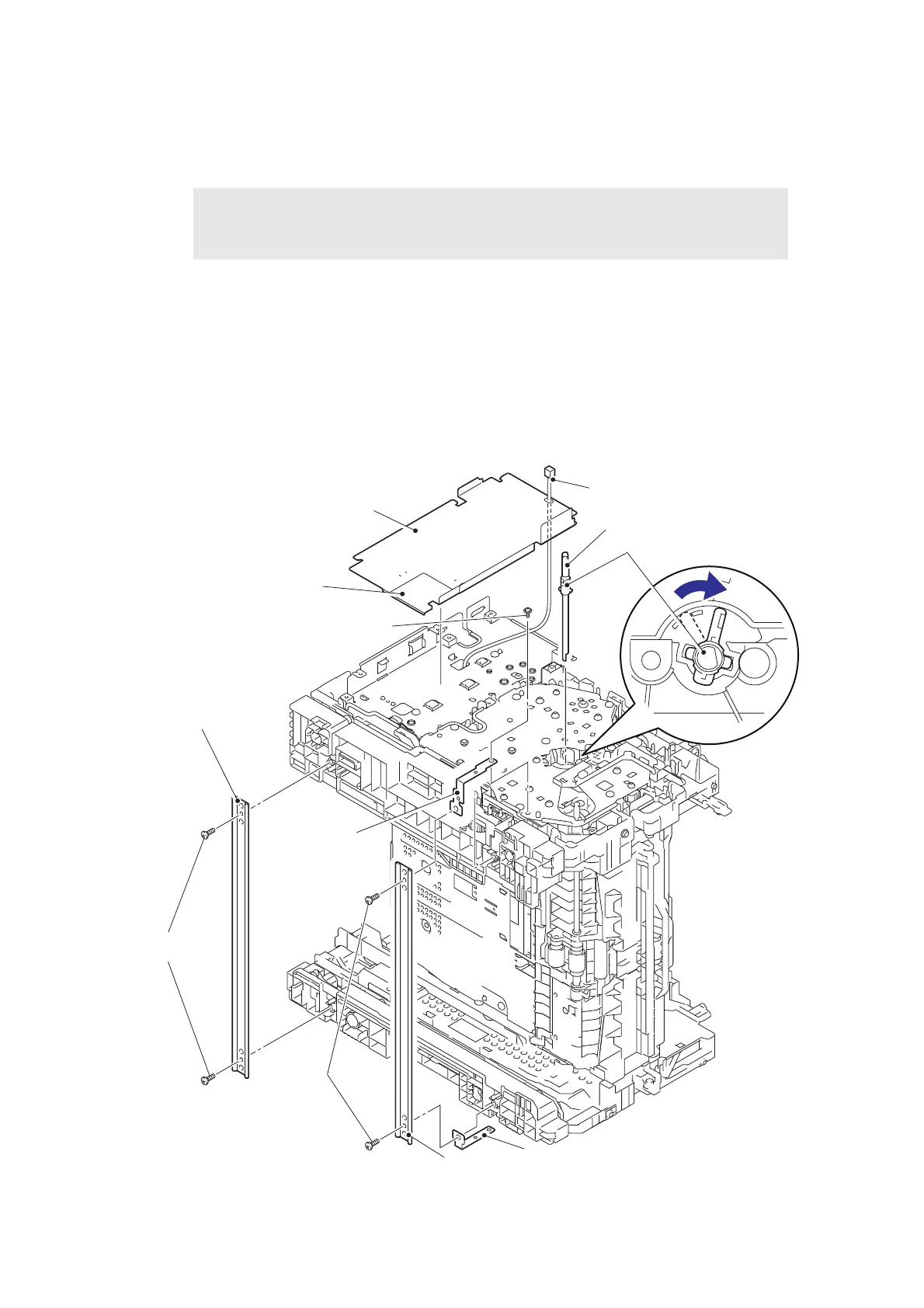

Fig. 3-116

Note:

• Only DCP-8250DN, MFC-8950DW, MFC-8950DWT, MFC-8952DW and MFC-

8952DWT are equipped with a rear under bar.

Under bar

Under bar earth plate R

Taptite bind

B M4x12

Registration roller

Main PCB insulation sheet (transparent)

Main PCB insulation sheet (black)

Taptite cup S M3x8 SR

Taptite bind B

M4x12

Registration roller bushing

Under bar earth

plate L

Duplex solenoid harness
