Brother DCP-8152DN User Manual

3-44
Confidential
(6) Remove the five taptite cup B M3x10 screws from the upper ADF chute.
(7) Remove the upper ADF chute from the ADF unit, and pull out the second side CIS flat
cable from the upper ADF chute.

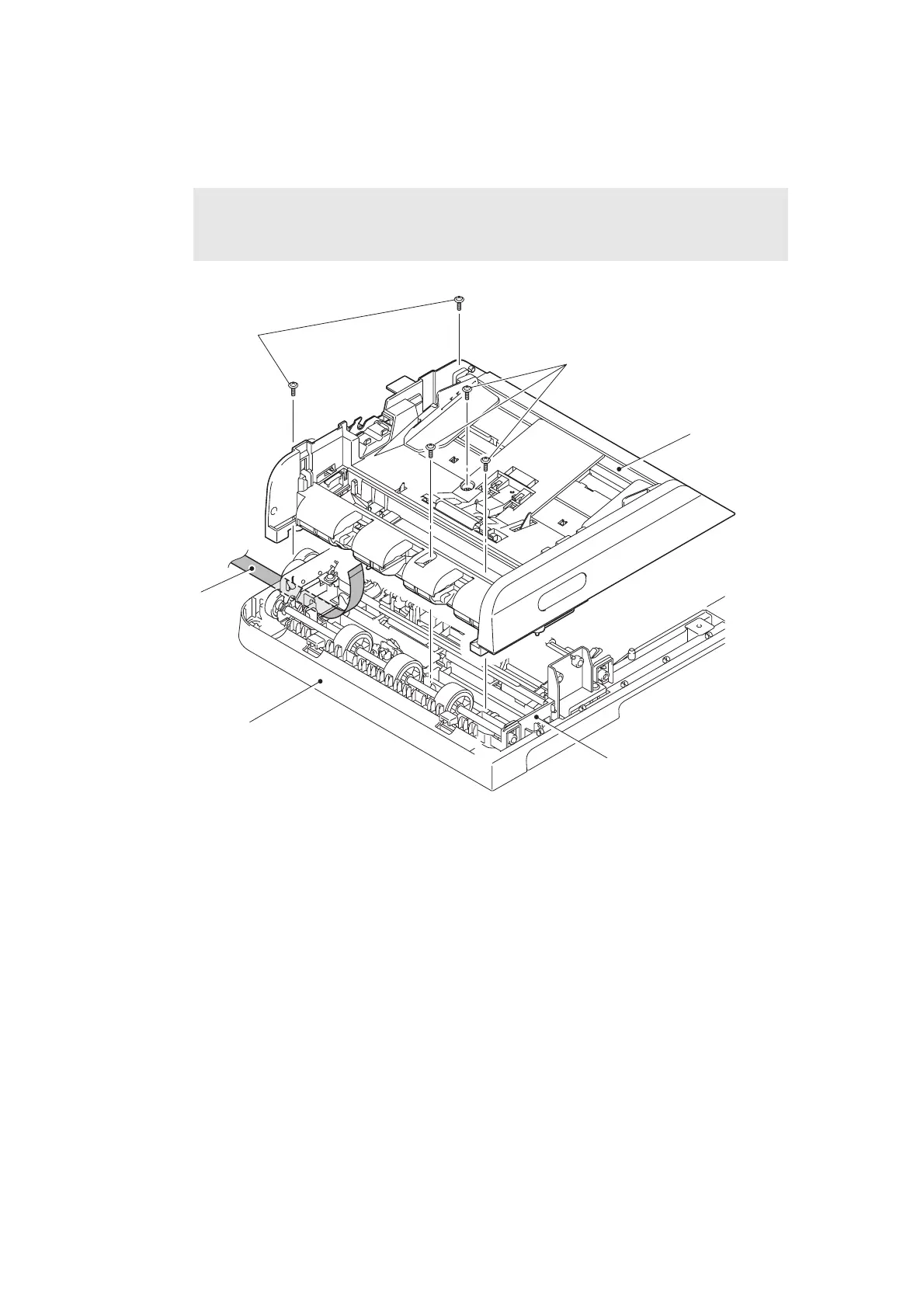

Fig. 3-48
Note:
• Do not disconnect the second side CIS flat cable from the ADF lower chute in this
process as it cannot be connected when the ADF lower chute is attached.
Taptite cup B M3x10
Taptite cup B M3x10
Upper ADF chute
ADF unit
Second side
CIS flat cable
Lower ADF chute

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
