Brother DCP-8152DN User Manual

3-21
Confidential

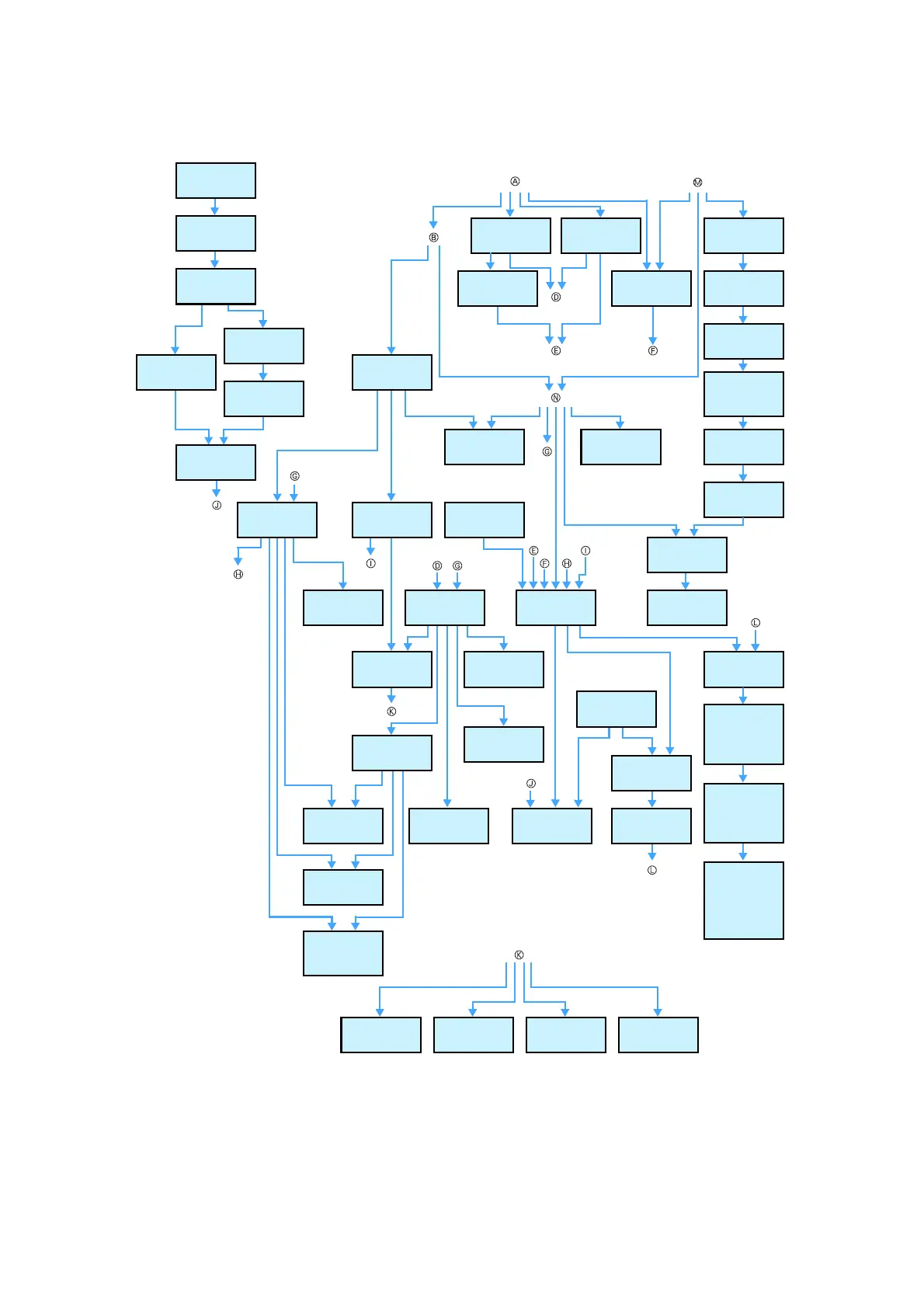

Disassembly / Re-Assembly (second)
9.4 Fuser cover
5/5
9.18 Fuser unit
5/5
9.18 Fuser unit line
cover R
5/5
9.18 Rear nip release
link
5/5
9.18 Fuser unit line
cover L
5/5
9.17 Main PCB ASSY
15/20
9.26 Main PCB
insulation sheet
5/10
9.35 Main PCB shield
calking ASSY
15/15
9.27 Main motor ASSY
15/15
9.24 Relay front PCB
ASSY
15/40
9.33 New toner
actuator
10/20
9.27 Drive sub ASSY
25/30
9.30 Toner sensor PCB
ASSY
10/10
9.31 MP solenoid
10/20
9.32 Develop clutch
51R / Develop one way
clutch 53
15/15
9.6 Front cover ASSY
10/15
9.19 Laser unit
15/15
9.26 Main frame L
ASSY
60/90
9.22 Main fan
15/30
9.21 Toner LED PCB
ASSY
60/80
9.20 Scanner earth
plate
10/10
9.20 LV shield plate
cover
15/15
9.20 LVPS insulation
sheet (big/small)
5/5
9.20 Low-voltage
power supply PCB
ASSY
30/50
9.21 LV shield plate
15/15
9.21 Hold cover 1
5/5
9.25 Registration clutch
15/30
9.25 T1 clutch
15/30
9.29 LT drive gear 29
5/5
9.28 Develop joint gear
37 / Develop joint
10/10
9.26 Under bar
10/10
9.26 Registration roller
bushing
10/10
9.40 HV insulation
sheet
5/10
9.40 High-voltage power
supply PCB ASSY
15/10
9.41 Eject sensor PCB
ASSY
15/15
9.34 Internal
temperature thermistor
20/30
9.44 MP feed frame
20/30
9.23 Air duct / Filter
5/5
9.40 Base plate
25/25
9.44 MP paper empty
sensor PCB ASSY / MP
paper empty actuator 1
/ MP paper empty
actuator 2
60/80
9.45 Registration front/
rear sensor PCB ASSY
/ Registration front
actuator / Registration
rear actuator /
Registration actuator
spring
60/80
9.35 Fuser drive gear
39
5/5
9.36 Duplex solenoid
15/20
9.37 Back cover sensor
10/15
9.38 LT connector (T1)
10/5
9.3 Back cover
5/10
9.3 Outer chute
5/5
9.43 T1 paper feed
sensor PCB ASSY / T1
paper feed actuator /
T1 paper feed actuator
spring
60/80

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
