Brother DCP-8152DN User Manual

7-5
Confidential

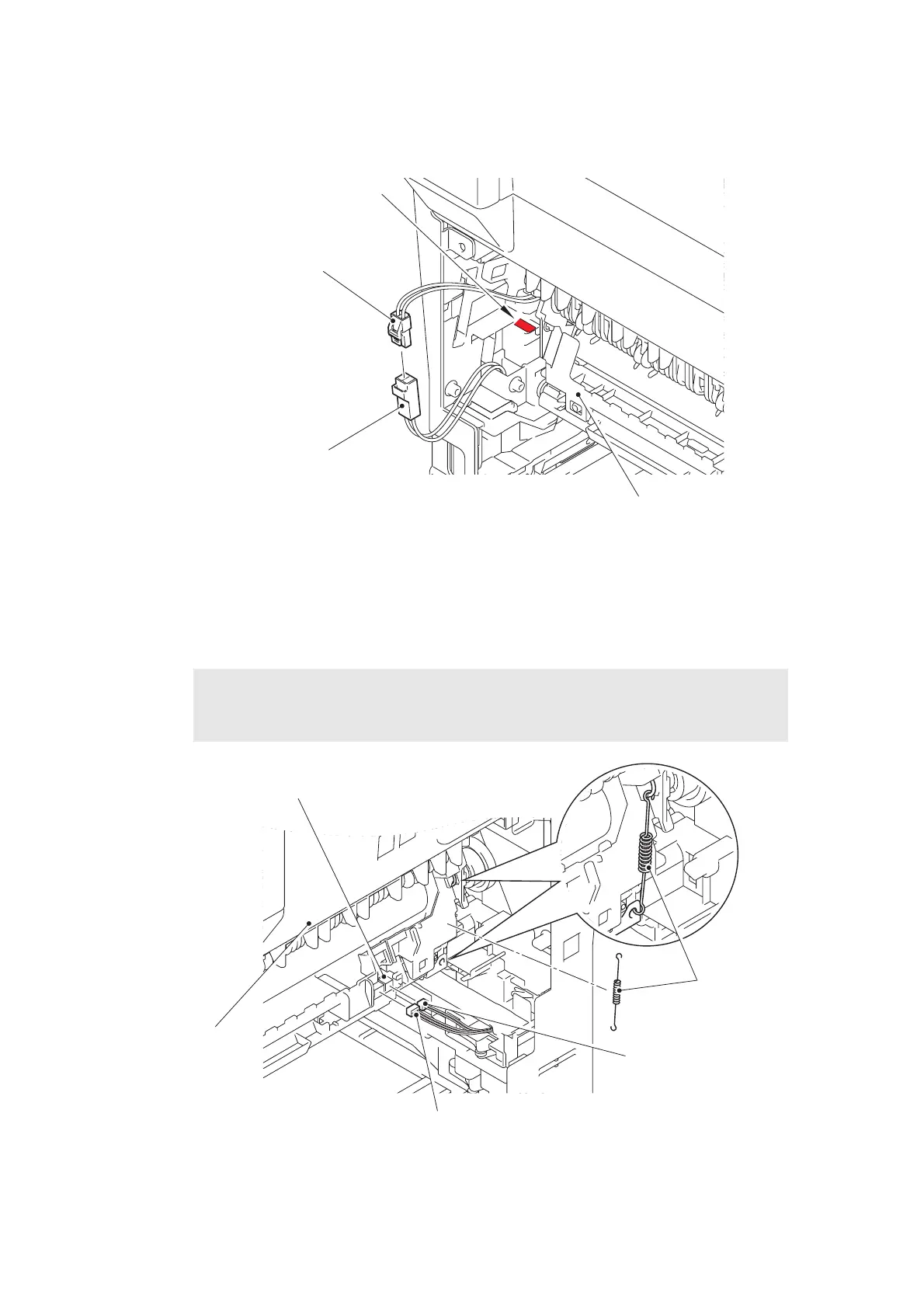

(10) Release the heater harness of the fuser unit from the guide on the main frame R, and
disconnect the heater harness from the low-voltage-heater harness.
Fig. 7-6
Harness routing: Refer to “3.Fuser unit”.
(11) Remove the fuser unit earth spring from the fuser unit.
(12) Release the center thermistor harness and the side thermistor harness of the fuser unit
from the guide, and disconnect these harnesses from the eject sensor PCB ASSY.
Fig. 7-7
Harness routing: Refer to “3.Fuser unit”.
Note:
• When disconnecting the harness, hold the top of the PCB connector to prevent the
PCB connector being damaged.
Heater harness
Fuser unit
Low-voltage-heater harness
<Frame R side>
Guide
Center thermistor
harness
Eject sensor PCB ASSY
Side thermistor harness
Fuser unit
<Frame L side>
Fuser unit earth
spring

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
