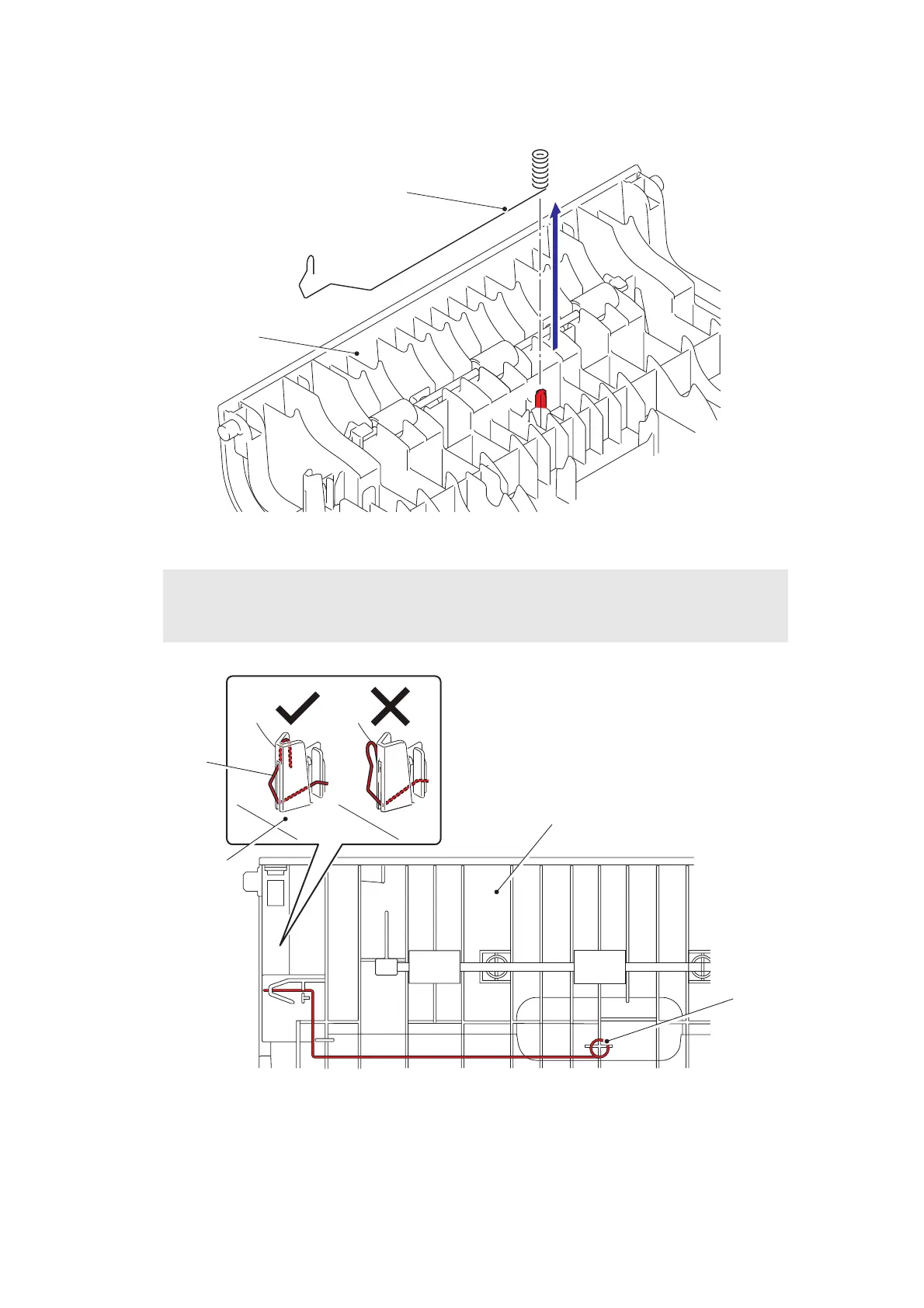

(4) Remove the earth spring from the ADF cover ASSY. (Duplex scanning models only)
Fig. 3-33
Fig. 3-34
Assembling Note:
• When attaching the earth spring, make sure that the earth spring is attached as shown
in the illustration below.
Earth spring
ADF cover ASSY
Earth spring
ADF cover
ADF cover
Earth
spring
