 A4 model
(1) Release the two pins, and remove the ADF separation pad holder from the upper ADF
chute.
(2) Remove the ADF separation pad spring from the upper ADF chute.

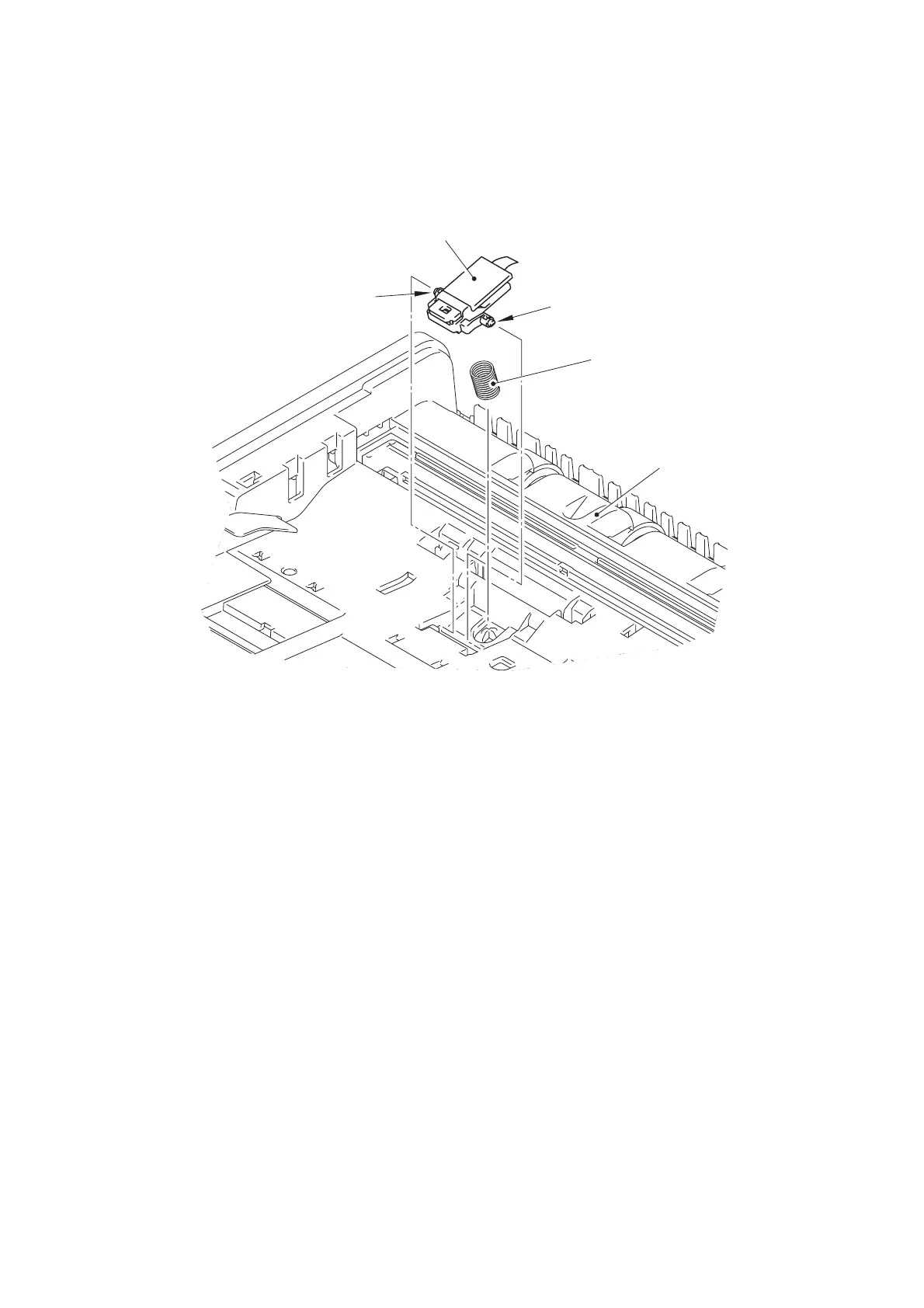

Fig. 3-42
ADF separation pad spring
ADF separation pad holder
Upper ADF chute
Pin
Pin
