3-48

Confidential

(4) Release the ADF motor harness from the guide of the document cover ASSY.

(5) Remove the three taptite cup B M3x10 screws from the lower ADF chute.

(6) Release the hook, and remove the lower ADF chute from the document cover ASSY.

(7) Remove the second side CIS flat cable.

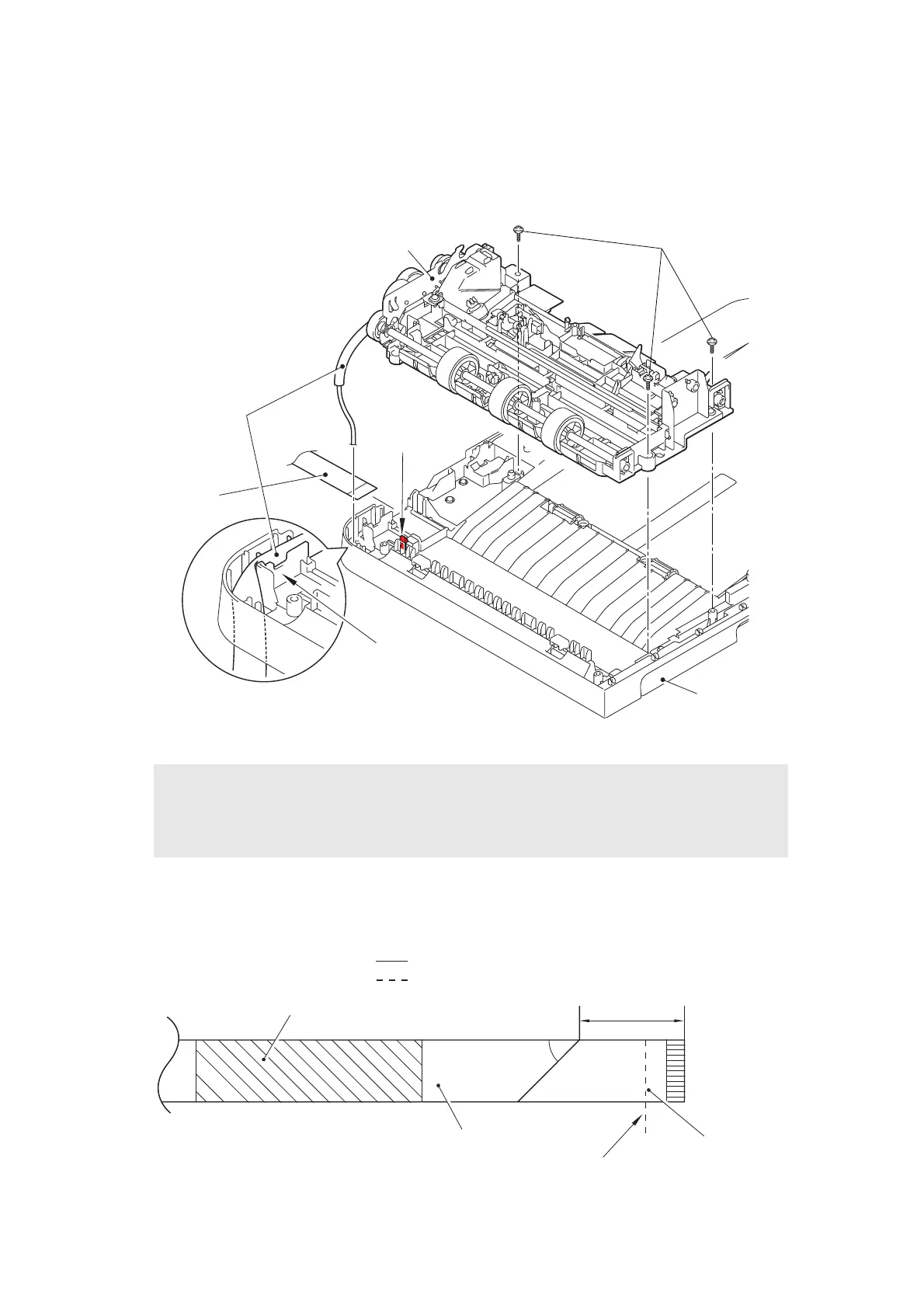

Fig. 3-54

1) Fold the second side CIS flat cable as shown in the illustration below. (Common to Legal /

A4 models)

Fig. 3-55

Assembling Note:

• The second side CIS flat cable may have been damaged when it was removed from the

FFC holder ASSY. Be sure to replace the second side CIS flat cable with a new one.

Follow the procedure below to attach the new second side CIS flat cable.

Taptite cup B M3x10

Hook

Document cover

ASSY

Lower ADF chute

ADF motor harness

Guide

Second side

CIS flat cable

Mountain fold

Valley fold

Reinforcing tape

Second side CIS flat cable

Fold at edge of reinforcing plate

20mm

45°

Reinforcing plate
