3-54

Confidential

(6) Disconnect the touch panel harness and LCD flat cable from the panel PCB ASSY.

(7) Remove the screw pan (S/P washer) M3x6 DA screw to remove the touch panel PCB

harness.

(8) Remove the two screw pan (S/P washer) M3x6 DA screws from the panel PCB ASSY.

(9) Release the six hooks, and remove the panel PCB ASSY from the panel cover.

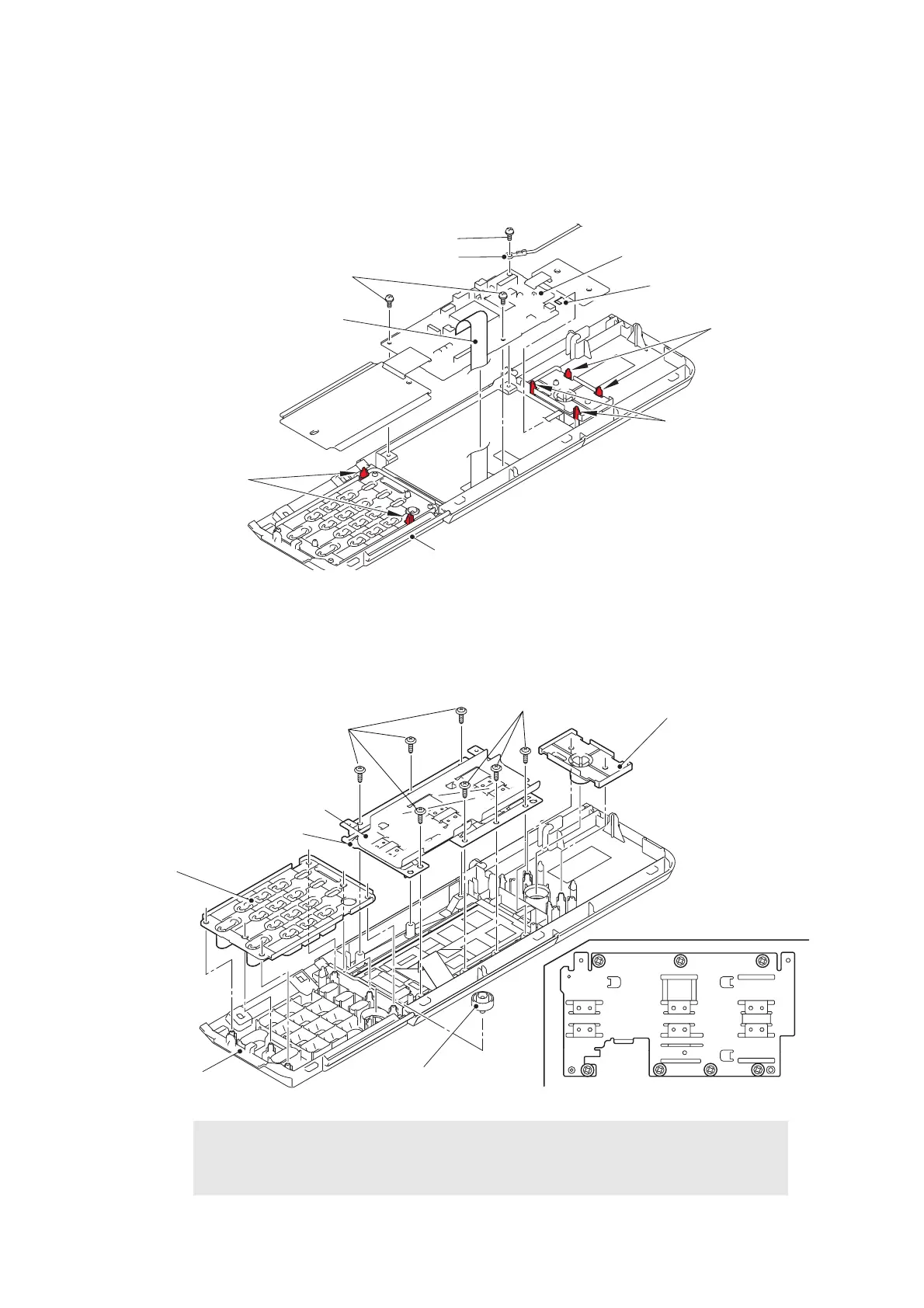

Fig. 3-68

(10) Remove the rubber keys L and R from the panel cover.

(11) Remove the panel light guide from the panel cover.

(12) Open the film to remove the seven taptite cup B M3x10 screws, and remove the touch

panel plate from the control panel ASSY.

Fig. 3-69

Assembling Note:

• When securing the touch panel plate with screws, tighten the screws in the

sequence of the numbers engraved on the touch panel plate.

Touch panel PCB harness

Hooks

Screw pan (S/P washer) M3x6 DA

Hooks

Panel cover

LCD flat cable

Panel PCB ASSY

Touch panel harness

Hooks

Screw pan (S/P washer) M3x6 DA

Rubber key L

Taptite cup B M3x10

Film

Touch panel plate

Taptite cup B M3x10

Panel cover

Panel light guide

Rubber key R

567

1234
