(3) Disconnect the registration front/rear sensor harness, the T1 paper feed sensor harness
and the MP paper empty sensor harness from the high-voltage power supply PCB
ASSY, and remove the high-voltage power supply PCB ASSY from the machine.
(4) Disconnect the main HVPS flat cable from the high-voltage power supply PCB ASSY.

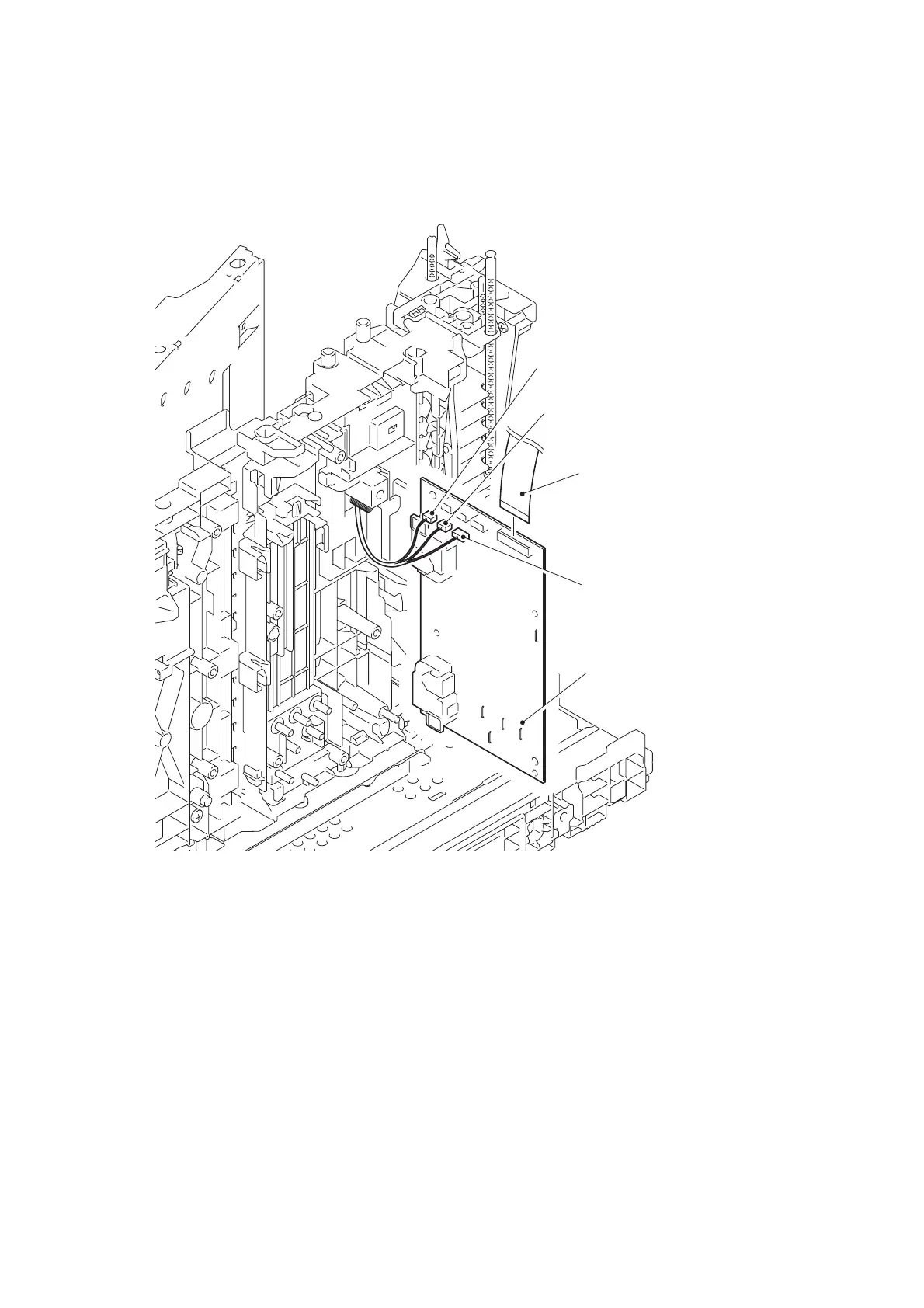

Fig. 3-135
Harness routing: Refer to “4.High-voltage power supply PCB ASSY”.
Main HVPS flat cable
High-voltage power supply PCB ASSY
Registration front/rear sensor harness
T1 paper feed sensor harness
MP paper empty sensor harness

Brother DCP-8152DN Specifications

General

Printer Type	Monochrome Laser Printer
Functions	Print, Copy, Scan
Print Resolution	Up to 1200 x 1200 dpi
Duplex Printing	Yes
Connectivity	USB, Ethernet
Monthly Duty Cycle	Up to 50, 000 pages
Scanner Type	Flatbed with ADF
Optical Resolution	Up to 1200 x 1200 dpi
Copier Resolution	Up to 1200 x 600 dpi
Network Ready	Yes
Display	LCD
Weight	16.5 kg
Print Speed	Up to 40 ppm
Paper Input Capacity	250 sheets
ADF Capacity	35 sheets
Maximum Paper Size	A4
Maximum Copy Speed	Up to 40 cpm
