3-112
Confidential
(2) Release the MP paper empty sensor harness from the paper feed frame ASSY.
(3) Remove the two taptite bind B M3x10 screws, and release the two hooks to remove the
MP feed frame from the paper feed frame ASSY. Then pull out the MP paper empty
sensor harness from the paper feed frame ASSY.
(4) Remove the MP lift arm spring from the paper feed frame ASSY.

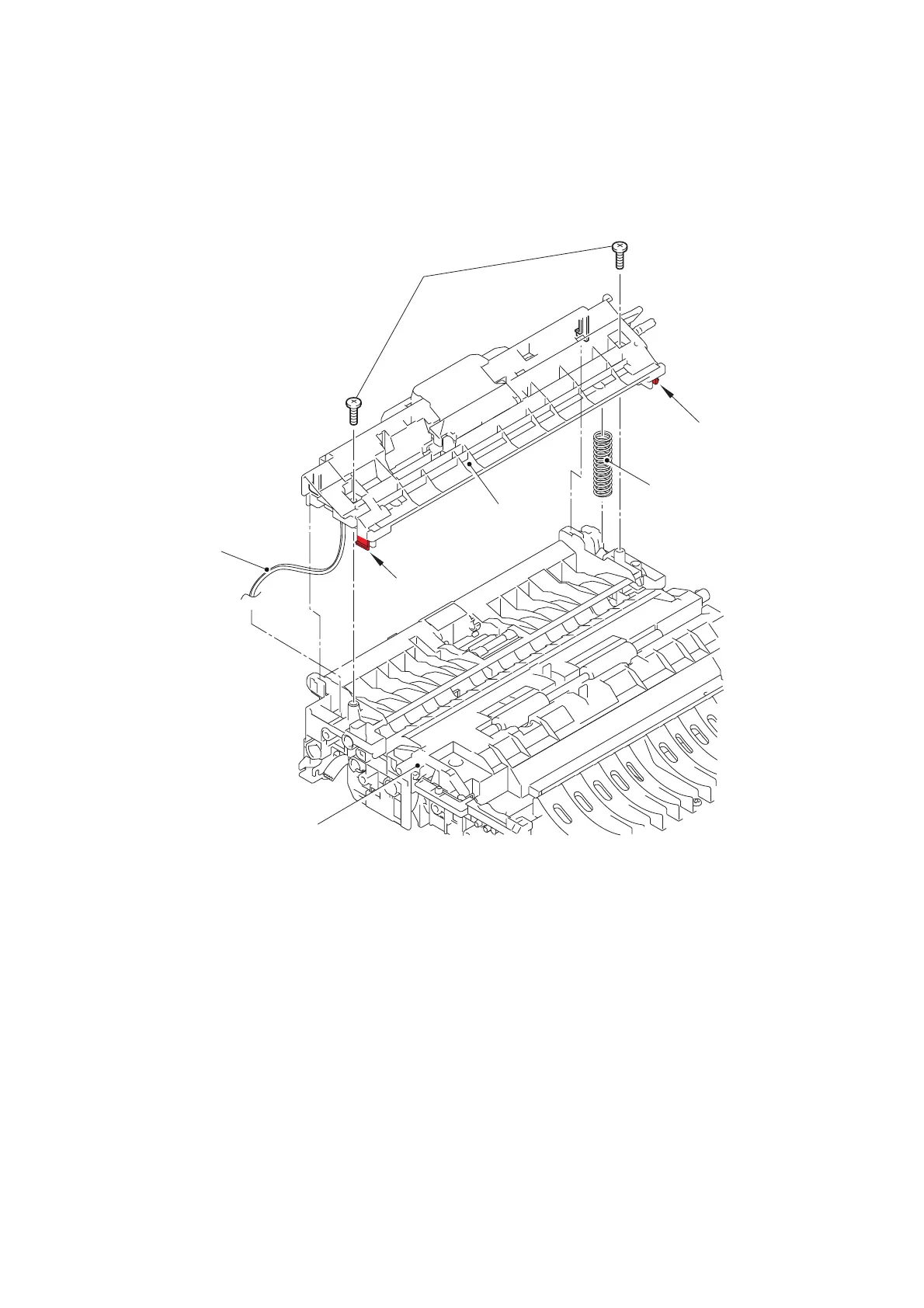

Fig. 3-141
Harness routing: Refer to “4.High-voltage power supply PCB ASSY”.
MP lift arm spring
Paper feed frame ASSY
Hook
Taptite bind B M3x10
Hook
MP feed frame
MP paper empty sensor
harness
