Description
14/108 CLS Pro 600 – Line and Contrast Sensor

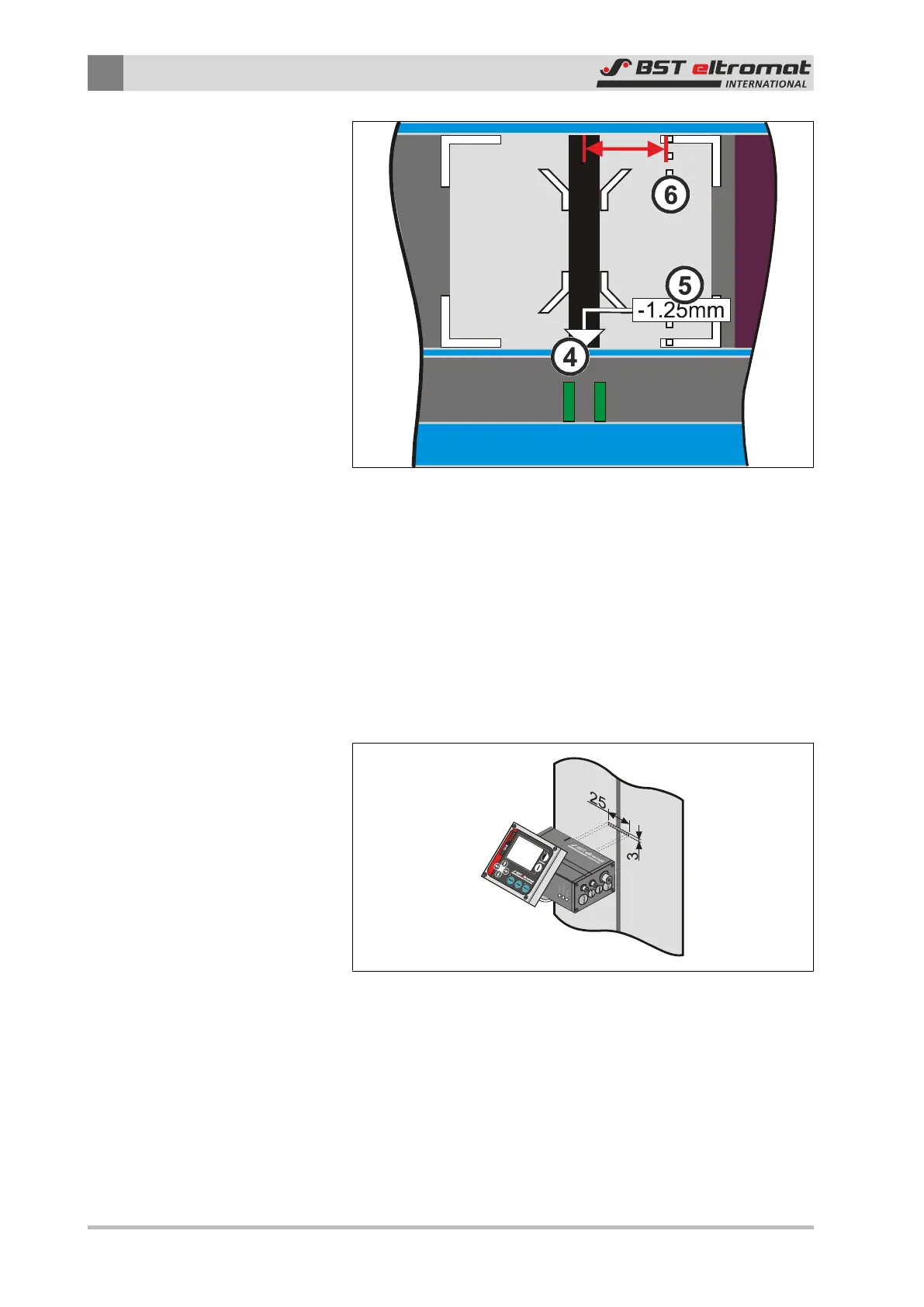

Fig.9: Deviation of the SET POINT Position
④
Standard SET Position
⑤
Numeric Indication of the Deviation
⑥
Center of Measuring Range
The contrast quality will be graphically displayed in the bottom
section of the window.
2.4.3 Measuring Range
The sensor’s measuring range is 25 x 3 mm (W x H).
Fig.10: Measuring Range
2.4.4 Search Area
The search area is a section within the measuring area. The line /
edge that has to be evaluated and controlled afterwards is located
in this section.
