Appendix 2 - Saving Parameters and Loading Firmware
B
CLS Pro 600 – Line and Contrast Sensor 99/108

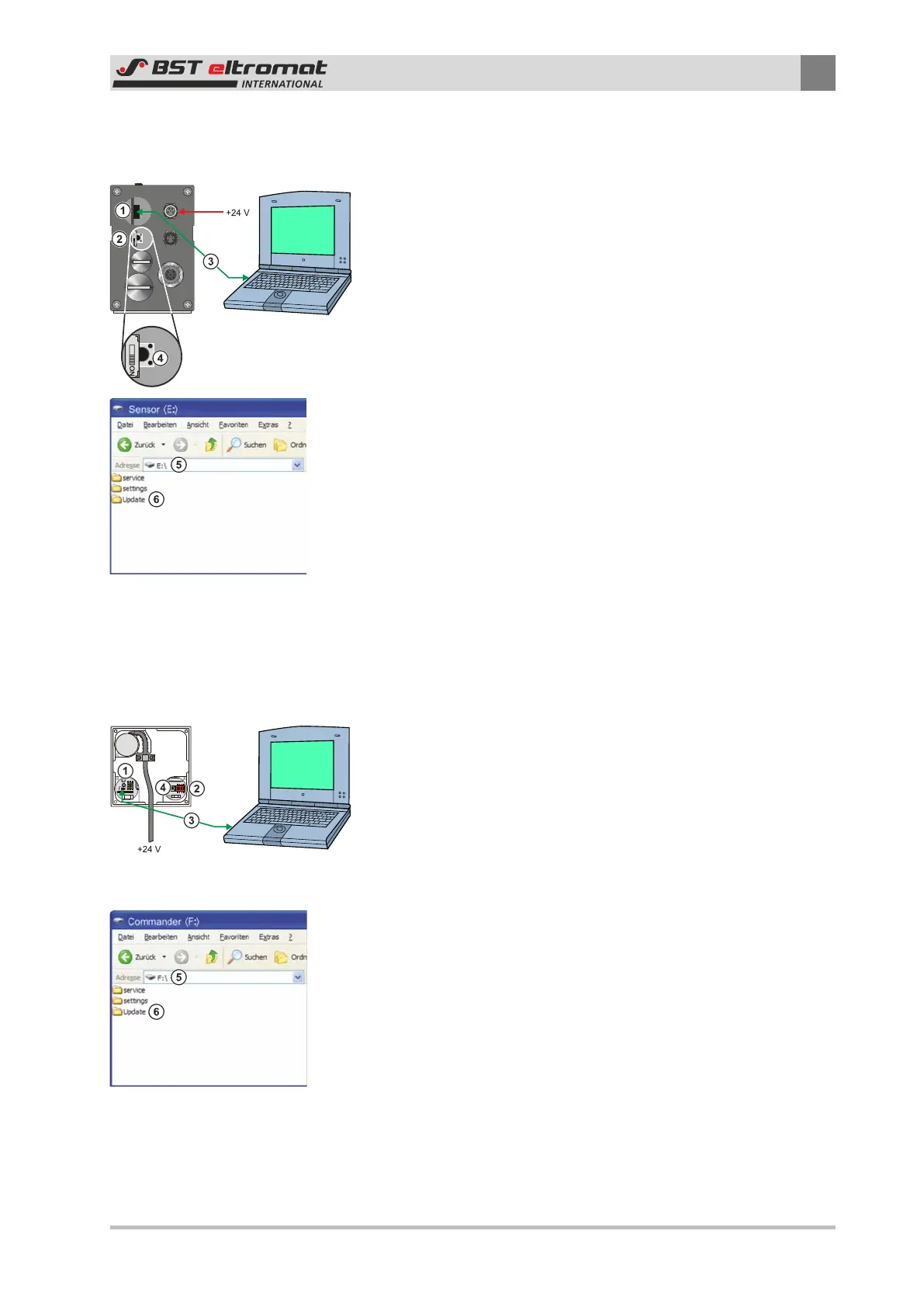

B2.1 Loading Sensor Firmware
Procedure:
1. Unscrew the stop from the sensor enclosure that is fitted in
front of the USB interface ① and then find the button ② that
activates the memory function.
2. Use a mini USB cable ③ to connect the sensor up to a PC or a
laptop.
3. Activate the sensor’s memory function. In this case you must
press the function activation button ④. The sensor will now
be seen as another PC / laptop drive ⑤.
4. Load the new firmware. Sensor firmware can be recognised by
the S in the file name, e.g. CLSPro600_S_1.6.1_A.bim. The new
firmware must be copied into the Update ⑥ directory. The
directory must be created if it does not exist.
5. Call up the Safely remove hardware function from the task-bar
after you have loaded the firmware and then cancel the con-
nection.
6. Disconnect the cable afterwards and then screw the stop back
into the sensor enclosure.
7. Now run a sensor restart (mains OFF / ON). The restart should
take approx. 40 seconds. The firmware will be automatically
loaded into the system during this time.
B2.2 Loading Panel Firmware
1. Unscrew the stop from the back of the panel that is fitted in
front of the USB interface ① and then find the button ② that
activates the memory function.
2. Use a mini USB cable ③ to connect the panel up to a PC or a
laptop.
3. Activate the panel’s memory function. In this case you must
press the function activation button ④. The panel will now be
seen as another PC / laptop drive ⑤.
4. Load the new firmware. Panel firmware can be recognised by
the C in the file name. The new firmware must be copied into
the Update ⑥ directory. The directory must be created if it
does not exist.
5. Call up the Safely remove hardware function from the task-bar
after you have loaded the firmware and then cancel the con-
nection.
6. Disconnect the cable afterwards and then screw the stop back
in.
7. Now run a panel restart. The restart should take approx. 40
seconds. The firmware will be automatically loaded into the
system during this time.
