6
Operation
56/108 CLS Pro 600 – Line and Contrast Sensor

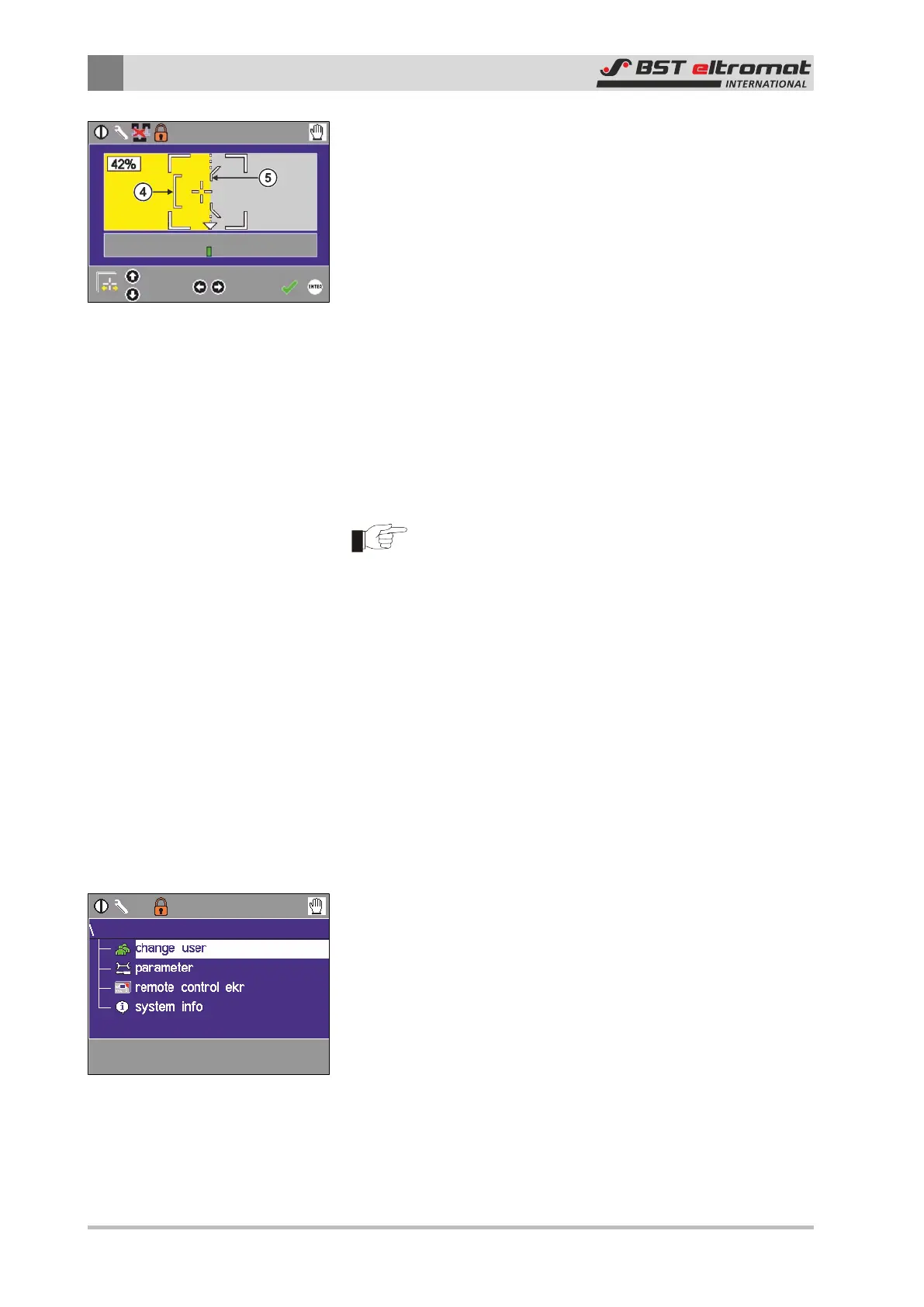

Fig.40: Display of area tracking
④
Search Area Limit (Left Edge)
⑤
This edge will be tracked.
The panel display will look like it is shown in the figure on the left.
If the search area is enlarged then the are that has to be checked
will be enlarged automatically. Normal line tracking using two
edges will be resumed automatically as soon as a second edge is
detected inside the search area.
6.6 Extended Operation
The system parameters are saved in the main menu. The menu
structure is shown in Section 6.1.3.
You can run the required optimisation from here if the pre-con-
figured settings cannot be fully used for a specific type of ma-
chine.
Caution!
The settings must be entered in setup mode.
The meanings of the specific parameters are described in the fol-
lowing.
6.6.1 Change User
Use this parameter to assign or change the user level in a dialog
window. Different setting up options are available, but they de-
pend on the user level. Which parameter a user can adapt and
which functions he can use are defined in the configuration menu
(see Configuration section). Assignments have already been set-up
in the factory (see factory default settings). However, the system
should be created so that the user only has to log on as the ad-
ministrator, in order to run a complete commissioning process.
Implement any relevant adaptations necessary when you assign
user levels to the specific parameters (see Section 6.6.3)
The procedure for selecting the user levels is described in the fol-
lowing, e.g. for commissioning or operating.
1. Mark the change user entry and press ENTER to confirm it.
