Installation
36/108 CLS Pro 600 – Line and Contrast Sensor
4.3 Service Indicator Displays
There are 3 service LEDs fitted on the sensor enclosure and they
have the following significances:

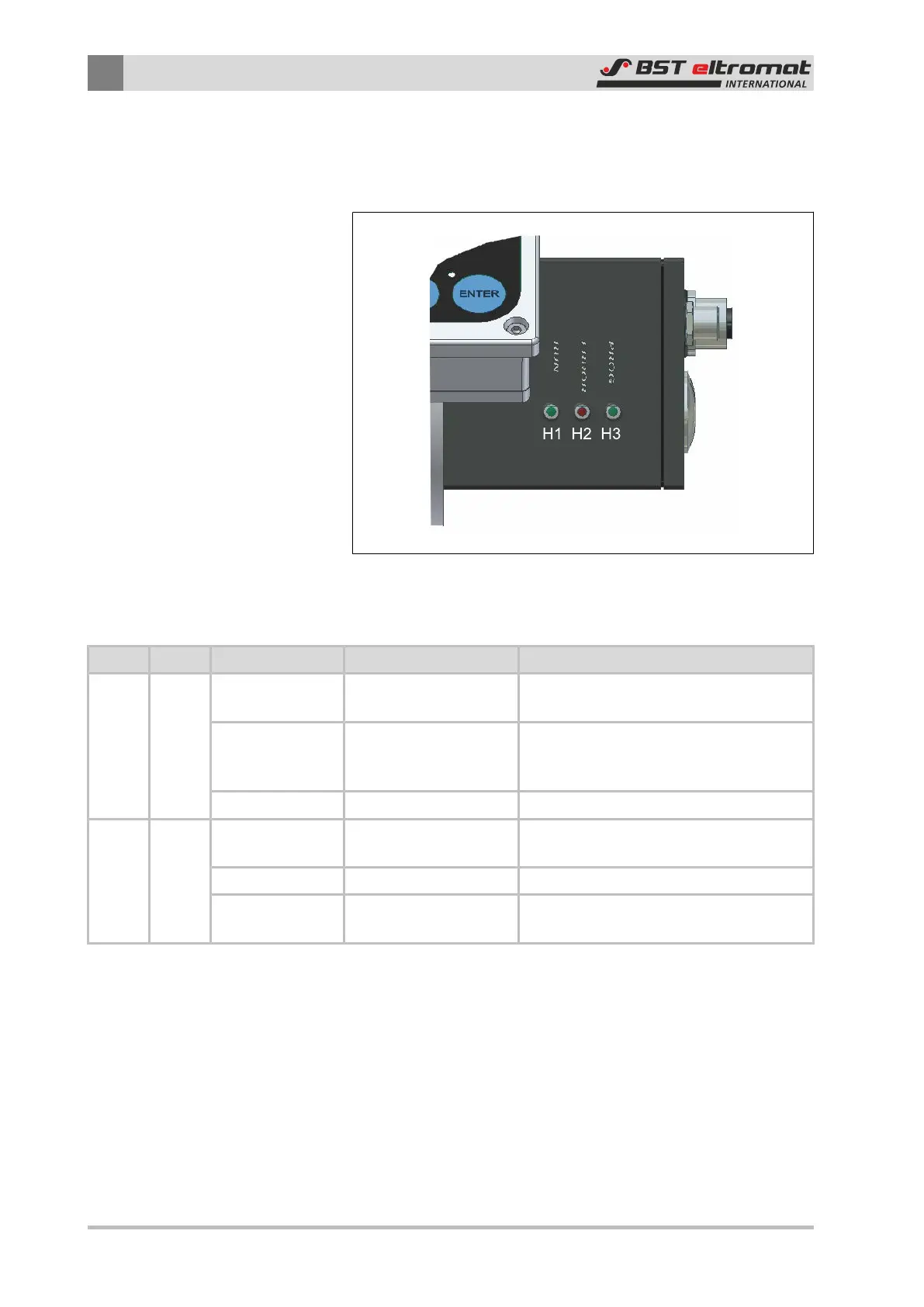

Fig.34: Service Indicator Displays
4.3.1 Bus Status LEDs
LED Name Status Bus designation Meaning
H1 RUN
OFF STOPPED
The unit is in the initialization phase. No
data transfer can take place.
FLASHING PREOPERATIONAL
The device is in PREOPERATIONAL mode.
The initialisation process is complete.
The device can be started.
ON OPERATIONAL The unit is in OPERATIONAL mode.
H2 ERR
OFF NO ERROR
The device is functioning properly. There
is no error present.
FLASHES 3x SYNC ERROR No SYNC message is received.
ON BUS OFF
The interface controller is in Bus OFF
mode.
