9
Technical Data
86/108 CLS Pro 600 – Line and Contrast Sensor

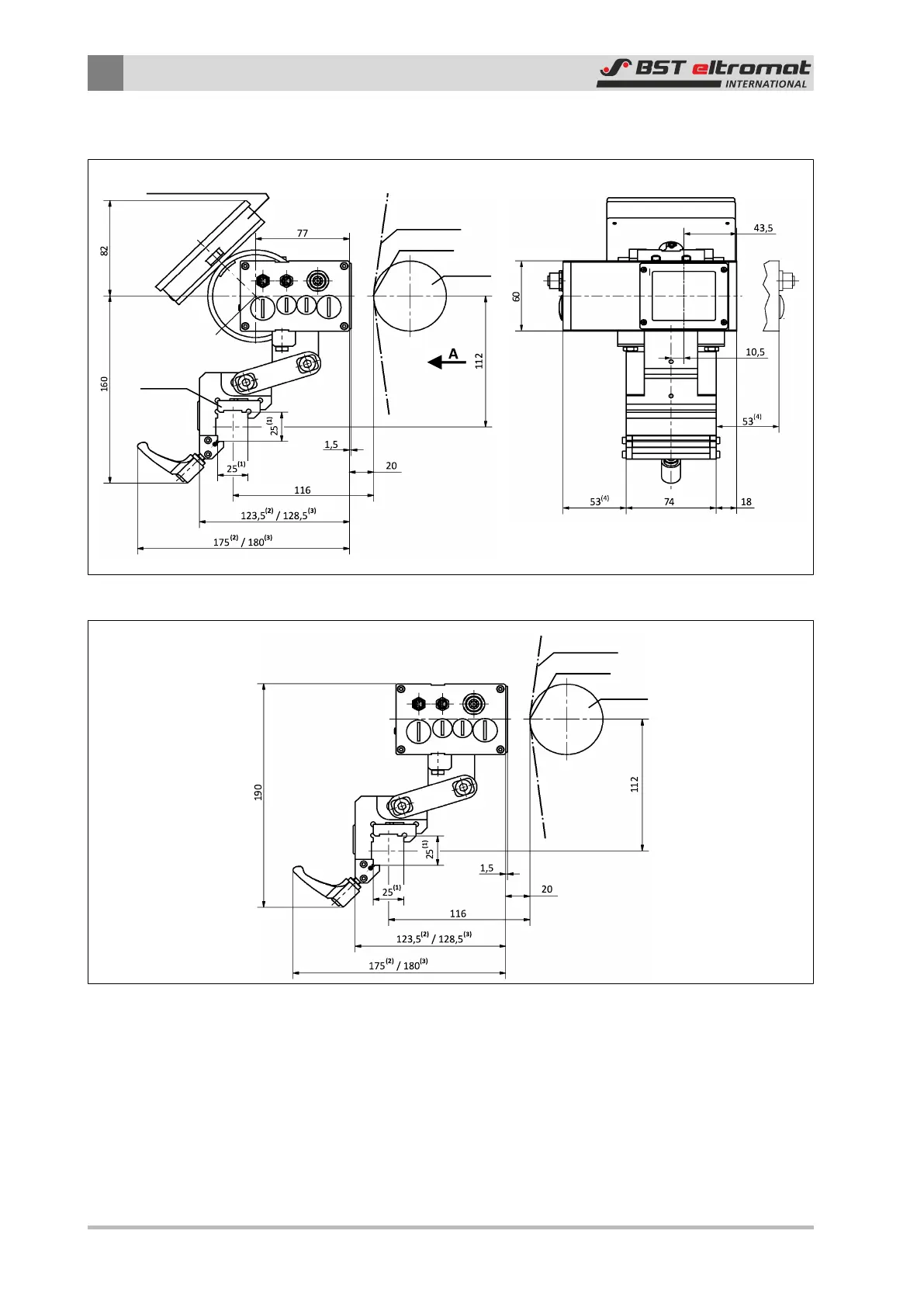

9.2.5 Space Requirement (Details in mm)
Swiveling Panel
Material Web
Scan Point
Scanning
Roller
Adapter
View A
Fig.43: Sensor with mounted control panel and holder
Material Web
Scanning Roller
Scan Point
Fig.44: Sensor with holder but without control panel
(1)
The details refer to the use of a 25x25 mm square bar. The adapter is not needed if a 35x35 mm
square bar is used.
(2)
Gap when using a 25x25 mm square bar.
(3)
Gap when using a 35x35 mm square bar.
(4)
Sensor offset by 180°.
