CLS Pro 600 – Line and Contrast Sensor 87/108
Swiveling Panel
Material Web
Scan Point
Scanning Roller
Note
Interference
Contours
Securing points for customer’s
holder (on both sides)
Measuring
Range
Laser Position
Holder must be provided by the customer;
See Section 3.2.3 for the connection dimensions
min. 165 mm space needed
to swivel the panel

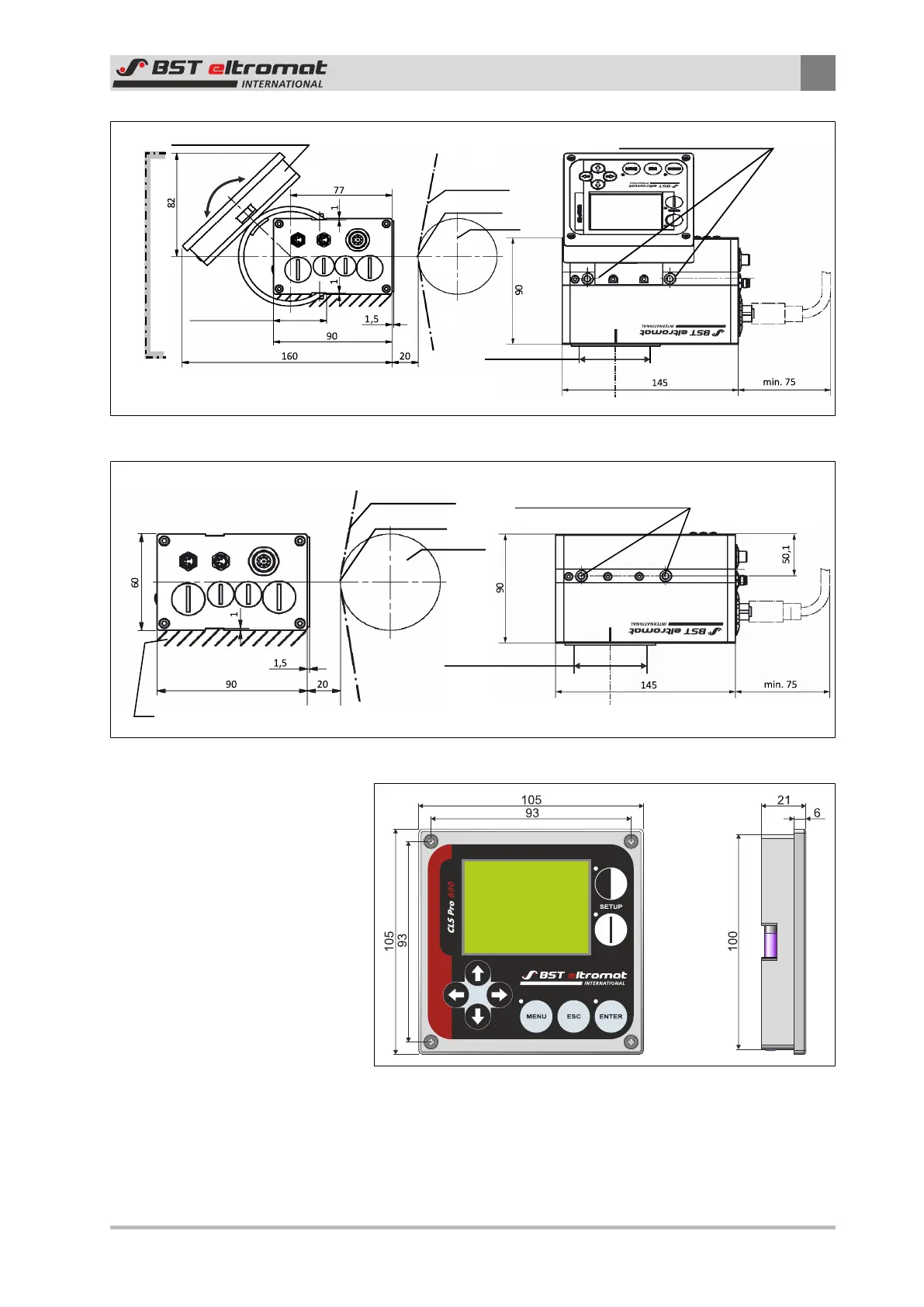

Fig.45: Sensor with mounted control panel but without holder
Holder must be provided by the customer;
See Section 3.2.3 for the
connection dimensions
Material Web
Scan Point
Scanning
Roller
Customer's Holder
Measuring Range
Laser Position
Securing points for customer’s
holder (on both sides)
Fig.46: Sensor without control panel and holder
Fig.47: Control Panel
