2-52
FOOTRESTS
REMOVAL
1. See Figure 2-59. Remove locknut (1) and bolt (2).
2. Remove footrest.
a. Detach passenger footrests (3) from frame.
b. Detach rider footrests (4) from footrest mounts (5).
3. If necessary, remove bolts (10) and washers (9) to
remove footrest mounts from frame.
NOTE
Brake pedal and shift lever must be removed with footrest
mounts. See REAR BRAKE MASTER CYLINDER in this sec-
tion and PRIMARY COVER in Section 6 or more information.
INSTALLATION
1. See Figure 2-59. Install passenger footrests with bolts (2)
and locknuts (1). Tighten securely.
NOTE
Tighten bolts (2) so footrests are tight, but not binding.
2. If removed, install footrest mounts (5).
a. Assemble brake pedal with bushing (8) on the inside
and thrust washer (6) on the outside. Fasten brake
pedal to frame with bolt (10), washer (9) and footrest
mount.
b. Assemble shift lever with bushing on the inside and
thrust washer on the outside. Fasten shift lever to
frame with bolt, washer and footrest mount.
3. Install rider footrests with bolts (2) and locknuts (1).
Tighten securely.
4. Adjust shift lever and brake pedal for smooth operation.

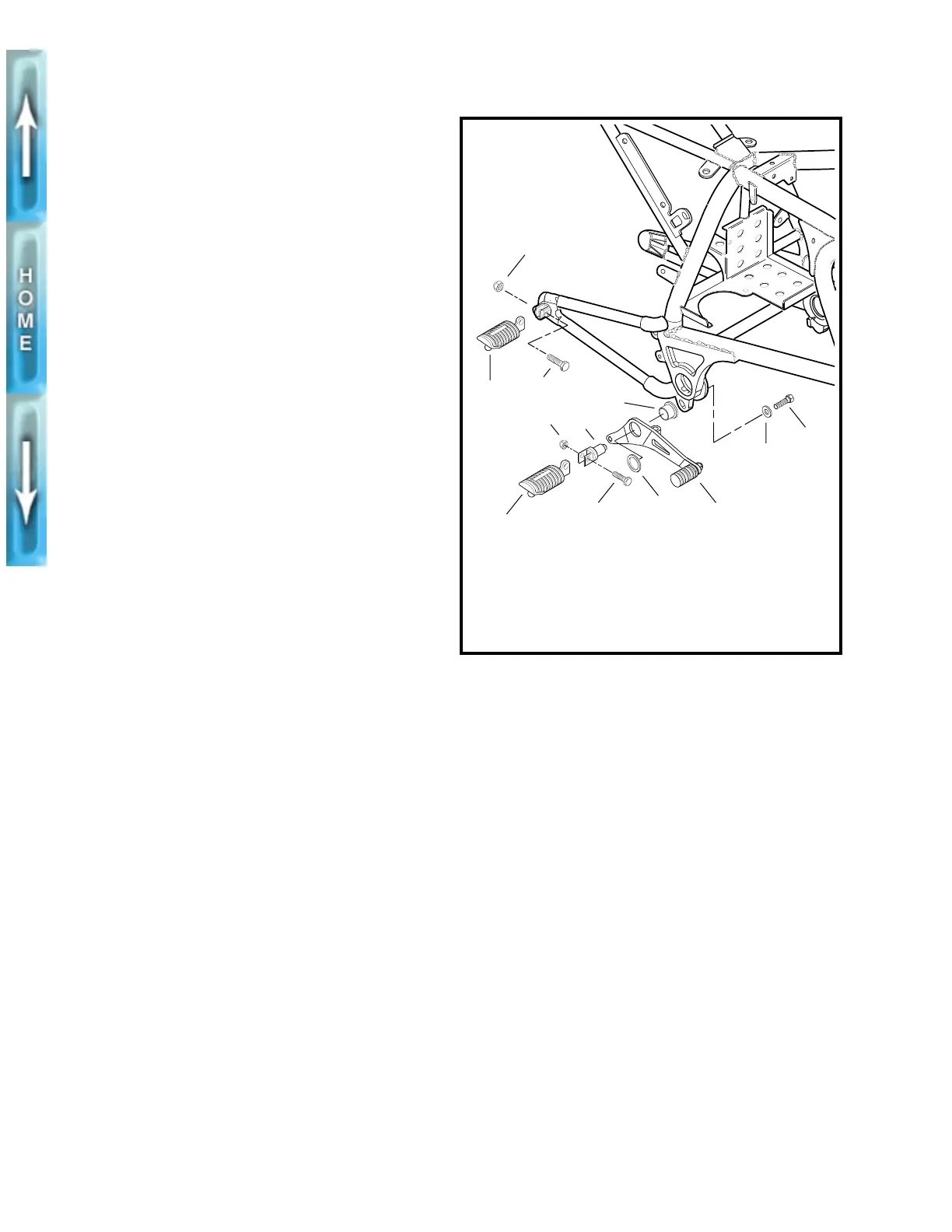

Figure 2-59. Footrests, Right Side
b0215x2x
1
1. Locknut (4)
2. Bolt (4)
3. Passenger footrest (2)
4. Rider footrest (2)
5. Footrest mount (2)
6. Thrust washer (2)
7. Rear brake pedal
8. Bushing (2)
9. Washer (2)
10. Bolt (2)
2
3
2
4
1
10
9
5
6
7
8
