Buell S1 Lightning User Manual

2-56
WINDSCREEN
REMOVAL
1. See Figure 2-64. Remove two screws and nylon washers
on each side.
2. Detach windscreen from center bracket on tachometer
cover. Remove windscreen.
3. If necessary, remove the three windscreen brackets.
a. See Figure 2-65. Remove center windscreen
bracket by removing nut on tachometer cover.
b. While holding headlamp, remove left and right head-
lamp adjusting screws (metric). Slide windscreen
brackets from between headlamp housing and
headlamp brackets.
INSTALLATION
1. If removed, install the three windscreen brackets.
a. See Figure 2-65. Install center bracket using nut.
b. Install left and right brackets between headlamp
housing and headlamp brackets. Tighten headlamp
adjusting screws (metric) 6-8 ft-lbs (8.1-10.8 Nm).
2. Align windscreen on right, left and center brackets.
Attach windscreen to center bracket velcro strip.
3. See Figure 2-64. Install two screws and nylon washers
on each side.

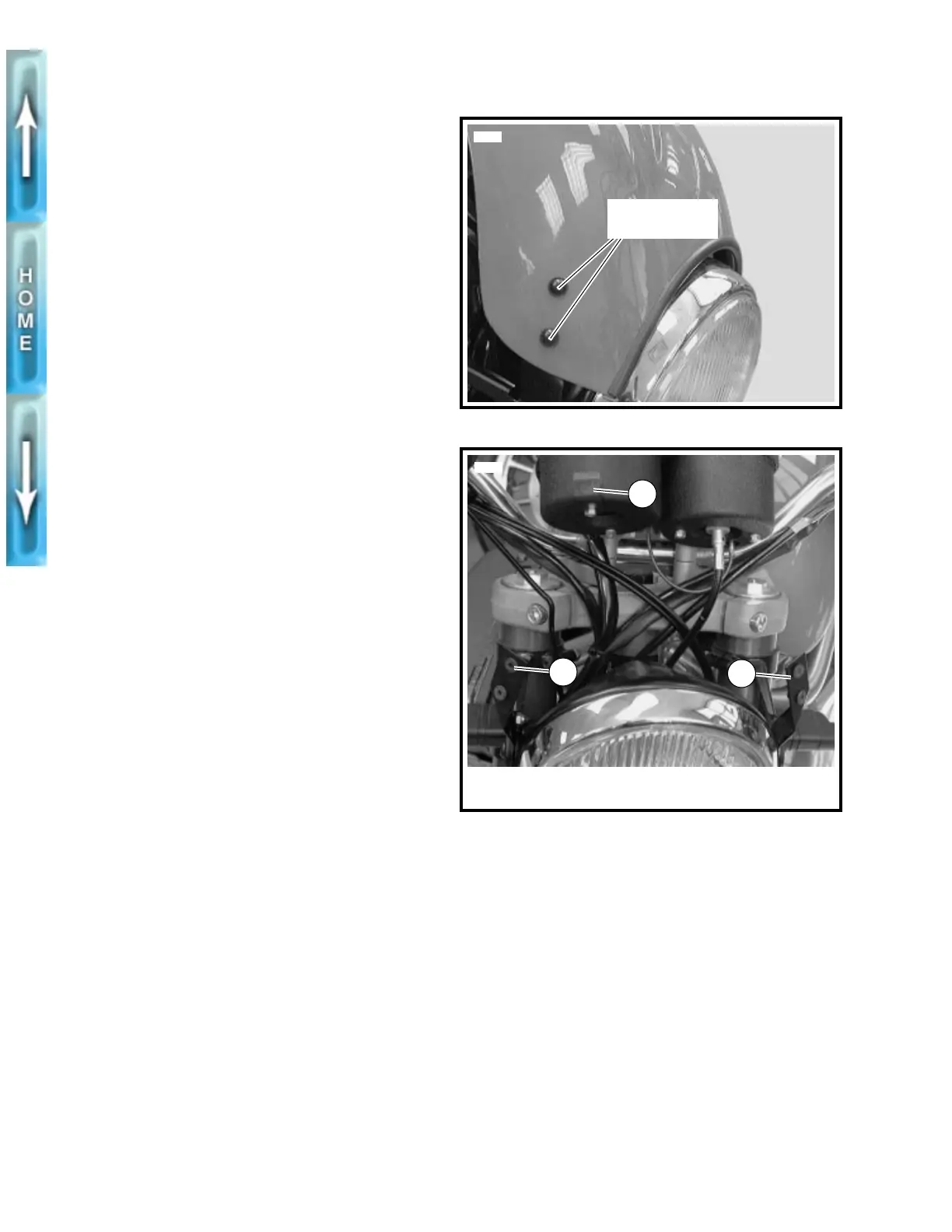

Figure 2-64. Windscreen, Right Side
Figure 2-65. Windscreen Brackets
5724
Screws and
nylon washers
5723
1
2
3
1. Center bracket with
nut and velcro strip
2. Right bracket
3. Left bracket

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
