Buell S1 Lightning - Page 239

5-13

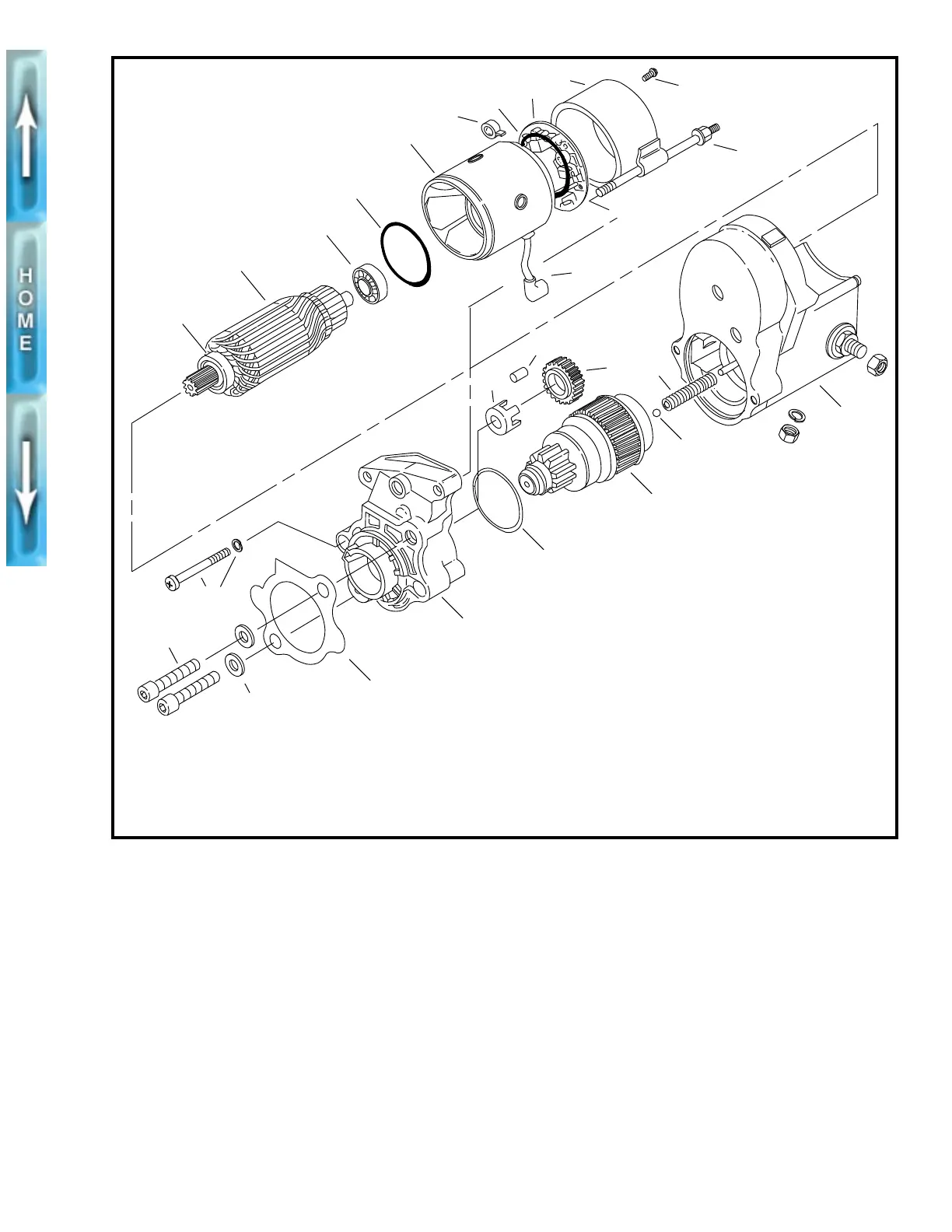

Figure 5-14. Starter Assembly
1. Thru-bolt (2)
2. End cover screw (2)
3. End cover
4. Brush holder
5. Brush spring (4)
6. Armature
7. Field frame
8. Armature bearings
9. Drive housing mounting bolt
and lockwasher (2)
10. Drive housing
11. Solenoid housing
12. Drive assembly/overrunning
clutch
13. Idler gear
14. Idler gear roller (5)
15. Idler gear bearing cage
16. O-ring
17. Return spring
18. Ball
19. Gasket
20. Washer (2)
21. Mounting bolt (2)
22. Field wire
23. O-ring (2)
b0004o5x
8
6
3
23
7
5
23
4
3
2
1
22
9
21
20
19
10
16
12
15
13
14
18
17
11
