6-17
CLEANING, INSPECTION
AND REPAIR
Thoroughly clean transmission compartment with cleaning
solvent. Blow parts dry with compressed air. Inspect parts to
determine if any must be replaced. Replace all parts that are
badly worn or damaged.
Neutral Indicator Switch
See Figure 6-16. The neutral indicator switch is threaded into
the transmission portion of the right crankcase half. See
NEUTRAL INDICATOR SWITCH in Section 7 for testing,
removal and installation procedures.

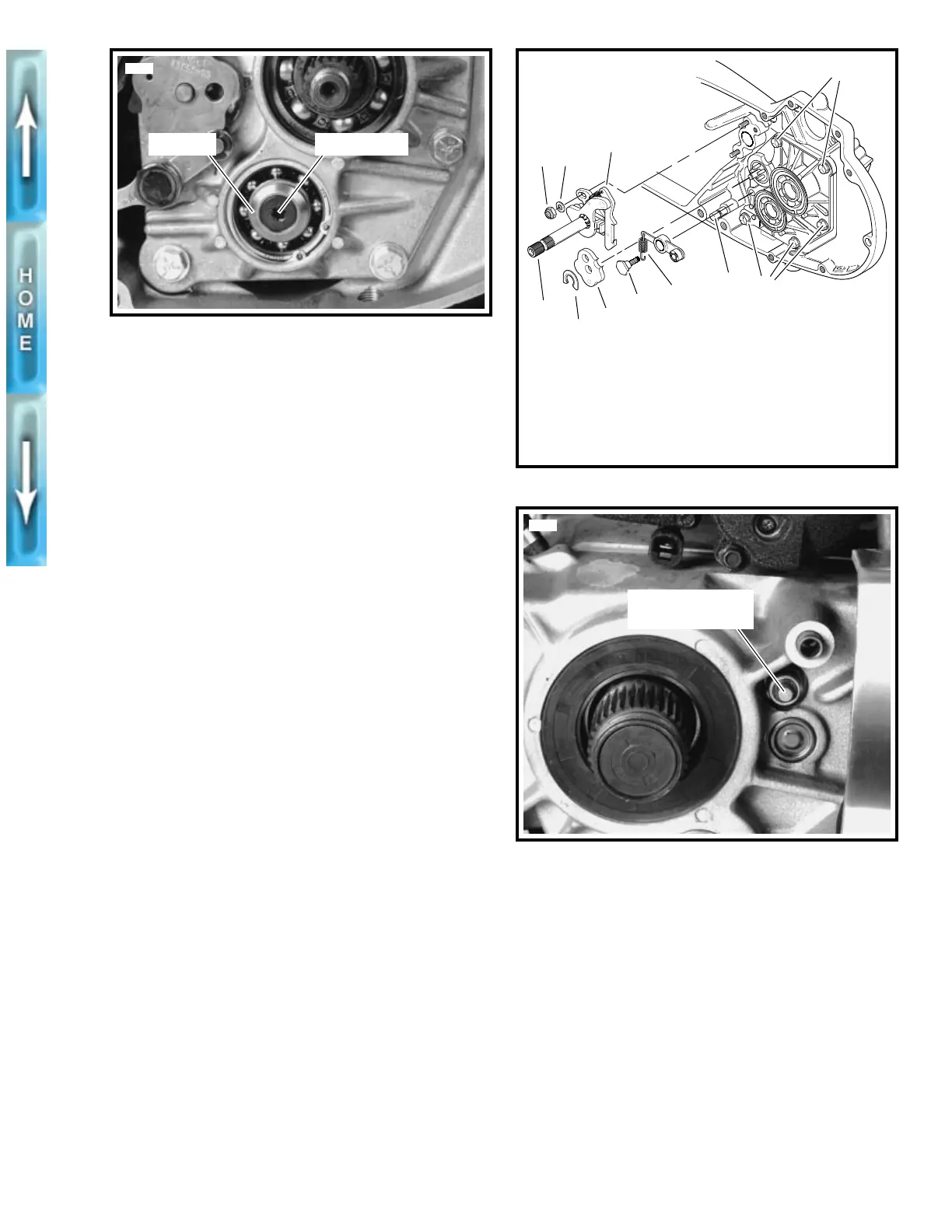

Figure 6-14. Countershaft Retainer
Retainer TORX screw
3557
Figure 6-15. Shifter Shaft Assembly
Figure 6-16. Neutral Indicator Switch
7. Bolt (5)
8. Washer (5)
9. Detent plate
10. Retaining ring
11. Washer (2)
b0153x6x
3 11
5
6
10
9
4
1
2
7,8
7,8
1. Spring
2. Post
3. Locknut (2)
4. Detent arm screw
5. Pawl
6. Shifter shaft assembly
Neutral indicator
switch
3553
