Buell S1 Lightning User Manual

7-28
AC Output Check
1. See Figure 7-25. Test AC output.
a. Disconnect voltage regulator wiring at connector
[P17].
b. Connect an AC voltmeter across both stator sockets.
c. Run the engine at 2000 RPM. The AC output should
be 38-52 volts AC.
2. Compare test results to specifications.
a. If the output is below specifications, charging prob-
lem could be a faulty rotor or stator.
b. If output is good, charging problem might be faulty
regulator/rectifier. Replace as required.
3. Check the output again as described under Current and
Voltage Output Test.

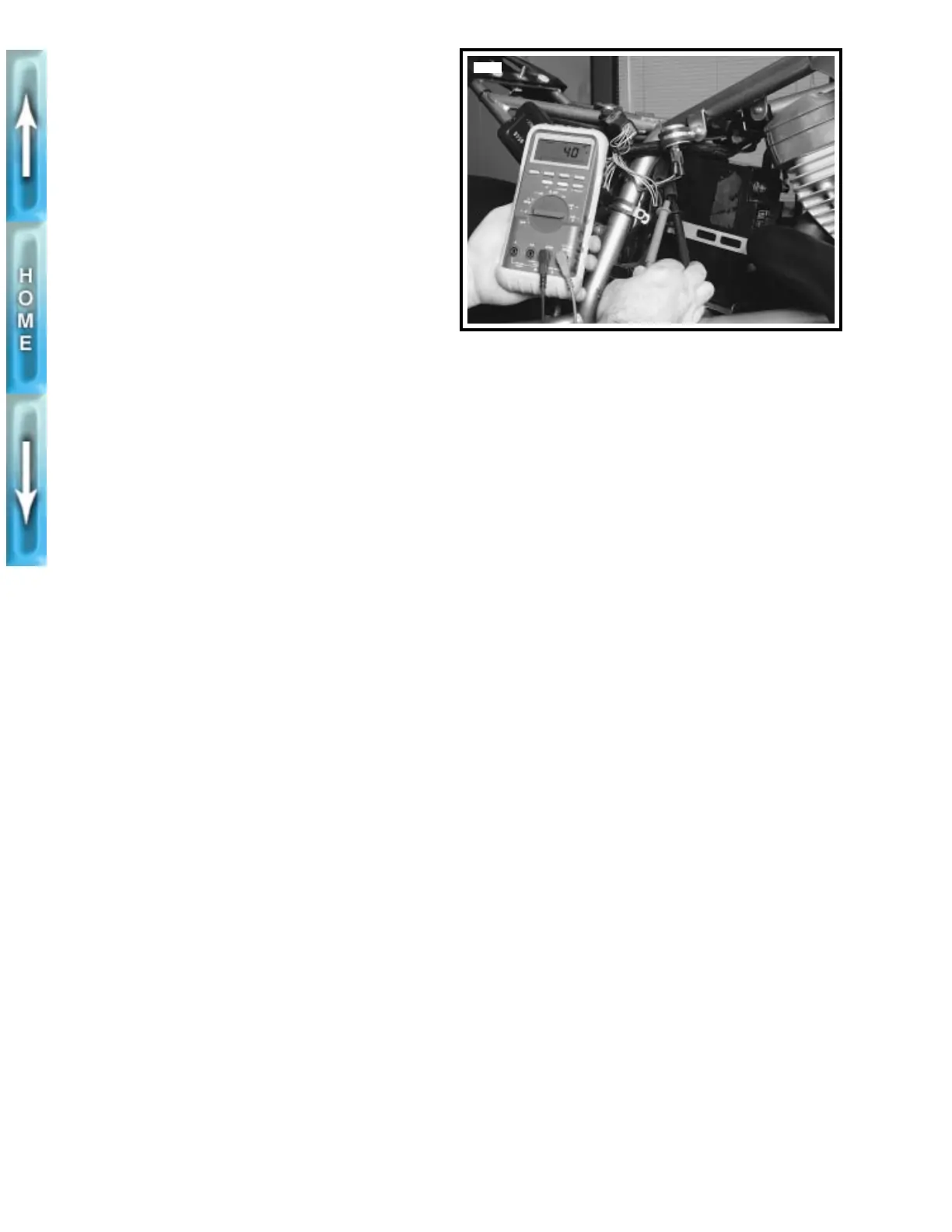

Figure 7-25. Check Stator AC Voltage Output
5685a

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
